Automatic mm / inch conversion · Core engineering specifications
| Overall dimensions | 3600 x 420 x 2000 mm | |
|---|---|---|
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
| Unit net weight | 280 kg | |
|---|---|---|
| Per-shelf static load capacity | 30 kg | |
| Total unit storage volume | 2.16 m³ | |
| Total book storage capacity | 480 standard A4 binders | |
| Door lock static load resistance | 50 kg | |
| Recommended maximum uniform load | 360 kg | |
| Product service life reference | 10 years | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
| Cabinet core material | 18mm medium density fiberboard | |
|---|---|---|
| Exterior surface finish | 0.6mm red cherry wood veneer with high-gloss polyurethane coating | |
| Upper door panel material | 5mm clear tempered glass | |
| Solid door panel material | 18mm engineered wood core with matching wood veneer | |
| Hardware material | Brushed zinc alloy pull handles and steel cam locks | |
| Shelf material | 25mm veneer-covered engineered wood | |
| Back panel material | 5mm hardboard backing | |
| Edge banding | 0.8mm solid wood edge trim | |
| Edge Band Thickness | 2 mm | |
| Primary Connector Specification | Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
Adjustment / rotation / tilt / mobility / storage features

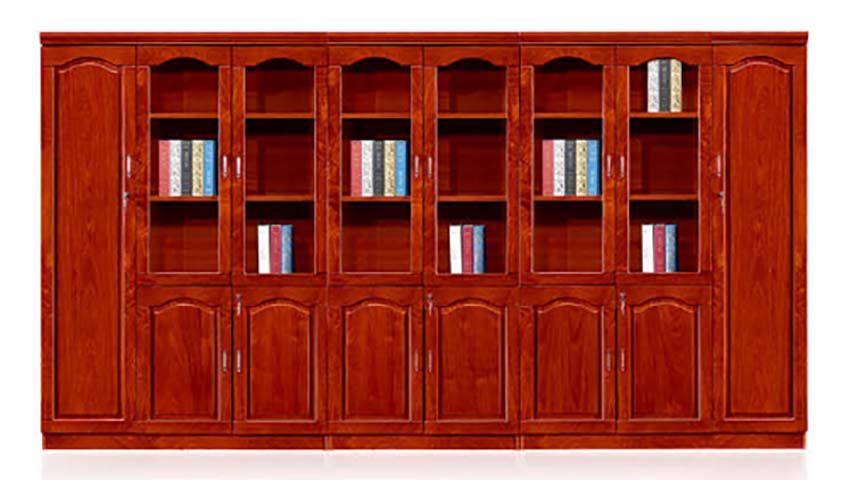

| Upper glass door storage | 6 double-door glazed bays with 3 adjustable open shelves each for display and quick-access document storage | |
|---|---|---|
| Lower enclosed storage | 6 double-door solid lower cabinets plus 2 full-height solid end cabinets for concealed supply and archive storage | |
| Door locking system | Keyed cam locks on all outer end doors and central lower doors to secure restricted-access stored items | |
| Shelf adjustability | Shelves in glass bays support 5 height positions in 32mm increments to accommodate varying file and book heights | |
| Wall anchoring provision | Pre-drilled rear anchor points for anti-tip fastening when installed in high-traffic office areas | |
| Door hinge function | 110-degree opening concealed European hinges allow full access to cabinet interiors without protruding hardware | |
| Leveling adjustment | 4 adjustable feet at base corners compensate for uneven floor surfaces to keep cabinet stable | |
| Cable / Vent Opening Reference | If fitted, 80 mm diameter |
Verified carton / gross weight / assembly / loading data
| Number of shipping packages | 4 | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
| Executive office use | Suitable for placement behind executive desks to store reference books, awards and archived documents | |
|---|---|---|
| Conference room use | Installed along meeting room walls to store meeting materials, presentation supplies and corporate records | |
| Legal/finance office use | Ideal for professional offices requiring locked storage for confidential files and reference archives | |
| Library reference area use | Used in institutional reference areas to display public collections and store back-stock materials | |
| Installation placement requirement | Positioned against load-bearing interior walls with 100mm rear clearance for air circulation and cable routing | |
| Matching furniture coordination | Pairs with traditional red wood veneer executive desks and meeting tables for cohesive office aesthetic |
EU Market Access Requirements* EN Standards
| EN 14749:2016 | Applicable for safety and strength requirements for domestic and office storage furniture | |
|---|---|---|
| EN 12521:2015 | Applicable for strength, durability and stability requirements for commercial office furniture | |
| EN 13986:2004 | Applicable for wood-based panel performance requirements for structural furniture use |
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.9 |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | Applicable for general technical requirements of wooden office furniture for finished product acceptance | |
|---|---|---|
| GB 18584-2001 | Applicable for formaldehyde emission limits for wood-based panel furniture indoor air quality | |
| GB/T 4893.4-2013 | Applicable for surface coating abrasion resistance test for veneered furniture surfaces |
This product must meet the following technical requirements: 1. GB/T 3324-2017: Applicable for general technical requirements of wooden office furniture for finished product acceptance; 2. GB 18584-2001: Applicable for formaldehyde emission limits for wood-based panel furniture indoor air quality; 3. GB/T 4893.4-2013: Applicable for surface coating abrasion resistance test for veneered furniture surfaces; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
