PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	3600 × 380 × 2000 mm
Overall unit dimensions	3600 x 380 x 2000 mm
Individual bay width	450 mm
Upper glass door section height	1200 mm
Lower solid door section height	800 mm
Adjustable shelf spacing (upper section)	330 mm
Shelf thickness	20 mm
Carcass panel thickness	20 mm
Back panel thickness	9 mm
Door panel thickness (solid lower doors)	20 mm
Clear shelf depth	350 mm
Glass panel thickness (upper doors)	5 mm
Plinth base height	80 mm
Door / Drawer Front Thickness	22 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total unit weight	195 kg
Per-shelf static load capacity (upper section)	30 kg
Total unit storage capacity	540 kg
Recommended maximum loaded weight per bay	70 kg
Hinge open-close cycle rating	80000 cycles
Drawer slide load rating (if fitted internally)	25 kg
Finish scratch resistance rating	2H pencil hardness
Wall anti-tip requirement	2 attachment points
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Carcass frame and panels	Solid rubber wood core with mahogany wood veneer, 7-step lacquer finish
Upper door panels	5mm clear tempered glass set in solid wood frames
Lower door panels	20mm thick solid wood raised-panel construction, matched mahogany veneer
Adjustable shelves	20mm thick veneered engineered wood with edge banding
Back panel	9mm thick MDF with matching wood veneer
Door hardware	Zinc alloy antique brass drop-style pull handles, adjustable steel hinges
Base plinth	Solid wood frame with integrated adjustable leveling glides
Edge banding	1mm thick PVC edge banding matching veneer finish
Shelf supports	Metal shelf pegs with 32mm system hole spacing
Edge Band Thickness	2 mm
Primary Connector Specification	Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Upper compartment access	6 pairs of hinged glass doors with 110-degree opening angle
Lower compartment access	8 pairs of hinged solid raised-panel doors with 110-degree opening angle
Shelf adjustability	3 adjustable shelves per upper bay, 1 fixed shelf per lower bay
Door hinge adjustment	3-way adjustable hinges for door alignment
Leveling function	Integrated adjustable glides at base corners
Anti-tip safety	Wall anchor brackets included for securing unit to wall studs
Modular expansion capability	Matching bays can be connected side-by-side to extend wall coverage
Storage zoning	Open glass-front display/document storage upper, closed concealed storage lower
Cable / Vent Opening Reference	If fitted, 80 mm diameter

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive office backdrop	Installed behind executive desks to store reference books, document binders, and decorative items
Open-plan office document storage zone	Arranged along walls in administrative areas to centralize shared document storage
Conference room reference storage	Placed along conference room walls to store meeting materials, reference documents, and awards
Law/finance firm office storage	Used in professional services offices to store case files, legal volumes, and archival materials
Government/institutional office storage	Suitable for formal public sector offices requiring durable, traditional wood storage furniture
Matching executive suite configuration	Paired with matching traditional wood executive desks, conference tables, and side cabinets

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 14073-2:2004	Office storage furniture safety requirements, applicable to structural stability verification
EN 12150-1:2015	Toughened soda lime silicate glass for building use, applicable to door glass panels
EN 717-1:2004	Formaldehyde emission determination for wood-based panels, applicable to panel material checks

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to dimensional and structural quality checks
GB/T 4893.1-2021	Surface wear resistance test for furniture surfaces, applicable to lacquered finish verification
GB 18584-2001	Formaldehyde emission limit for wooden furniture, mandatory for indoor office furniture safety

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to dimensional and structural quality checks;
2. GB/T 4893.1-2021: Surface wear resistance test for furniture surfaces, applicable to lacquered finish verification;
3. GB 18584-2001: Formaldehyde emission limit for wooden furniture, mandatory for indoor office furniture safety;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OBC-TRAD-8BAY-MAH-2400H

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OBC-TRAD-8BAY-MAH-2400H

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OBC-TRAD-8BAY-MAH-2400HOpen Export Tool

Quick Actions

Post an RFQ

Product Description

This traditional floor-standing multi-bay office bookcase delivers formal, executive-style storage tailored to professional workspace needs, with a cohesive mahogany finish that pairs seamlessly with matching traditional wood office furnishings. Visually, the unit is divided into two distinct horizontal sections: a 1200mm tall upper zone framed by clear tempered glass doors, and an 800mm tall lower zone fitted with solid raised-panel wood doors, creating a balanced, classic silhouette that works as a polished backdrop or wall-mounted storage feature. Built on a solid rubber wood core frame, the bookcase uses mahogany wood veneer across all visible panels finished with a 7-step lacquer process that achieves 2H pencil hardness scratch resistance. The 5mm thick tempered glass upper door panels are set in solid wood frames, while lower doors use 20mm thick raised solid wood construction matched to the mahogany veneer. Adjustable shelves in the upper section are 20mm thick veneered engineered wood with 1mm color-matched PVC edge banding, supported by metal pegs on a 32mm system hole grid; the 9mm thick back panel uses MDF with matching veneer. Zinc alloy antique brass drop-style pulls and 3-way adjustable steel hinges rated for 80,000 open-close cycles serve as door hardware, while the solid wood base plinth includes integrated adjustable leveling glides. The upper glass doors and lower solid doors both open to a 110-degree angle, with 3 adjustable shelves per upper bay offering 330mm spacing options and 30kg per-shelf static load capacity, and 1 fixed shelf per lower bay supporting enclosed storage. Wall anchor brackets are included for anti-tip safety, and matching bays can be connected side-by-side for modular expansion to extend wall coverage; the total unit holds a maximum 540kg of stored material, with a 70kg maximum loaded weight per individual bay. The 3600mm wide, 2000mm tall unit fits a range of formal spaces: it works as executive office backdrop storage for reference books, binders and display pieces, wall-mounted shared storage in open-plan administrative zones, conference room storage for meeting materials and awards, secure file storage for law and finance firm case documents, and durable formal storage for government and institutional offices. Procurement teams should note the unit ships split across cartons, with 40 minutes of assembly required per set, and is compatible with coordinating traditional wood desks, conference tables and side cabinets for full suite configuration.

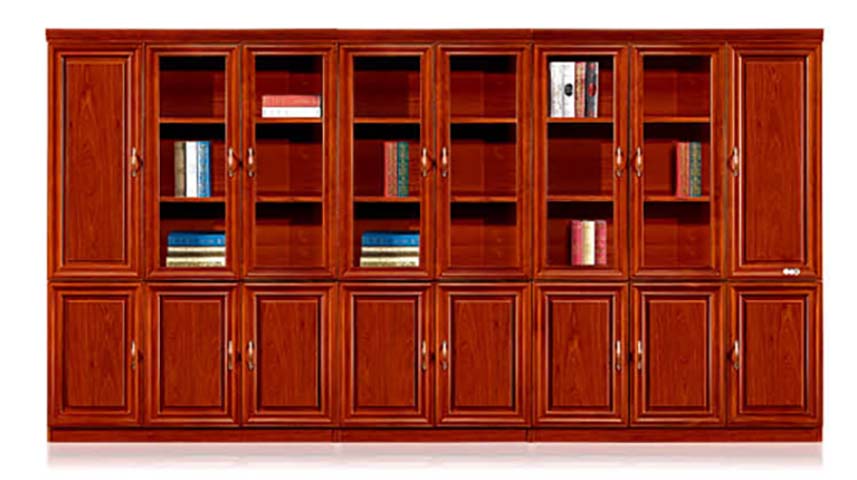

Traditional Multi-Bay Mahogany Finish Office Bookcase with Glass Upper Doors and Solid Lower Storage Specifications
