Automatic mm / inch conversion · Core engineering specifications

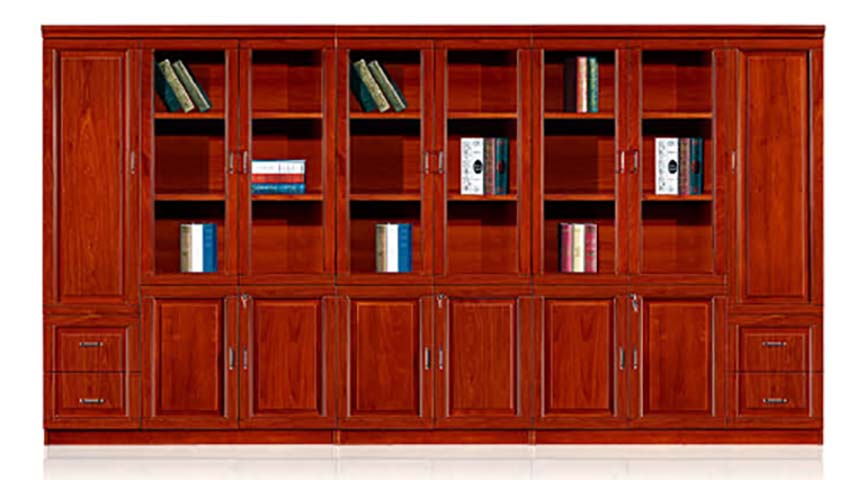

| Overall unit dimensions | 3600 x 440 x 2200 mm | |
|---|---|---|
| Side solid door section width (per left/right end) | 400 mm | |
| Glass display bay width (per 2-door unit, 3 total) | 800 mm | |
| Lower solid door bay width (per 2-door unit, 3 total) | 800 mm | |
| Side drawer stack dimensions (per left/right end) | 400 x 420 x 600 mm | |
| Glass door height (upper section) | 1200 mm | |
| Lower solid door height | 700 mm | |
| Adjustable shelf depth (all bays) | 390 mm | |
| Individual shelf tier spacing (glass bays) | 350 mm | |
| Top trim overhang thickness | 50 mm | |
| Base plinth height | 100 mm | |
| Drawer internal height (per drawer) | 250 mm | |
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
| Unit total net weight | 280 kg | |
|---|---|---|
| Uniform shelf static load rating (per shelf) | 30 kg | |
| Drawer static load rating (per drawer) | 25 kg | |
| Total document storage capacity | 1.44 cubic m | |
| Recommended maximum total unit load | 480 kg | |
| Keyed lock security retention load | 100 kg | |
| Anti-tip kit rated static pull resistance | 500 N | |
| Finish abrasion resistance rating | 1000 cycles | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
| Carcass panel material | 18mm E1 grade MDF core with red walnut wood veneer | |
|---|---|---|
| Upper glass door panel | 5mm clear tempered glass with solid wood framed edge | |
| Lower solid door panel | 25mm engineered wood core with raised solid wood veneer framed panel | |
| Back panel material | 9mm MDF with matching wood veneer finish | |
| Shelf material | 18mm veneered MDF with 1mm PVC edge banding | |
| Hardware (hinges, locks, pulls) | Brushed nickel finished zinc alloy | |
| Drawer slide hardware | 3-section full extension ball bearing steel slides | |
| Surface finish | Low-VOC clear lacquer topcoat with satin sheen | |
| Base plinth material | 25mm solid wood composite with veneer wrap | |
| Edge banding | 1mm thick matching wood grain PVC on all exposed panel edges | |
| Adjustable shelf supports | Nickel-plated steel shelf pins with 5 position holes per bay | |
| Edge Band Thickness | 2 mm |
Adjustment / rotation / tilt / mobility / storage features
| Upper glass door operation | Hinged swing doors with 110 degree opening angle, magnetic catch retention | |
|---|---|---|
| Lower solid door locking | Keyed cam locks on each lower door set, 2 keys per lock | |
| Shelf adjustability | 3 adjustable shelves per glass bay, 50mm height increment positions | |
| Side drawer operation | 2 stacked full-extension drawers per side, soft-close damping on premium configurations | |
| Anti-tip installation | 2 wall anchor straps included for securing unit to finished wall surfaces | |
| End solid door access | Full-height hinged solid doors on left and right ends for concealed tall item storage | |
| Leveling adjustment | 4 adjustable foot glides at base corners for uneven floor compensation | |
| Lock keying option | Master key system compatible for multi-cabinet office installations | |
| Cable / Vent Opening Reference | If fitted, 80 mm diameter |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
| Executive office back wall installation | Placed behind executive desk as formal storage and display backdrop for books and awards | |
|---|---|---|
| Corporate boardroom document storage | Used for secure storage of meeting materials, corporate records and reference books | |
| Law firm/government office reference library | Stores legal volumes, official documents and archival materials in high-stature professional settings | |
| High-end home office library storage | Installed in luxury residential studies for book and personal document storage | |
| Recommended matching furniture set | Paired with matching red walnut executive desk, meeting table and leather office seating for unified office aesthetic | |
| Weight distribution requirement | Positioned on level commercial-grade flooring with minimum 5kPa floor load rating |
EU Market Access Requirements* EN Standards
| EN 14749:2016 | Domestic and kitchen storage units and worktops, safety requirements applicable to cabinet stability | |
|---|---|---|
| EN 12521:2015 | Furniture for non-domestic use, storage units strength, durability and stability requirements | |
| EN 13722:2004 | Furniture test methods for strength and durability of moving parts including doors and drawers |
US and Canada office-furniture standards
| ANSI/BIFMA X5.9-2019 | Storage units for office use, applicable to load, stability and durability performance requirements |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to cabinet structural integrity | |
|---|---|---|
| GB 18584-2001 | Indoor decoration material limit of harmful substances for wood furniture | |
| GB/T 4897.3-2003 | Particleboard for furniture use, applicable to structural core material requirements | |
| GB/T 10357.5-2011 | Furniture mechanical performance test for storage units, applicable to shelf and drawer load testing |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to cabinet structural integrity; 2. GB 18584-2001: Indoor decoration material limit of harmful substances for wood furniture; 3. GB/T 4897.3-2003: Particleboard for furniture use, applicable to structural core material requirements; 4. GB/T 10357.5-2011: Furniture mechanical performance test for storage units, applicable to shelf and drawer load testing; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
