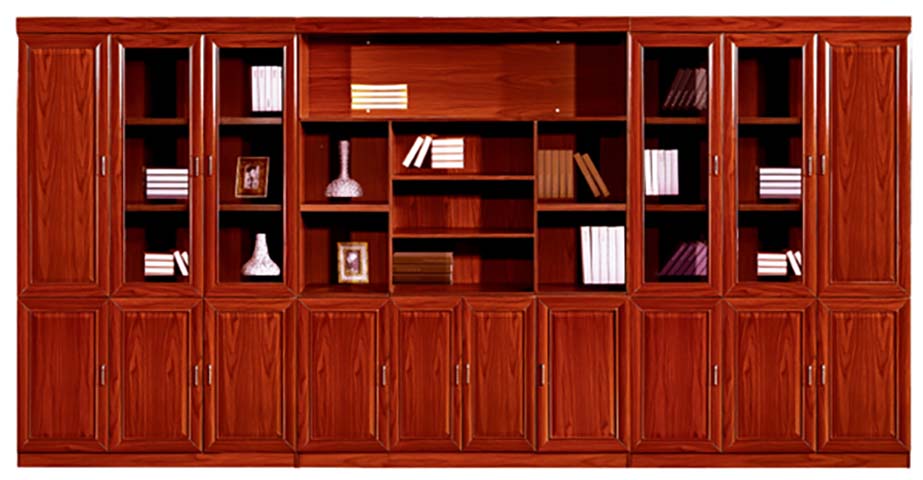

Product supplierWalnut Veneer Large Executive Office Bookcase with Glass and Solid Doors, 18 mm thick E1 grade MDF panel with walnut wood veneer
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 4200 × 420 × 2200 mm | |
|---|---|---|
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total unit net weight | 380 kg | |
|---|---|---|
| Per adjustable shelf static load capacity | 30 kg | |
| Recommended maximum load per closed storage compartment | 50 kg | |
| Usable storage volume | 2.8 cbm | |
| Door hinge cycle rating | 50000 cycles | |
| Recommended number of users | 10 | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Cabinet carcass | 18 mm thick E1 grade MDF panel with walnut wood veneer | |
|---|---|---|
| Glass door panels | 5 mm clear tempered glass with polished edges | |
| Solid door panels | 18 mm thick MDF with walnut veneer, raised panel molding | |
| Adjustable shelves | 25 mm thick particleboard with walnut veneer, metal shelf pins | |
| Top crown and bottom plinth | MDF with matched walnut veneer, glued and dowel joined | |
| Door handles | Brushed chrome plated zinc alloy, vertical bar style | |
| Door hinges | Cold-rolled steel soft-close concealed hinges, nickel plated | |
| Shelf support pins | Nickel plated steel, 5 mm diameter | |
| Back panel | 9 mm thick hardboard with walnut veneer match | |
| Edge Band Thickness | 2 mm | |
| Primary Connector Specification | Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Storage layout | 8 upper glass-door/open display bays, 11 lower solid-door closed compartments | |
|---|---|---|
| Shelf adjustment | 3 adjustable shelves per bay, 32 mm pitch hole positions | |
| Door operation | Hinged swing doors, 110 degree opening angle | |
| Display function | Central open tiered shelves for decor, awards and frequently referenced books | |
| Concealed storage | Lower closed compartments secure documents, office supplies and archived files | |
| Cable management | Pre-drilled 60 mm cable access port on central upper back panel | |
| Structural assembly | Cam-lock and dowel joint construction for on-site assembly | |
| Leveling function | Adjustable plastic feet at base, 15 mm adjustment range | |
| Cable / Vent Opening Reference | If fitted, 80 mm diameter |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive private office | Provides display and storage for books, awards and official documents behind executive desk | |
|---|---|---|
| Boardroom perimeter | Installed along meeting room walls to store meeting materials and corporate decor | |
| Law/financial firm reception | Displays firm credentials, reference books and client-facing materials | |
| Government administrative office | Secure storage for official documents, archives and office supplies | |
| University president office | Combines book storage and award display for senior academic administration spaces | |
| Corporate management floor | Shared high-capacity storage for executive team reference materials and records |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 14073-2:2004 | Office storage furniture safety requirements, applicable for structural stability | |
|---|---|---|
| EN 12720:2009+A1:2013 | Furniture surface resistance to cold liquids, applicable for veneer finish durability | |
| EN 312:2010 | Particleboard performance requirements, applicable for load-bearing panel components |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.9-2019 | Storage furniture safety and performance standard, applicable for load and stability testing | |
|---|---|---|
| ANSI/BIFMA e3-2019 | Furniture sustainability standard, applicable for material emissions and corporate compliance |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for panel quality and dimensional tolerances | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limit for wood-based panels, required for indoor office air quality compliance | |
| GB/T 4897.3-2003 | Particleboard for furniture use, applicable for shelf and carcass panel performance |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for panel quality and dimensional tolerances; 2. GB 18580-2017: Formaldehyde emission limit for wood-based panels, required for indoor office air quality compliance; 3. GB/T 4897.3-2003: Particleboard for furniture use, applicable for shelf and carcass panel performance; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
