| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Primary Component Thickness | 40 mm according to load-bearing role | |
|---|---|---|
| Hardware / Moving-part Clearance | 5 mm operating clearance |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Net weight | 32 kg | |
|---|---|---|
| Top static load capacity | 50 kg | |
| Total distributed storage load | 50 kg | |
| Drawer slide durability | 50,000 open/close cycles | |
| Drawer slide rated load per pair | 25 kg | |
| Combination lock code quantity | 1,000 codes | |
| Recommended occupant use | 1 person per pedestal | |
| Warranty period | 5 years | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Drawer fronts | Light oak-look engineered board with a smooth matte woodgrain laminate face | |
|---|---|---|
| Side panels and rear carcass | White or light-grey engineered board with a smooth melamine-type finish | |
| Top panel | White smooth panel with square edge and visible overhang | |
| Panel board thickness | 18 mm carcass panels and 25 mm top panel | |
| Drawer boxes | 15 mm smooth board or steel drawer boxes with side-mounted slides | |
| Drawer slides | Side-mounted full-extension ball-bearing slides, 450 mm nominal slide length | |
| Integrated lock | Black three-digit mechanical combination lock with silver operating tab | |
| Support feet | Four white cylindrical polymer or powder-coated feet, 30 mm high |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.

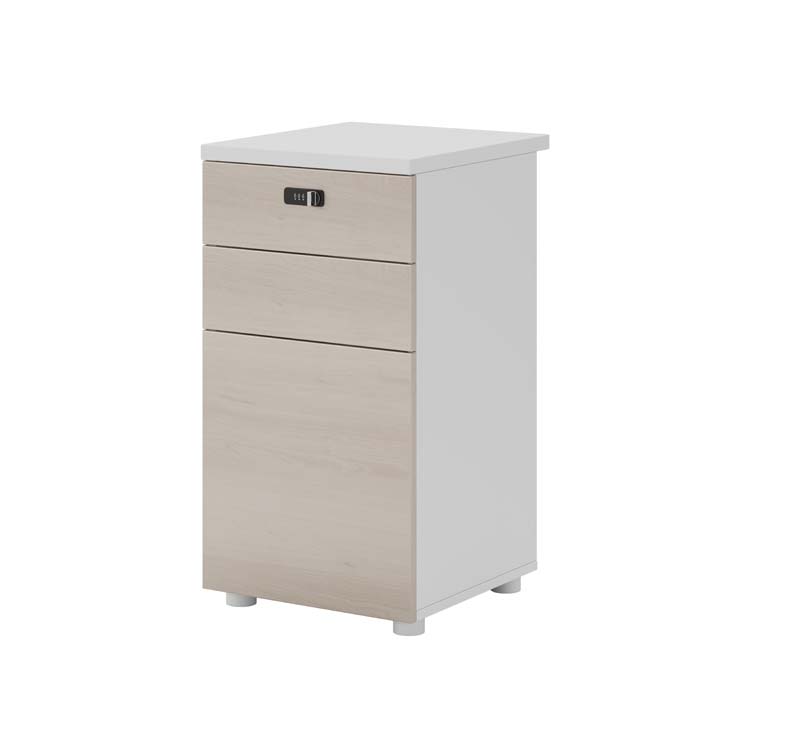

| Three-tier storage and locking | Three vertically stacked handleless drawers provide separate shallow and deep storage, while the visible three-digit combination lock secures the drawer system for personal office use | |
|---|---|---|
| Combination lock escutcheon size | 80 x 28 mm | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Export carton dimensions | 470 x 570 x 730 mm | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Office workstation storage | Place beside or beneath a 760 mm high desk for personal documents, stationery and files; the 680 mm body leaves a low support-foot profile without visible casters. | |
|---|---|---|
| Administrative and reception workspace | Use at reception, administrative or hot-desk support areas where lockable three-drawer storage is needed and a light wood-and-white finish is specified. |
EU Market Access Requirements* EN Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.9 |
|---|
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
