Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall cabinet size | 400 x 550 x 600 mm | |
|---|---|---|
| Top stationery drawer front height | 180 mm | |
| Lower file drawer front height | 360 mm | |
| Top overhang | 20 mm | |
| Side panel thickness | 18 mm | |
| Drawer front thickness | 18 mm | |
| Back panel thickness | 9 mm | |
| Top panel thickness | 25 mm | |
| Lower file drawer internal size | 340 x 480 x 275 mm | |
| Upper stationery drawer internal size | 340 x 480 x 110 mm | |
| Caster diameter | 57 mm | |
| Caster mounting height | 75 mm | |
| Under-desk fit height | 600 mm | |
| File rail usable width | 340 mm | |
| Drawer gap reveal | 2 mm | |
| Carcass Panel Thickness | 25 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total cabinet static load | 50 kg | |
|---|---|---|
| Top drawer load | 15 kg | |
| Lower file drawer load | 30 kg | |
| Top surface load | 30 kg | |
| Net weight | 13.5 kg | |
| Hanging-file capacity | 50 A4 folders | |
| Stationery drawer capacity | 12 L | |
| Filing drawer capacity | 45 L | |
| Drawer slide cycle rating | 50,000 cycles | |
| Caster rolling durability | 20,000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Carcass panels | 18 mm wood-based board with light oak melamine on visible fronts | |
|---|---|---|
| Side panel | Smooth white melamine-finished panel with flush corner joint | |
| Top panel | 25 mm light oak-grain melamine board with eased edge | |
| Drawer fronts | 18 mm flush light oak-grain melamine panels with 2 mm reveal | |
| Edge protection | 2 mm ABS edge banding on exposed work edges | |
| Back panel | 9 mm melamine or hardboard rear closure panel | |
| Drawer runners | Side-mounted metal runners with ball-bearing carriage | |
| Combination lock | Black and silver three-position mechanical combination lock with turn knob |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.

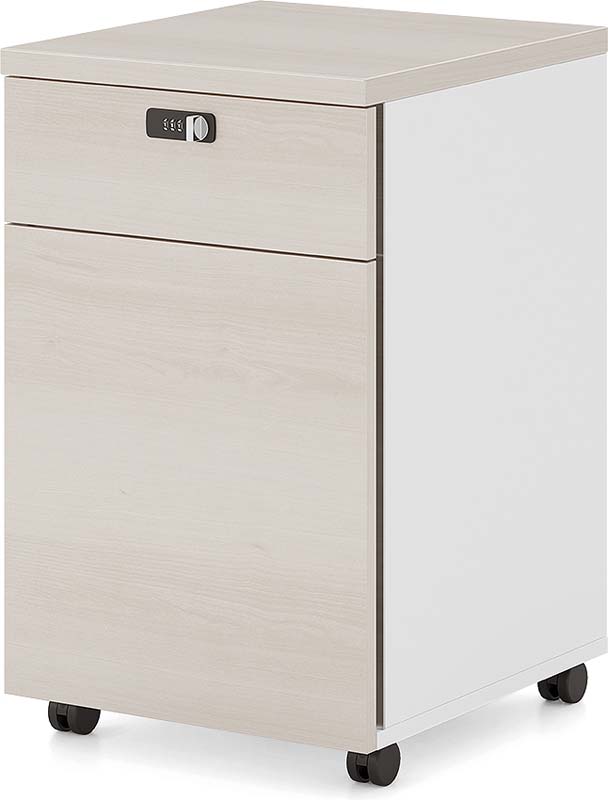

| Drawer arrangement | One shallow stationery drawer above one tall hanging-file drawer for office documents. | |
|---|---|---|
| Centralized locking | Mechanical combination lock on the upper front secures both drawers through a linked lock bar. | |
| Mobile operation | Four swivel twin-wheel casters allow repositioning beneath desks without lifting a loaded cabinet. |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
EU Market Access Requirements* EN Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.9 |
|---|
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
