Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall cabinet dimensions | 430 x 500 x 650 mm | |
|---|---|---|
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Net weight | 28 kg | |
|---|---|---|
| Top surface static load | 40 kg | |
| Load per drawer | 15 kg | |
| Total loaded cabinet capacity | 70 kg | |
| Drawer slide rated service life | 50000 open-close cycles | |
| Caster rolling service life | 20000 travel cycles | |
| Recommended maximum filing load in bottom drawer | 20 kg | |
| Warranty period | 5 years | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Carcass panels | 18 mm melamine-faced engineered wood with sealed edges | |
|---|---|---|
| Top slab | 25 mm engineered-wood panel with matching wood-grain melamine finish | |
| Drawer fronts | Melamine-faced wood-grain panels with flush black reveal lines | |
| Outer side panel | Smooth graphite-gray panel with square edge profile | |
| Drawer runners | Side-mounted metal ball-bearing slides rated for full-width office drawers | |
| Combination lock | Black recessed housing with three-digit dial, silver turn knob, and lock bar | |
| Casters | Four black nylon twin-wheel swivel casters on steel or nylon stems | |
| Base protection | Black perimeter kick rail with impact-resistant polymer or laminated edge |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.

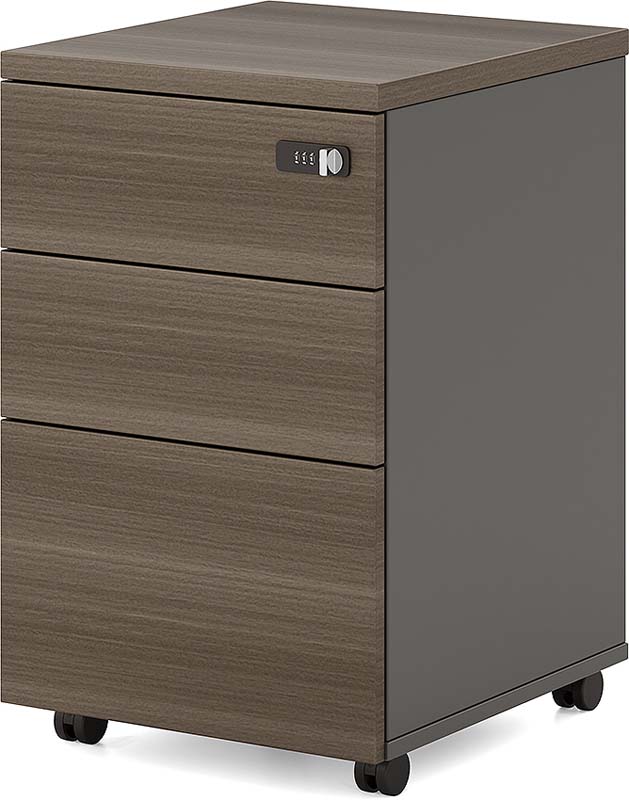

| Three-drawer storage and mobility | Three independently opening drawers provide 150 mm, 180 mm, and 250 mm front-height storage zones on four 50 mm swivel casters; the top three-digit combination lock secures the drawer group with a side lock bar, while the compact 650 mm height allows use under standard 760 mm office desks. | |
|---|---|---|
| Cable / Vent Opening Reference | If fitted, 80 mm diameter |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Office workstation storage | Fits beside or beneath standard desks for daily documents, stationery, and suspension files; its lockable drawers suit shared offices and assigned workstations. | |
|---|---|---|
| Administrative and filing areas | Supports reception, administration, and supervisory workpoints where documents must move between desk and reference area while remaining secured. |
EU Market Access Requirements* EN Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.9 |
|---|
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
