PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	400 × 300 × 1000 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight	30 kg
Top distributed load	30 kg
Internal shelf load per shelf	15 kg
Total stored-content load	45 kg
Suggested shelf count	3 shelves
Suggested shelf bay spacing	230 mm
Warranty period	3 years
Available color options	2 finishes visible
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Cabinet carcass	18 mm melamine-faced engineered wood panels with concealed vertical storage structure
Front door panel	Vertical wood-grain melamine surface on engineered-wood substrate
Exposed side panel	Smooth light gray melamine-faced engineered wood panel
Top panel	Wood-grain laminated engineered wood cap with dark edge banding
Edge protection	ABS or PVC edge banding on exposed top and panel edges
Back panel	5 mm melamine or hardboard back panel recessed into the carcass
Internal shelves	18 mm melamine-faced engineered wood shelves with metal shelf supports
Floor glides	Black circular plastic or nylon leveling glides with non-marking base

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Enclosed storage function	Hinged front panel provides access to a vertical compartment configured with 3 shelf levels and 45 kg total storage capacity
Floor leveling function	Four low-profile glides lift the cabinet 20 mm and allow minor leveling on carpet, tile, or wood floors
Space-saving placement function	The 300 x 400 mm footprint fits beside a desk, in a narrow alcove, or against a side wall while maintaining 250 mm internal storage depth

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Inner packing	5-layer corrugated carton with foam corner protectors and hardware box
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Office placement	Place beside a workstation or in a private office for binders, documents, samples, and personal work items within a 300 x 400 mm floor footprint
Home or reception storage	Use in a study, bedroom corner, consulting room, or reception back area where a narrow enclosed cabinet keeps stored items hidden and the top available for display

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	ANSI/BIFMA X5.9 Storage Units

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · TNC-3004001000

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · TNC-3004001000

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · TNC-3004001000Open Export Tool

Quick Actions

Post an RFQ

Product Description

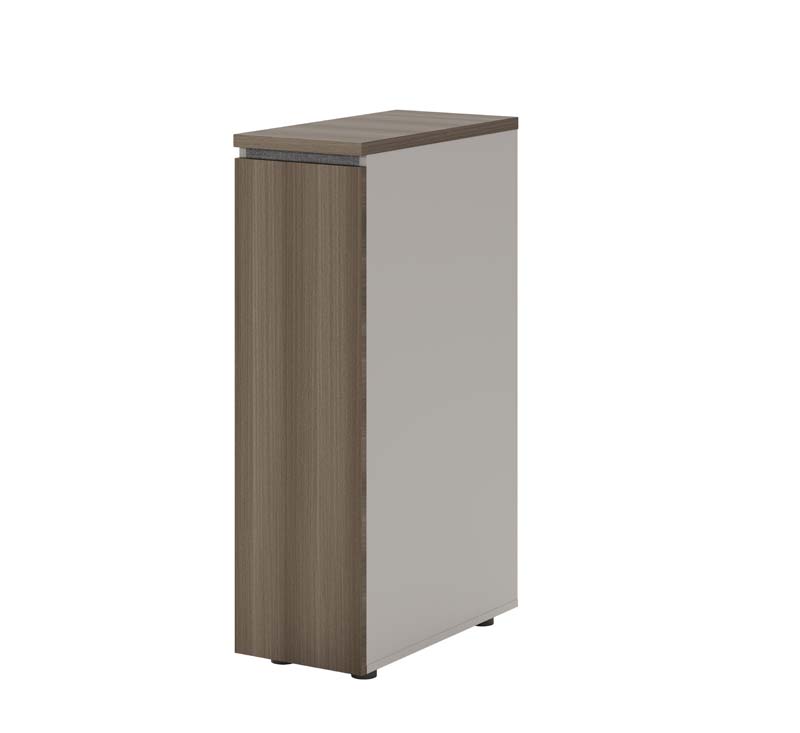

The Tall Narrow Storage Cabinet with Two-Tone Wood-Grain and Light Gray Finish, model TNC-3004001000, is a floor-standing, vertical enclosed storage unit offered without a brand label. Its tall, narrow form combines a wood-grain front and top with a smooth light gray exposed side, producing a restrained two-tone appearance suited to settings where storage should remain visually quiet. The hinged front panel opens to a concealed compartment arranged with three shelf levels, while the narrow cabinet body presents a compact vertical profile rather than a broad storage wall. Construction uses melamine-faced engineered wood panels for the carcass, shelves, door, and side, with an engineered-wood substrate under the door’s vertical wood-grain surface. The top is a wood-grain laminated cap finished with dark edge banding, and exposed top and panel edges receive ABS or PVC edge protection. The back panel is recessed into the carcass, and shelves rest on metal supports. Panel thickness is listed as 25 mm for the carcass and shelves, 22 mm for the door, and 9 mm for the back; supporting material details also describe 18 mm main panels and shelves with a 5 mm melamine or hardboard back. Black circular plastic or nylon leveling glides with non-marking bases complete the base. Practical storage is fully enclosed behind the hinged front, keeping binders, documents, samples, personal items, or household belongings out of view. The suggested layout uses three shelves with 230 mm bay spacing and 250 mm internal storage depth. Rated capacity is 15 kg per shelf, 45 kg for total stored content, and 30 kg distributed across the top. Four low-profile glides raise the cabinet 20 mm and allow minor leveling on carpet, tile, or wood floors. The 300 x 400 mm footprint supports placement beside a workstation or desk, inside a narrow alcove, along a side wall, or in a private office. It is also appropriate for a study, bedroom corner, consulting room, or reception back area, where the top can remain available for display. The cabinet weighs 30 kg net and carries a 3-year warranty. Procurement planning should allow for assembly, with a reference time of 40 minutes per set, and note packaging details that list one set across multiple cartons, foam corner protection, a hardware box, and a packaged gross weight reference of 100 kg per set.

Tall Narrow Storage Cabinet with Two-Tone Wood-Grain and Light Gray Finish
