PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	800 × 400 × 850 mm
Overall cabinet size	800 x 400 x 850 mm
Front opening width	760 mm
Door leaf width	380 mm per door
Door height	735 mm
Top overhang	20 mm front and side
Top panel thickness	25 mm
Carcass panel thickness	18 mm
Back panel thickness	9 mm
Adjustable shelf count	2 shelves
Shelf spacing	235 mm
Leveler foot height	30 mm
Leveler foot diameter	40 mm
Interior storage width	760 mm
Interior storage depth	360 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Shelf static load	30 kg per shelf
Top surface static load	50 kg
Overall cabinet static load	110 kg
File storage capacity	6 standard archive boxes per shelf
Binder capacity	60 A4 binders total
Recommended occupancy	1 cabinet per 4 workstations
Door hinge cycle rating	50,000 openings
Lock operating life	10,000 cycles
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Door panels	18 mm wood-grain laminated manufactured-wood panels with vertical grain
Side panels	18 mm light gray laminate panels with square edge construction
Top panel	25 mm wood-grain laminated board with dark gray underside trim
Back panel	9 mm recessed manufactured-wood or hardboard back in matching gray finish
Shelves	18 mm laminated board shelves with metal support pins
Edge banding	1.0 mm PVC edge banding on exposed door, top, and carcass edges
Support feet	4 black cylindrical polymer or rubber-tipped leveler feet
Central lock	Black mechanical combination lock with silver key-override cylinder and turn handle

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Central locking	Mechanical combination lock with key override secures both full-height doors at the center stile
Door operation	Two hinged doors swing open to expose a single shared storage compartment
Shelf adjustment	Two shelves mount on metal support pins with 32 mm vertical adjustment holes

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Office document storage	Place beside workstations or in a shared support area for locked A4 binders and archive boxes
Administrative and school storage	Use in administration offices, classrooms, or reception back areas for secure supplies and records

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.9

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · LOSC-800400850-2D-CL

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · LOSC-800400850-2D-CL

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · LOSC-800400850-2D-CLOpen Export Tool

Quick Actions

Post an RFQ

Product Description

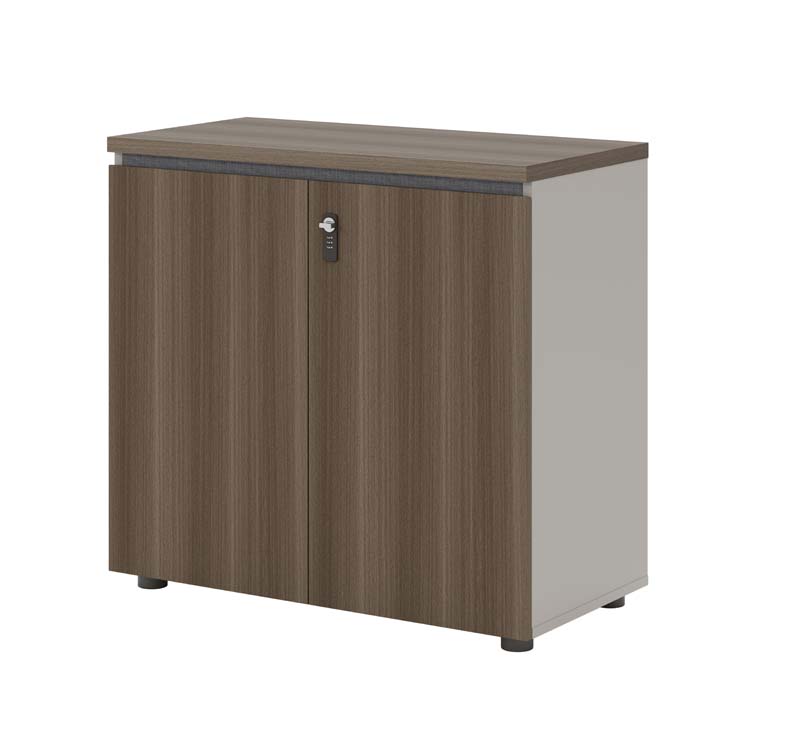

The Two-Door Lockable Low Office Storage Cabinet, model LOSC-800400850D-CL, offers a compact, enclosed storage solution with a balanced two-tone appearance. Its front doors and top use wood-grain laminated board with a vertical grain, while the side panels and recessed back are finished in light gray. Dark gray trim beneath the top adds a restrained accent, and four short black cylindrical leveler feet lift the cabinet slightly above the floor. The low rectangular form measures 800 mm wide, 400 mm deep, and 850 mm high, with a 20 mm front and side overhang on the 25 mm top. Two equal 380 mm hinged doors provide a 760 mm front opening and stand 735 mm high, creating a clean full-height facade with the central lock positioned on the center stile. Construction is based on laminated manufactured-wood panels. The doors, sides, and shelves are 18 mm thick, while the top is 25 mm thick and the back panel is 9 mm. Exposed door, top, and carcass edges are protected by 1.0 mm PVC edge banding, and square-edged side panels give the cabinet a straightforward office aesthetic. Shelves rest on metal support pins, and the black mechanical combination lock includes a silver key-override cylinder and turn handle. The four polymer or rubber-tipped feet help level the unit on the installed surface. Both doors are secured by the central lock, making the shared interior suitable for materials that require controlled access. When opened, the doors reveal one common compartment fitted with two adjustable shelves. The 32 mm vertical adjustment holes allow shelf positions to be changed for different file and supply heights. Each shelf holds six standard archive boxes, and the cabinet accommodates 60 A4 binders in total. Rated static loads are 30 kg per shelf, 50 kg on the top surface, and 110 kg for the overall cabinet. The hinges are rated for 50,000 openings, supporting regular daily use. This cabinet is designed for placement beside workstations or in shared office support areas for locked A4 binders, archive boxes, records, and general supplies. It is also appropriate for administration offices, classrooms, and reception back areas. For general office planning, the recommended allocation is one cabinet per four workstations.The reference packing information indicates split-carcass packaging; buyers should confirm final carton count, dimensions, and weight with the supplier at order placement. Freight planning may use the stated packaging volume of 0.65 cubic meter per set. As a lockable laminate cabinet rather than a freestanding architectural partition, placement should allow clear door swing and convenient access for authorized users.

Two-Door Lockable Low Office Storage Cabinet
