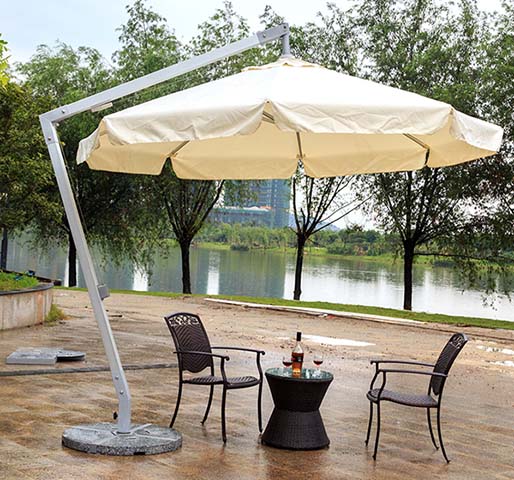

Name: Cream Octagonal Cantilever Patio Umbrella with Round Granite Base
Brand: JINQIU
SKU: 0VHCUS

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	3000 × 3000 × 2610 mm
Canopy diameter	3000 mm
Canopy edge valance height	2080 mm
Support pole outer dimension	75 mm
Cantilever arm horizontal overhang	1600 mm
Round granite base diameter	1000 mm
Granite base thickness	80 mm
Individual canopy rib length	1450 mm
Canopy valance depth	200 mm
Center wind vent diameter	200 mm
Crank handle operating height	1400 mm
Primary Component Thickness	40 mm according to load-bearing role
Hardware / Moving-part Clearance	5 mm operating clearance

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total product net weight (umbrella only)	18 kg
Round granite base weight	90 kg
Recommended maximum static load resistance	86 kg
Fabric UV protection rating	UPF 50+
Fabric colorfastness rating	Level 4
Fabric fade resistance lifespan	3 years
Frame rust protection service life	5 years
Recommended maximum safe wind speed	38 km/h
Shaded coverage area	7.1 sqm
Reference Static Load	150 kg depending on category

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Canopy fabric	250 gsm solution-dyed polyester, water-repellent coated
Support frame and cantilever arm	Powder-coated light gray aluminum alloy, 1.8mm wall thickness
Canopy support ribs	8 pcs powder-coated aluminum rectangular ribs, 1.2mm wall thickness
Weighted base	Solid polished gray granite round slab, sealed surface finish
Frame connecting hardware	Stainless steel bolts and brackets, corrosion-resistant coating
Lift and tilt mechanism	Enclosed steel gear crank system, zinc-plated internal parts
Rotation mechanism	Foot-pedal operated steel bearing swivel joint
Canopy seams	Double-stitched UV-bonded polyester thread, 8 stitches per inch
Primary Connector Specification	Reference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Canopy opening and closing	Hand crank lift mechanism, opens/closes canopy in 8 full crank rotations
Horizontal rotation	Foot-pedal actuated 360° infinite rotation, locks at desired angle
Vertical tilt adjustment	5-position crank tilt, maximum 45° canopy tilt from horizontal
Wind venting	Single top center air vent, allows wind passage to reduce frame stress
Base stability	Solid granite ballast secures offset frame, no additional weights required for standard wind conditions
Canopy valance	Fixed scalloped valance edge, provides extra low-angle sun protection
Maintenance requirement	Close and secure canopy during storms, heavy rain or wind speeds above 38 km/h
Disassembly feature	Frame detaches from base with 4 locking bolts for off-season storage
Reference Adjustment / Operating Range	100 mm or 120° where applicable

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Packaging Volume	0.8 m³/set
Reference Packaged Gross Weight	120 kg/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Residential patio seating areas	Provides unobstructed shade for 4person bistro sets without center pole interference
Lakeside or poolside outdoor lounges	Water-resistant fabric and rustproof frame withstand humid, waterside outdoor conditions
Commercial café outdoor seating	Heavy granite base and large canopy cover 2 small dining tables for guest sun protection
Residential garden relaxation zones	360° rotation and tilt adjust shade throughout the day for lounge chair placement
Balcony or rooftop outdoor spaces	Fixed heavy base requires no permanent anchoring for temporary patio installation
Event pop-up outdoor seating	Disassembles for transport and sets up without specialized tools for temporary event use

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Outdoor furniture mechanical safety requirements	EN 581:2023
Textiles UV protection performance	EN 13758:2003+A1:2006

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Outdoor furniture sunshade structural safety	GB/T 33245
Textile color fastness to light	GB/T 8427
Metal furniture coating corrosion resistance	GB/T 2020
Outdoor furniture durability test methods	GB/T 41782

Standardized tender description text

This product must meet the following technical requirements:
1. Outdoor furniture sunshade structural safety: GB/T 33245;
2. Textile color fastness to light: GB/T 8427;
3. Metal furniture coating corrosion resistance: GB/T 2020;
4. Outdoor furniture durability test methods: GB/T 41782;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · CPU-3000-OCT-CR-GB

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · CPU-3000-OCT-CR-GB

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · CPU-3000-OCT-CR-GBOpen Export Tool

Quick Actions

Post an RFQ

Product Description

The JINQIU Cream Octagonal Cantilever Patio Umbrella with Round Granite Base, model CPU-3000-OCT-CR-GB, is a premium outdoor shade solution designed for flexible, unobstructed coverage across residential and commercial settings. Its offset cantilever structure eliminates the interference of a center pole, anchored by a substantial round polished gray granite base with a sealed surface finish that delivers reliable stability without additional weights under standard wind conditions. The soft cream octagonal canopy features a fixed scalloped valance edge for added low-angle sun protection, topped with a single central wind vent to reduce structural stress during light breezes, supported by a light gray powder-coated aluminum frame with clean, modern lines that complement a wide range of outdoor decor palettes.
Crafted for long-term outdoor durability, the canopy uses 250 gsm solution-dyed polyester with a water-repellent coating, offering UPF 50+ UV protection, Level 4 colorfastness, and 3 years of fade resistance. The support pole and cantilever arm are built from powder-coated aluminum alloy with 1.8mm wall thickness, paired with 8 powder-coated rectangular aluminum canopy ribs with 1.2mm wall thickness; frame rust protection is rated for 5 years of service. Connecting hardware uses corrosion-coated stainless steel bolts and brackets, with a minimum of two fixing points at major joints per primary connector specifications. The enclosed steel gear crank lift system features zinc-plated internal parts, opening and closing the canopy smoothly in 8 full crank rotations, while a foot-pedal operated steel bearing swivel joint enables 360-degree infinite rotation that locks at the user’s preferred angle. The 5-position crank tilt system allows up to 45 degrees of vertical canopy tilt from horizontal, while double-stitched UV-bonded polyester thread at 8 stitches per inch reinforces canopy seams for extended wear.
This umbrella delivers consistent shade across a wide range of spaces. In residential settings, it covers 4-person bistro sets on patios, adjusts rotation and tilt throughout the day to follow sun movement across garden lounge zones, and installs without permanent anchoring for balcony or rooftop use. In commercial and public settings, its large canopy covers two small dining tables for café outdoor seating, its water-resistant fabric and rustproof frame withstand humid lakeside or poolside lounge environments, and its tool-free disassembly supports temporary pop-up event seating setups.
Procurement teams and individual buyers should note the product ships in 2 cartons per set, with 40 minutes of reference assembly time per unit, and requires the canopy to be closed and secured during storms, heavy rain, or wind speeds above 38 km/h to preserve structural integrity. The total packaged gross weight reaches 120 kg per set, with a packaged volume of 0.8 m³ per unit, to plan for delivery and on-site handling accordingly.

Cream Octagonal Cantilever Patio Umbrella with Round Granite Base Specifications
