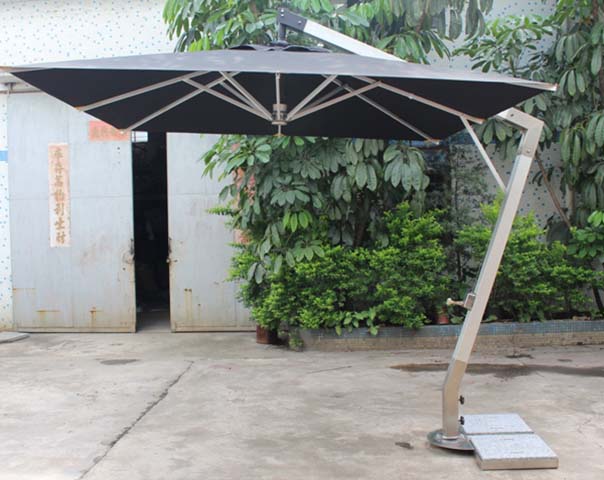

Product supplierSquare Black Cantilever Outdoor Patio Umbrella with Brushed Metal Offset Arm and Weighted Base, 250gsm PA-coated black polyester
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 3500 × 3500 × 2700 mm | |
|---|---|---|
| Overall assembled dimensions | 3500 x 3500 x 2700 mm | |
| Support arm major cross-section | 100 mm | |
| Stainless steel extension arm diameter | 60 mm | |
| Internal support rib count | 8 pieces | |
| Support rib cross-section | 25 x 17 mm | |
| Canopy edge clearance above paved surface | 2100 mm | |
| Rotating base plate diameter | 450 mm | |
| Crank handle length | 120 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total assembled weight with 2-piece counterweight set | 108 kg | |
|---|---|---|
| Individual counterweight slab weight | 20 kg | |
| Recommended maximum static load capacity for frame | 160 kg | |
| Canopy fabric weight | 250 gsm | |
| Fabric UV protection rating | UPF 50+ | |
| Recommended maximum safe wind speed for use | 24 km/h | |
| Frame and mechanism durability cycle rating | 3000 open/close cycles | |
| Standard product warranty period | 2 years | |
| Individual counterweight slab dimensions | 660 x 480 x 57 mm | |
| Reference Static Load | 150 kg depending on category |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Canopy fabric | 250gsm PA-coated black polyester | |
|---|---|---|
| Offset support arm | Brushed finish stainless steel | |
| Main vertical support pole | Powder-coated aluminum alloy | |
| Internal canopy ribs | Rectangular extruded aluminum | |
| Rotating joint hardware | Stainless steel bolts and bushings | |
| Lower base plate | Powder-coated steel cross base | |
| Counterweight slabs | High-density composite concrete with wear-resistant coating | |
| Crank mechanism housing | Zinc alloy with stainless steel crank handle | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Canopy opening and closing | Manual crank operation, smooth gear-driven lift | |
|---|---|---|
| Canopy horizontal rotation | 360 degree infinite rotation with 16 lock positions | |
| Canopy tilt adjustment | 45 degree maximum angle tilt via slide lock mechanism | |
| Base stability system | Two removable counterweight slabs locking to steel cross base | |
| Canopy venting | Single top air vent to reduce wind lift | |
| Storage tie strap | Integrated fabric strap to secure folded canopy when not in use | |
| Disassembly for storage | Tool-free separation of canopy, arm and base sections | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Assembly note | Engineering for preliminary quoting, not supplier measured data | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Residential patio application | Suitable for backyard, terrace or poolside seating areas, covers 4-seat dining set | |
|---|---|---|
| Commercial outdoor dining use | Ideal for cafe, restaurant or beer garden outdoor seating zones | |
| Hard surface installation | Designed for placement on concrete, stone or paved patio surfaces | |
| All-weather outdoor placement | Suitable for year-round outdoor use in temperate climates | |
| User configuration | Provides shade for up to 6 people seated around a standard outdoor dining set | |
| Installation requirement | Two-person assembly recommended for safe positioning of weighted base and frame |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| Outdoor furniture mechanical safety | EN 581 |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| Outdoor furniture safety requirement | GB 28478 | |
|---|---|---|
| Textile UV performance | GB/T 18830 | |
| Metal coating corrosion resistance | GB/T 1865 |
Standardized tender description text
This product must meet the following technical requirements: 1. Outdoor furniture safety requirement: GB 28478; 2. Textile UV performance: GB/T 18830; 3. Metal coating corrosion resistance: GB/T 1865; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
