PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	3000 × 3000 × 2700 mm
Center pole diameter	48 mm
Canopy edge height above ground	2100 mm
Top vent canopy size	600 x 600 mm
Rib length per side	1500 mm
Crank handle height above ground	1100 mm
Finial height above canopy hub	80 mm
Pole section length (per piece)	1400 mm
Primary Component Thickness	40 mm according to load-bearing role
Hardware / Moving-part Clearance	5 mm operating clearance

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Product net weight (without base)	15 kg
Recommended weighted base weight	50 kg
Recommended user capacity	6 people
Fabric UV protection rating	UPF 50+
Tilt angle range	45 degrees
Fabric colorfastness life	1000 hours
Wind speed rating for secure operation	38 km/h
Reference Static Load	150 kg depending on category
Moving-part Durability Reference	Acceptance target 50000 cycles
Recommended Procurement Warranty	Structure 5 years; hardware 3 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Main canopy fabric	280 gsm solution-dyed polyester with PU waterproof coating
Top vent canopy	Matching polyester fabric with reinforced stitched seams
Center support pole	1.2 mm thick powder-coated aluminum with brushed silver finish
Support ribs	0.8 mm thick powder-coated steel ribs, 8 total ribs
Crank and tilt hardware	Zinc-plated steel crank mechanism with ABS plastic handle
Hub and connector fittings	Glass-reinforced nylon hub and rib connectors
Top finial	Die-cast aluminum decorative finial with matching powder coat
Seam and stitching details	UV-resistant polyester thread with 8 stitches per inch seam pitch
Primary Connector Specification	Reference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Canopy lift operation	Hand crank lift opens and closes canopy smoothly with 8 full crank rotations
Tilt adjustment	Push-button collar tilt adjusts canopy angle up to 45 degrees to block low-angle sun
Wind ventilation	Double-vented top canopy allows upward airflow to reduce wind lift and frame stress
Knockdown assembly	Two-piece pole design allows tool-free assembly without specialized hardware
Table compatibility	Fits standard patio umbrella tables with 50 mm or larger center pole holes
Collapse function	Canopy fully collapses against the pole for compact storage during storms or off-season
Height adjustment	Two-position height setting adjusts canopy height by 100 mm for variable clearance
Tilt pivot point height	1900 mm
Reference Adjustment / Operating Range	100 mm or 120° where applicable

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Packaging Volume	0.8 m³/set
Reference Packaged Gross Weight	120 kg/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Residential patio use	Shades outdoor dining sets, lounge seating for home gardens, courtyards and pool decks
Commercial outdoor seating	Suitable for cafe, restaurant and hotel outdoor seating areas requiring durable sun protection
Market stall and event use	Provides shade for outdoor market stalls, pop-up events and community fair booths
Courtyard and public plaza use	Appropriate for public park seating areas, apartment complex courtyards and campus outdoor spaces
Recommended configuration	Pair with 50kg marble or concrete weighted base, outdoor dining set for 6 people
Installation note	Place on flat, level hardscape surfaces; close and secure during high wind or thunderstorms

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 13758-1:2001+A1:2006	Textile UV protection standard applicable for canopy sun protection testing
EN 1176-1:2017	Outdoor furniture safety standard applicable for structural stability verification

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 21196.2-2007	Fabric abrasion resistance test method applicable for canopy textile durability verification
GB/T 18830-2009	Textile UV protection performance standard applicable for UPF rating verification
GB/T 1766-2008	Paint and coating weathering resistance standard applicable for frame finish durability verification

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 21196.2-2007: Fabric abrasion resistance test method applicable for canopy textile durability verification;
2. GB/T 18830-2009: Textile UV protection performance standard applicable for UPF rating verification;
3. GB/T 1766-2008: Paint and coating weathering resistance standard applicable for frame finish durability verification;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · PU-ST30-CT-TER

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · PU-ST30-CT-TER

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · PU-ST30-CT-TEROpen Export Tool

Quick Actions

Post an RFQ

Product Description

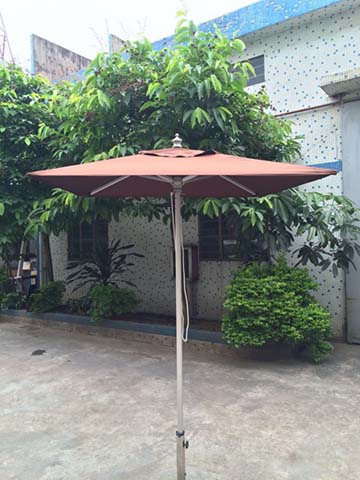

The Square Double-Vented Center-Pole Outdoor Patio Umbrella with Crank Tilt, featuring a warm terracotta canopy, delivers structured, high-coverage shade for outdoor spaces with a clean, geometric silhouette. When fully open, it forms a perfectly square shaded footprint, with a matching 600 x 600 mm double-vented panel centered at the canopy top, finished with a die-cast aluminum finial coated to match the brushed silver powder-coated center pole. The crank handle sits 1100 mm above ground for accessible operation, while the canopy edge rests 2100 mm above ground, with two-position height adjustment that shifts clearance by 100 mm to accommodate varying seating arrangements. The two-piece center pole measures 48 mm in diameter, supporting 8 powder-coated steel ribs extending 1500 mm per side to hold the canopy taut. The main canopy is constructed from 280 gsm solution-dyed polyester with a PU waterproof coating, sewn with UV-resistant polyester thread at 8 stitches per inch, with reinforced stitched seams on the top vent panel. The frame combines a 1.2 mm thick powder-coated aluminum center pole, zinc-plated steel crank hardware with an ABS plastic handle, and glass-reinforced nylon hub and rib connectors secured with M6-M10 fasteners with at least two fixing points at each major joint, for a net weight of 15 kg without a base. The hand crank mechanism opens and closes the canopy smoothly over 8 full rotations, while a push-button collar tilt adjusts the canopy angle up to 45 degrees to block low-angle sun. The double-vented top panel allows upward airflow to cut down on wind lift and frame stress, rated for secure operation in wind speeds up to 38 km/h, and the canopy fully collapses against the pole for compact storage. The polyester canopy carries a UPF 50+ UV protection rating with 1000 hours of colorfastness, and the two-piece pole enables tool-free assembly, fitting standard patio umbrella tables with 50 mm or larger center holes. It is sized to comfortably shade 6 people, making it suitable for residential patios, home gardens, courtyards and pool decks, as well as commercial cafe, restaurant and hotel outdoor seating, market stalls, pop-up events, public park seating zones, apartment complex courtyards and campus outdoor spaces. For procurement, note that the product ships unbranded as model PU-ST30-CT-TER across 2 cartons per set, with a packaged gross weight of 120 kg and 0.8 m³ packaging volume, requiring 40 minutes of assembly time per unit. Purchase must include a separate 50 kg weighted marble or concrete base, as bases are not included, and units must be placed on flat, level hardscape surfaces, closed and secured during high wind or thunderstorms. The canopy fabric is not designed for permanent exposure to extreme weather, so seasonal storage is recommended to extend service life.

Square Double-Vented Center-Pole Outdoor Patio Umbrella with Crank Tilt, Terracotta Canopy Specifications
