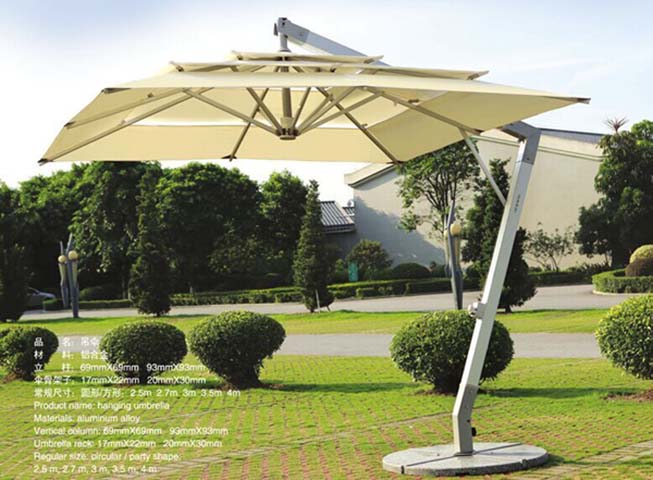

Product supplier3m Square Double-Vent Aluminum Cantilever Patio Umbrella with Round Heavy Base, Powder-coated aluminum alloy 93x93mm rectangular profile
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 3000 × 3000 × 2700 mm | |
|---|---|---|
| Vertical support column cross-section | 93 x 93 mm | |
| Umbrella rib profile | 20 x 30 mm | |
| Aluminum wall thickness | 1.2 mm | |
| Diagonal support arm cross-section | 55 x 48 mm | |
| Base thickness | 250 mm | |
| Canopy edge height above ground | 2200 mm | |
| Double vent upper canopy size | 1000 x 1000 mm | |
| Rib count | 8 | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Umbrella assembly net weight | 35 kg | |
|---|---|---|
| Total unit weight with base | 95 kg | |
| Recommended base static weight | 90 kg | |
| Wind resistance rating | 38 km/h | |
| Canopy UV protection factor | 50+ | |
| Fabric water column resistance | 300 mm | |
| Fabric fade resistance lifespan | 3 years | |
| Frame rust protection lifespan | 5 years | |
| Round weighted base diameter | 1000 mm | |
| Reference Static Load | 150 kg depending on category |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Vertical support column | Powder-coated aluminum alloy 93x93mm rectangular profile | |
|---|---|---|
| Support ribs | Powder-coated aluminum alloy 20x30mm rectangular profile | |
| Canopy fabric | 280g/m² PA-coated solution-dyed polyester | |
| Offset support arm | Powder-coated aluminum alloy 55x48mm rectangular profile | |
| Weighted base | Polished stone composite round flat weight | |
| Fasteners and hardware | Stainless steel rust-resistant bolts and joints | |
| Frame finish | Matte light gray powder coating | |
| Canopy color | Beige (off-white) | |
| Canopy stitching | UV-resistant polyester thread, 8 stitches per inch | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Canopy operation | Manual crank lift for smooth open and close | |
|---|---|---|
| Rotation function | Foot-pedal activated 360° infinite rotation around the vertical column | |
| Tilt adjustment | 5-position lockable tilt up to 90° from vertical for sun tracking | |
| Wind venting | Double-tier top vent allows cross-airflow to reduce wind lift | |
| Stability design | Triangular reinforced bracing between arm and column for structural rigidity | |
| Canopy replacement | Removable canopy fabric secured with rib pockets for easy replacement | |
| Locking mechanism | Auto-lock at open position and tilt positions to prevent unintended movement | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Residential patio use | Suitable for backyard decks, garden seating areas for 6person dining sets | |
|---|---|---|
| Commercial outdoor use | Suitable for café sidewalk seating, hotel poolside lounges, restaurant terraces | |
| Public space use | Suitable for park rest areas, community courtyards, scenic spot seating zones | |
| Recommended pairing | Matches with 3m square or round patio dining sets, 6person outdoor sofa groups | |
| Climate suitability | Recommended for temperate to subtropical climates with routine wind exposure up to Beaufort 5 | |
| Color option availability | Available in beige, khaki, wine red, dark green standard canopy colors |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| Outdoor furniture performance standard | EN 581 | |
|---|---|---|
| Aluminum coating standard | EN 13438 |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| Outdoor furniture safety requirement | GB 28478 | |
|---|---|---|
| Textile UV performance standard | GB/T 18830 | |
| Metal coating corrosion standard | GB/T 1771 |
Standardized tender description text
This product must meet the following technical requirements: 1. Outdoor furniture safety requirement: GB 28478; 2. Textile UV performance standard: GB/T 18830; 3. Metal coating corrosion standard: GB/T 1771; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
