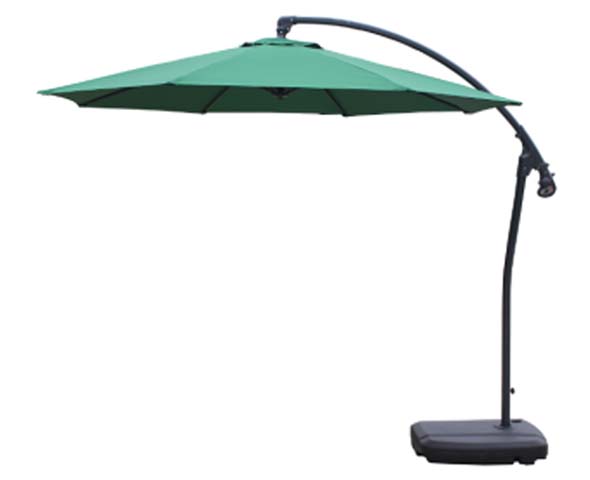

Product supplierGreen Octagonal Curved-Arm Cantilever Patio Umbrella with Weighted Rectangular Base, 250GSM yarn-dyed polyester with PU coating
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 3000 × 3000 × 2650 mm | |
|---|---|---|
| Overall assembled dimensions | 3000 x 3000 x 2650 mm | |
| Canopy diameter | 3000 mm | |
| Vertical support pole diameter | 48 mm | |
| Curved cantilever arm tube diameter | 42 mm | |
| Canopy rib length | 1500 mm | |
| Canopy vent diameter | 300 mm | |
| Clear shade height under canopy | 2050 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Umbrella-only net weight | 25 kg | |
|---|---|---|
| Assembled product total weight with filled base | 130 kg | |
| Recommended static load capacity for frame | 75 kg | |
| Fabric UV protection factor | UPF 50+ | |
| Fabric water resistance rating | 1000 mm hydrostatic head | |
| Safe operating maximum wind speed | 48 km/h | |
| Adjustable tilt angle range | 90 degrees | |
| Standard product warranty | 1 year | |
| Shaded coverage area | 7.1 sqm | |
| Weighted base footprint | 1000 x 800 x 120 mm |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Canopy fabric | 250GSM yarn-dyed polyester with PU coating | |
|---|---|---|
| Vertical support pole | 48mm diameter powder-coated steel tubing | |
| Curved cantilever arm | 42mm diameter powder-coated steel tubing | |
| Canopy support ribs | 18 x 12mm rectangular powder-coated steel, 8 ribs total | |
| Articulating adjustment joints | PA66 reinforced nylon with die-cast aluminum locking inserts | |
| Weighted base | High-density polyethylene (HDPE) shell, fillable with sand or water | |
| Crank operation handle | Zinc alloy with PVC grip | |
| Frame finish | Matte black polyester powder coat | |
| Canopy securing strap | Heavy-duty polypropylene webbing with Velcro fastener | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Canopy open/close operation | Side-mounted crank handle with 3:1 gear ratio to lift and lower canopy | |
|---|---|---|
| Canopy tilt adjustment | Locking sliding handle adjusts canopy angle up to 90 degrees for sun tracking | |
| Canopy rotation function | 360-degree foot-pedal controlled rotation with positive lock positions | |
| Wind ventilation | Single central top air vent to reduce wind uplift and canopy sway | |
| Base stabilization | Fillable HDPE base holds 105kg of sand or water to prevent tipping | |
| Canopy securement | Integrated webbing strap secures folded canopy to pole during high wind or storage | |
| Adjustment lock | Spring-loaded locking pins hold arm and canopy position without slippage | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Umbrella component carton dimensions | 1800 x 320 x 180 mm | |
|---|---|---|
| Empty base carton dimensions | 1020 x 820 x 140 mm | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Residential patio use | Suitable for shading 6person outdoor dining or seating sets in backyards | |
|---|---|---|
| Commercial outdoor seating | Appropriate for restaurant, cafe or poolside guest seating shade areas | |
| Garden leisure areas | Ideal for freestanding shade over garden lounge chairs or side tables without center pole obstruction | |
| Balcony/terrace installation | Suitable for large outdoor balconies with sufficient space for weighted base footprint | |
| Seasonal outdoor use | Designed for temporary seasonal installation, to be closed and stored in storm conditions |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 13561:2015 | Applicable European standard for external blinds and awnings wind resistance performance |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 23147-2018 | Applicable standard for outdoor leisure sunshade umbrellas structural safety and performance | |
|---|---|---|
| GB 18401-2010 | Applicable national safety technical code for textile products, Category C for outdoor use |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 23147-2018: Applicable standard for outdoor leisure sunshade umbrellas structural safety and performance; 2. GB 18401-2010: Applicable national safety technical code for textile products, Category C for outdoor use; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
