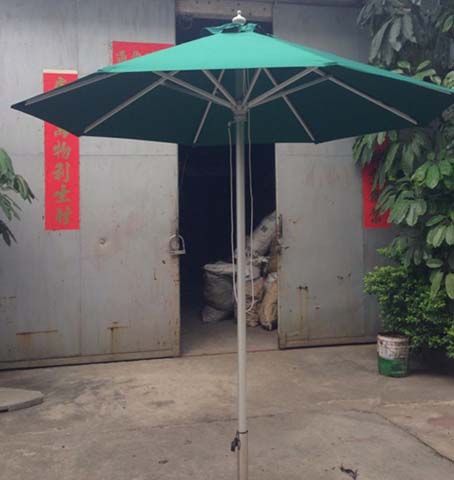

Product supplierTeal Octagonal Center Pole Outdoor Patio Umbrella with Pulley Lift, 6063-T5 powder-coated aluminum
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2700 × 2700 × 2500 mm | |
|---|---|---|
| Overall open dimensions | 2700 x 2700 x 2500 mm | |
| Center pole diameter | 48 mm | |
| Center pole wall thickness | 2.0 mm | |
| Rib count | 8 units | |
| Individual rib cross-section | 19 x 1.6 mm | |
| Canopy edge height above ground | 2100 mm | |
| Apex finial height above canopy | 50 mm | |
| Height adjustment clamp position above ground | 300 mm | |
| Canopy fabric thickness | 0.35 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Unit net weight (without base) | 9 kg | |
|---|---|---|
| Recommended minimum base weight for freestanding use | 30 kg | |
| Canopy UV protection rating | UPF 50+ | |
| Maximum sustained wind resistance rating | 29 km/h | |
| Fabric water column resistance | 300 mm | |
| Fabric fade resistance warranty | 5 years | |
| Frame corrosion resistance warranty | 1 year | |
| Static load capacity on pole | 50 kg | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Center pole | 6063-T5 powder-coated aluminum | |
|---|---|---|
| Support ribs | Powder-coated aluminum alloy | |
| Canopy fabric | 210T polyester with waterproof PU coating | |
| Lift rope | Braided polypropylene cord | |
| Locking clamp | Zinc-plated steel hardware | |
| Top finial | Polished aluminum decorative cap | |
| Frame fasteners | Stainless steel screws and rivets | |
| Canopy stitching | Polyester bonded thread | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Pulley lift mechanism | Rope-operated lift raises and lowers canopy along center pole | |
|---|---|---|
| Height adjustment lock | Clamp-style lock secures canopy at selected open heights | |
| Wind pressure relief | Single top vent allows air flow through canopy to reduce wind lift | |
| Knockdown assembly | Sectional pole connects via spring-loaded push buttons for transport | |
| Base compatibility | Fits standard 48mm diameter umbrella pole sockets on weighted bases | |
| Canopy folding | 8 ribs fold compactly against the center pole when closed | |
| Manual operation | No crank or power components, operated by hand via lift rope | |
| Fixed canopy angle | No tilt mechanism, canopy remains aligned perpendicular to pole | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Courtyard residential use | Provides shade for patio dining sets and outdoor seating areas | |
|---|---|---|
| Commercial outdoor dining | Suitable for cafe, restaurant and beer garden seating shade | |
| Building entrance shade | Covers entryways for pedestrian and visitor waiting areas | |
| Garden leisure areas | Shades outdoor lounge seating and garden relaxation spaces | |
| Temporary event use | Deployed for outdoor markets, pop-up events and vendor stalls |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| Outdoor furniture mechanical safety requirements | EN 581:2019 | |
|---|---|---|
| Textiles solar UV protective properties | EN 13758:2001+A1:2006 |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| Outdoor furniture safety structural requirement | GB/T 3324 | |
|---|---|---|
| Textile UV protection performance | GB/T 18830 |
Standardized tender description text
This product must meet the following technical requirements: 1. Outdoor furniture safety structural requirement: GB/T 3324; 2. Textile UV protection performance: GB/T 18830; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
