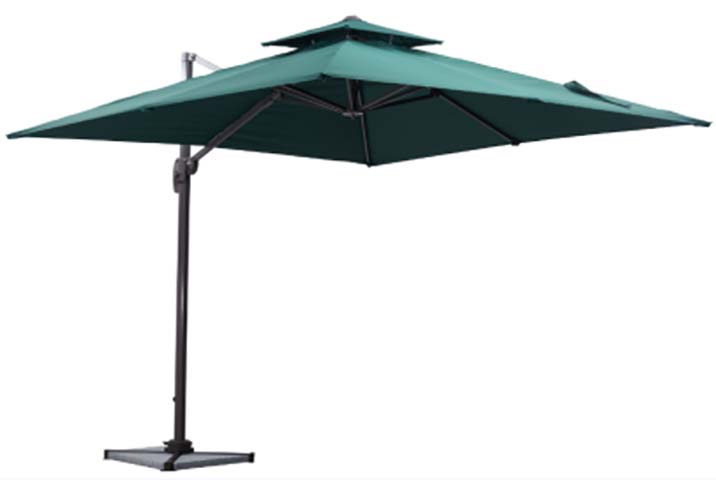

Product supplier10ft Square Double-Vent Offset Cantilever Patio Umbrella, Powder-coated aluminum alloy, 2.0mm wall thickness
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 3000 × 3000 × 2700 mm | |
|---|---|---|
| Overall assembled dimensions | 3000 x 3000 x 2700 mm | |
| Square canopy span | 3000 mm per side | |
| Canopy shade coverage | 9 sq m | |
| Upper vent canopy span | 1100 mm per side | |
| Vertical main pole cross-section | 80 x 53 mm, 2.0 mm wall thickness | |
| Support rib cross-section | 17 x 25 mm, 0.6 mm wall thickness | |
| Cantilever support arm cross-section | 40 x 25 mm, 1.2 mm wall thickness | |
| Cross base footprint | 1000 x 1000 mm | |
| Pole length from base to arm joint | 2200 mm | |
| Arm extension length from pole to canopy center | 1500 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Umbrella net weight (without ballast) | 24 kg | |
|---|---|---|
| Recommended total ballast weight | 159 kg | |
| Canopy fabric weight | 281 gsm solution-dyed polyester | |
| UV protection rating | UPF 50+ | |
| Fabric water pressure resistance | 1000 Pa | |
| Recommended user capacity under shade | 8 people | |
| Canopy fabric light colorfastness grade | AATCC 16 Grade 5 | |
| Frame warranty period | 3 years | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Main vertical pole | Powder-coated aluminum alloy, 2.0mm wall thickness | |
|---|---|---|
| Canopy support ribs | 8 titanium-steel ribs, powder-coated dark finish | |
| Cantilever support arm | Powder-coated steel brace with welded joint connections | |
| Canopy fabric | 281gsm solution-dyed polyester with PU water-repellent coating | |
| Tilt and rotation joints | PA66 reinforced nylon with metal cover plates, aluminum die-cast rotation hub | |
| Cross base frame | Powder-coated steel cross frame with plastic end caps | |
| Hardware fasteners | Stainless steel screws and pivot pins | |
| Operation crank | Reinforced plastic crank handle with metal insert | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Canopy lift operation | Crank-operated lift with smooth winding action to open and close canopy | |
|---|---|---|
| Canopy tilt adjustment | 6-position crank tilt with vertical adjustment up to 90 degrees | |
| Canopy rotation | 360-degree rotation via foot pedal or rotating base joint | |
| Double-vent wind diffusion | Dual-tier canopy design allows wind to pass through upper vent to reduce lift and wobble | |
| Cross base mounting | Compatible with sand/water fill weight plates or concrete pavers for fixed installation | |
| Fold-down storage | Canopy fully closes and tilts vertically for compact off-season storage | |
| Crank locking mechanism | Auto-locking crank holds canopy at set tilt and height positions without slippage | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Residential patio and deck use | Provides 9sqm shade for outdoor dining sets, lounge seating for up to 8 people | |
|---|---|---|
| Commercial outdoor dining areas | Suitable for cafe, restaurant and beer garden seating with all-day directional shade adjustment | |
| Garden and poolside installation | Powder-coated rust-resistant frame withstands constant outdoor exposure to moisture and UV | |
| Villa courtyard leisure spaces | Modern cantilever design leaves unobstructed space under canopy without center pole interference | |
| Rental event and hospitality use | Durable construction and easy rotation/tilt suit temporary outdoor event shade setups |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 13561:2015 | Applicable for external blinds and awnings, performance and safety requirements for outdoor shade |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 23166-2008 | Applicable for outdoor furniture umbrella structural safety and performance testing | |
|---|---|---|
| GB 18401-2010 | Applicable for canopy fabric textile safety and harmful substance limits |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 23166-2008: Applicable for outdoor furniture umbrella structural safety and performance testing; 2. GB 18401-2010: Applicable for canopy fabric textile safety and harmful substance limits; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
