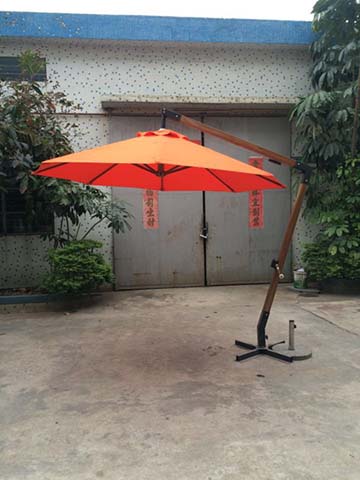

Product supplier3m Two-Tone Orange Cantilever Offset Patio Umbrella with Wood-Grain Pole, Powder-coated aluminum with wood-grain finish
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 3000 × 3000 × 2700 mm | |
|---|---|---|
| Overall footprint (fully open) | 3000 x 3000 x 2700 mm | |
| Canopy octagonal diameter | 3000 mm | |
| Cross base footprint | 1000 x 1000 mm | |
| Main support pole diameter | 68 mm | |
| Offset support arm diameter | 50 mm | |
| Main pole wall thickness | 2.0 mm | |
| Support rib profile | 14 x 24 mm, 1.0 mm thick | |
| Rib count | 8 ribs | |
| Canopy fabric thickness | 270 gsm | |
| Open under-canopy clearance | 2200 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Net product weight | 30 kg | |
|---|---|---|
| Recommended total base ballast weight | 150 kg | |
| UV protection rating | UPF 50+ | |
| Fabric water repellency | Light rain resistance, 300 mm water column | |
| Wind resistance rating | Gusts up to 38 km/h | |
| Fabric colorfastness lifespan | 3 years | |
| Frame rust resistance lifespan | 5 years | |
| Mechanism cycle rating | 1000 open/close cycles | |
| Standard limited warranty | 3 years | |
| Reference Static Load | 150 kg depending on category |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Main support pole | Powder-coated aluminum with wood-grain finish | |
|---|---|---|
| Offset cantilever arm | Powder-coated aluminum with matching wood-grain finish | |
| Canopy outer surface | 270 gsm solution-dyed polyester, light orange | |
| Canopy inner surface | 270 gsm solution-dyed polyester, bright red-orange | |
| Support ribs | Black powder-coated steel, 8 total | |
| Apex wind vent | Matching two-tone polyester mesh flap | |
| Cross base | Black powder-coated steel four-prong frame | |
| Crank and tilt hardware | Zinc-plated steel with black finish | |
| Storage fastener | Velcro fabric strap | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Canopy operation | Manual crank handle for smooth open and close | |
|---|---|---|
| Tilt adjustment | Lockable crank tilt with 5 preset positions | |
| Rotation function | 360-degree foot-pedal controlled rotation | |
| Base compatibility | Accepts sand/water filled weights or concrete pavers on cross prongs | |
| Canopy venting | Built-in apex wind vent reduces uplift and air pressure | |
| Closed storage | Compact folded profile with velcro strap to secure fabric | |
| Assembly requirement | Two-section pole and arm assembly with bolted hardware | |
| Tilt adjustment range | 35 degrees | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Residential patio use | Suitable for backyard decks, poolside areas and garden seating sets | |
|---|---|---|
| Light commercial outdoor use | Appropriate for cafe sidewalk seating, hotel terrace lounge areas | |
| Hard surface placement | Designed for concrete, stone or paved patios | |
| 4-6 person shading capacity | Covers standard 6-seat patio dining set or 4 lounge chairs | |
| All-season outdoor storage | Compatible with standard umbrella protective covers | |
| Sun-tracking shade adjustment | Tilt and rotation functions adjust shade throughout daylight hours |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| Outdoor furniture mechanical safety | EN 581:2015 | |
|---|---|---|
| Textile UV protection testing | EN 13758:2001+A1:2006 |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| Outdoor furniture fabric UV resistance | GB/T 18830 | |
|---|---|---|
| Metal furniture coating adhesion | GB/T 9286 | |
| Outdoor furniture structural safety | GB 28007 |
Standardized tender description text
This product must meet the following technical requirements: 1. Outdoor furniture fabric UV resistance: GB/T 18830; 2. Metal furniture coating adhesion: GB/T 9286; 3. Outdoor furniture structural safety: GB 28007; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
