PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	3000 × 3000 × 2800 mm
Main vertical pole diameter	65 mm
Offset support arm length	2400 mm
Canopy rib length	1520 mm
Canopy edge height above ground	2200 mm
Cross base footprint	1000 x 1000 mm
Canopy fabric thickness	0.45 mm
Metal frame wall thickness	1.5 mm
Wind vent gap width	80 mm
Primary Component Thickness	40 mm according to load-bearing role
Hardware / Moving-part Clearance	5 mm operating clearance

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended maximum static load on frame	45 kg
Shaded coverage area	9 m²
Recommended user capacity	6 people
Fabric UV protection factor	UPF 50+
Fabric water resistance rating	300 mm water column
Total assembled unit weight (with filled base)	75 kg
Fabric fade resistance lifespan	3 years
Maximum safe wind speed for use	38 km/h
Reference Static Load	150 kg depending on category
Moving-part Durability Reference	Acceptance target 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Canopy fabric	250GSM solution-dyed polyester with PA water-resistant coating
Main support pole	Powder-coated light gray aluminum alloy 65mm diameter tube
Offset cantilever arm	Welded powder-coated steel angular support frame
Canopy support ribs	8 pieces 12mm diameter powder-coated steel ribs
Cross base assembly	Heavy-duty powder-coated steel cross frame with filled resin weight pads
Crank mechanism housing	Die-cast aluminum crank housing with plastic turning handle
Frame surface finish	Matte light gray polyester powder coating
Hardware fasteners	Stainless steel 304 bolts and locking knobs for tilt/rotation adjustment
Primary Connector Specification	Reference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Canopy opening/closing operation	Manual crank lift mechanism with continuous handle rotation to open/close
Canopy tilt adjustment	5-position adjustable tilt up to 45 degrees via locking knob
Canopy rotation function	360-degree manual rotation around main vertical pole
Wind pressure relief	Single central top wind vent to reduce uplift force in gusts
Base weight compatibility	Accepts sand/water filled weight plates or concrete pavers on cross base
Canopy angle lock	Positive lock knob to secure tilt position without slippage
Disassembly for storage	Knock-down design allowing canopy, arm, pole and base separation for off-season storage
Reference Adjustment / Operating Range	100 mm or 120° where applicable

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Packaging Volume	0.8 m³/set
Reference Packaged Gross Weight	120 kg/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Residential patio application	Suitable for backyard patio, deck or poolside seating areas to cover dining/lounge sets
Commercial outdoor seating application	Suitable for cafe, restaurant or beer garden outdoor seating zones
Courtyard event use	Suitable for temporary outdoor events, markets or garden parties
Recommended mounting surface	Flat concrete, stone paver or compacted gravel patio surfaces
Recommended accessory pairing	Pair with 6-seat outdoor dining set or 4-piece lounge seating group
Storage recommendation	Close and secure canopy with included strap during high wind, storms or extended non-use

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Outdoor furniture mechanical safety	EN 581:2019

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Outdoor furniture umbrella structural safety	GB/T 33275
Textile UV protection performance	GB/T 18830
Metal furniture coating adhesion	GB/T 9286

Standardized tender description text

This product must meet the following technical requirements:
1. Outdoor furniture umbrella structural safety: GB/T 33275;
2. Textile UV protection performance: GB/T 18830;
3. Metal furniture coating adhesion: GB/T 9286;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · COU-SQ3000-CR-RD

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · COU-SQ3000-CR-RD

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · COU-SQ3000-CR-RDOpen Export Tool

Quick Actions

Post an RFQ

Product Description

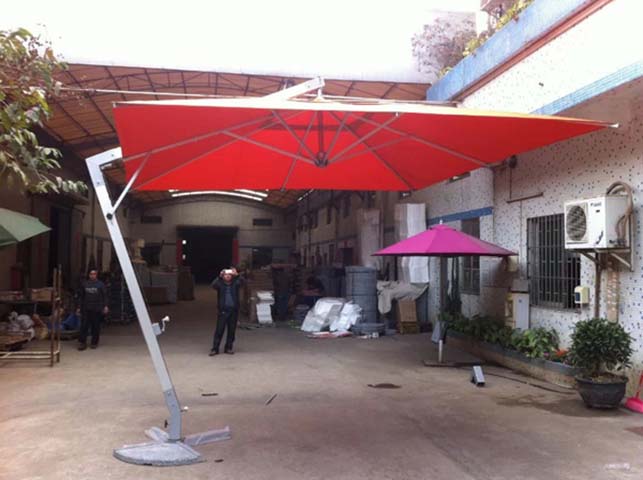

The Red Square Cantilever Offset Patio Umbrella with Weighted Base (model COU-SQ3000-CR-RD, unbranded) delivers structured, functional shade for outdoor settings, defined by clean geometric lines and an offset layout that eliminates central pole obstruction within its shaded footprint. Its square red canopy sits offset from the light gray matte-finished metal frame, extending over target seating areas without blocking sightlines or table placement, while a central top vent sits flush with the canopy surface to balance airflow. Built for sustained outdoor use, the umbrella’s frame combines a powder-coated light gray aluminum alloy main vertical pole, a welded powder-coated steel angular offset cantilever arm, and 8 powder-coated steel canopy support ribs, secured with stainless steel 304 bolts and locking knobs at critical joints. The crank mechanism housing uses die-cast aluminum with a plastic turning handle, and the cross base features a heavy-duty powder-coated steel frame paired with filled resin weight pads, compatible with additional sand or water-filled plates or concrete pavers for added stability. The 250GSM solution-dyed red polyester canopy carries a PA water-resistant coating, with fabric properties supporting UPF 50+ UV protection, reliable water resistance, and a 3-year fade resistance lifespan under regular outdoor exposure. The fully assembled unit with a filled base weighs 75 kg, with a rated maximum static frame load of 45 kg. Practical, user-focused functions streamline daily operation: a continuous-rotation manual crank opens and closes the canopy smoothly, while a 5-position tilt adjustment (up to 45 degrees) locks securely in place via a dedicated knob, and 360-degree manual rotation around the main pole lets users reposition shade throughout the day without moving the base. A single central wind vent reduces uplift during gusts, and a knock-down design supports full disassembly into canopy, arm, pole, and base components for compact off-season storage. The umbrella delivers 9 m² of shaded coverage, sized to accommodate up to 6 users comfortably. This model suits a wide range of outdoor spaces: residential backyards, decks, and poolside areas covering dining or lounge sets; commercial cafe, restaurant, and beer garden outdoor seating zones; and temporary settings including outdoor markets, courtyard events, and garden parties. It performs best when installed on flat concrete, stone paver, or compacted gravel surfaces, and pairs naturally with a 6-seat outdoor dining set or 4-piece lounge seating group. Procurement teams and residential buyers should note the unit ships in 2 cartons per set, with a packaged gross weight of 120 kg and 0.8 m³ packaging volume, requiring an 40 minutes of assembly per unit. Storage best practices specify closing and securing the canopy with the included strap during high wind, storms, or extended non-use to preserve component lifespan, and users may source compatible extra weight plates for the cross base if site conditions demand additional stability.

Red Square Cantilever Offset Patio Umbrella with Weighted Base Specifications
