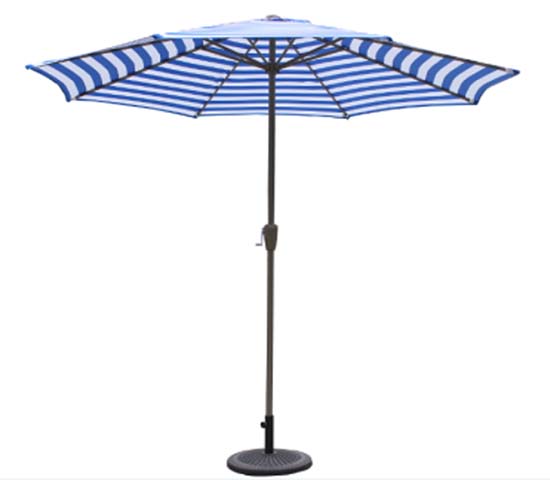

Product supplier9ft Blue and White Striped Crank-Tilt Octagonal Patio Umbrella with Round Weighted Base, 240gsm solution-dyed polyester
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2700 × 2700 × 2380 mm | |
|---|---|---|
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Umbrella unit net weight (no base) | 7 kg | |
|---|---|---|
| Recommended weighted base weight | 30 kg | |
| Canopy UPF sun protection rating | UPF 50+ | |
| Canopy water resistance rating | 1000 mm water column | |
| Recommended maximum wind speed rating | 48 km/h | |
| Fabric fade resistance lifespan | 2 years | |
| Crank mechanism open/close cycle rating | 1000 cycles | |
| Recommended occupancy under shade | 6 people | |
| Weighted round base diameter | 500 mm | |
| Reference Static Load | 150 kg depending on category |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Canopy fabric | 240gsm solution-dyed polyester | |
|---|---|---|
| Central support pole | Powder-coated iron tubing, 1.2mm wall thickness | |
| Canopy support ribs | 0.8mm thick powder-coated steel ribs, 8 total | |
| Crank and tilt mechanism | Zinc alloy crank housing with steel internal gears | |
| Weighted base | High-density resin composite filled with concrete, matte dark gray finish | |
| Pole surface finish | Matte black powder coating, rust and chip resistant | |
| Top wind vent | Matching 240gsm polyester fabric, reinforced double-stitched seams | |
| Hardware fasteners | Stainless steel screws and locking knobs | |
| Rib end caps | Injection-molded plastic caps, scratch-resistant | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Canopy lift operation | Manual crank handle opens and closes canopy in 3 full rotations | |
|---|---|---|
| Canopy tilt adjustment | Collar crank tilt provides 30 degrees of canopy angle adjustment | |
| Wind ventilation | Single top center vent reduces wind lift and improves air circulation | |
| Base compatibility | Pole fits standard 38mm diameter umbrella base sockets with locking thumb screw | |
| Table use compatibility | Pole fits standard 50mm center holes on outdoor patio dining tables | |
| Canopy removal | Velcro strap secures closed canopy for storage when not in use | |
| Tilt lock function | Tilt position locks automatically when crank is released | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Residential patio dining sets | Fits 6person round or rectangular outdoor dining tables for backyard shade | |
|---|---|---|
| Poolside lounge areas | Provides sun protection over chaise lounge seating for residential pool decks | |
| Commercial outdoor café seating | Suitable for restaurant sidewalk seating with weighted freestanding base | |
| Garden seating nooks | Shades small outdoor bistro sets in residential garden and lawn spaces | |
| Coastal nautical decor schemes | Blue and white striped canopy matches coastal and nautical outdoor design themes |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| Outdoor furniture mechanical safety | EN 581:2019 | |
|---|---|---|
| Textile water repellency testing | EN 24920:1992 |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| Outdoor furniture umbrella structural safety | GB/T 33245 | |
|---|---|---|
| Textile UV protection performance | GB/T 18830 | |
| Metal furniture coating adhesion | GB/T 2020 |
Standardized tender description text
This product must meet the following technical requirements: 1. Outdoor furniture umbrella structural safety: GB/T 33245; 2. Textile UV protection performance: GB/T 18830; 3. Metal furniture coating adhesion: GB/T 2020; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
