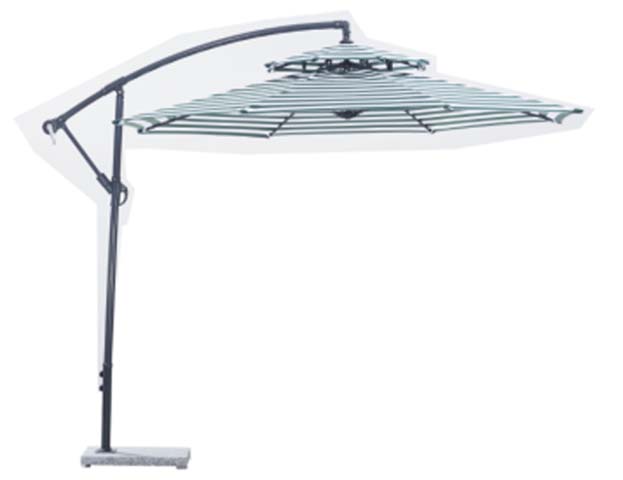

Name: Double-Tier Vented Cantilever Offset Patio Umbrella with Weighted Rectangular Base
Brand: JINQIU
SKU: B05LEG

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	3000 × 3000 × 2850 mm
Canopy shade coverage diameter/width	3000 mm
Vertical support pole cross-section	75 x 55 mm
Curved support arm diameter	40 mm
Canopy rib profile	15 x 25 mm
Under-canopy seated clearance height	2200 mm
Canopy rib count	8
Pole mounting hole diameter on base	61 mm
Top vent tier diameter	1000 mm
Primary Component Thickness	40 mm according to load-bearing role
Hardware / Moving-part Clearance	5 mm operating clearance

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Umbrella net weight (without base)	37 kg
Recommended total weighted base mass	155 kg
Canopy fabric areal density	220 gsm
Recommended maximum wind speed for use	38 km/h
Canopy UV protection rating	UPF 50+
Water repellency rating	1000 mm hydrostatic head
Frame powder coating thickness	80 um
Limited warranty period	1 year
Rectangular weighted base dimensions	860 x 860 x 200 mm
Reference Static Load	150 kg depending on category

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Main vertical pole and curved arm	Powder-coated steel
Canopy support ribs	Powder-coated steel tubing
Main canopy fabric	Solution-dyed polyester
Top vent canopy fabric	Matching polyester mesh and fabric
Rectangular base housing	HDPE shell with concrete fill
Crank and adjustment hardware	Zinc-plated steel
Rib connection joints	Reinforced nylon composite
Internal support struts	Powder-coated steel
Primary Connector Specification	Reference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Canopy open/close operation	Crank handle mechanism on vertical pole
Horizontal rotation	360 degree rotation around vertical axis
Vertical canopy tilt adjustment	90 degree adjustable tilt
Height adjustment positions	6 preset height positions
Double-vent wind stability	Top vent allows wind passage
Storage strap	Integrated canopy tie strap
Locking mechanism	Positive lock at each tilt/rotation position
Reference Adjustment / Operating Range	100 mm or 120° where applicable

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Packaging Volume	0.8 m³/set
Reference Packaged Gross Weight	120 kg/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Residential patio use	Suitable for backyard patios, decks and poolside seating areas
Commercial outdoor seating	Suitable for cafe, restaurant and beer garden outdoor seating
Garden lounge areas	Suitable for shading outdoor lounge chairs and sectional sets
Poolside shading	Suitable for pool edge lounge zones
Balcony shade application	Suitable for large private balconies and terraces

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Outdoor furniture mechanical safety for umbrellas	EN 581:2019
Textile sun protective performance	EN 13758:2003+A1:2006

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Outdoor furniture umbrella structural safety	GB/T 33245
Textile UV performance for outdoor use	GB/T 18830

Standardized tender description text

This product must meet the following technical requirements:
1. Outdoor furniture umbrella structural safety: GB/T 33245;
2. Textile UV performance for outdoor use: GB/T 18830;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · CTO-3000-DT-ST-BK

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · CTO-3000-DT-ST-BK

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · CTO-3000-DT-ST-BKOpen Export Tool

Quick Actions

Post an RFQ

Product Description

The JINQIU CTO-3000-DT-ST-BK Double-Tier Vented Cantilever Offset Patio Umbrella is a robust outdoor shading solution designed to deliver flexible, durable coverage across varied outdoor settings. Its offset cantilever layout suspends the square canopy clear of central support obstructions, anchored by a weighted rectangular base that sits unobtrusively beneath or adjacent to seating arrangements. The structure features 8 powder-coated steel ribs supporting a dual-layer canopy: the main canopy is crafted from solution-dyed polyester, paired with a matching polyester mesh and fabric top vent that enables controlled wind passage to reduce stress on the frame. The supporting structure includes a powder-coated steel vertical pole, curved powder-coated steel support arm, and zinc-plated steel crank and adjustment hardware, with reinforced nylon composite joints connecting ribs to the frame, and an HDPE shell base filled with concrete for stable anchoring. The frame’s 80um powder coating provides consistent surface protection, while the 220 gsm canopy fabric delivers UPF 50+ UV protection and a 1000mm hydrostatic head water repellency rating. Operation is streamlined via a crank handle mounted on the vertical pole for smooth canopy opening and closing. Users can rotate the canopy 360 degrees around the vertical axis, adjust it to a 90-degree vertical tilt, and select from 6 preset height positions, with positive locks securing every tilt and rotation setting. An integrated storage strap secures the canopy when closed, and the double-vent design supports use in wind speeds up to 38 km/h when paired with the recommended 155kg weighted base. This umbrella suits a wide range of spaces, including residential backyards, decks, poolside seating zones, large private balconies and terraces, as well as commercial outdoor areas such as cafe patios, restaurant outdoor dining sections, beer gardens, and garden lounge areas shading lounge chairs or sectional seating sets. When procuring this unit, note that each set ships in 2 cartons, requires 40 minutes of assembly time, and has a packaged gross weight of 120kg. Buyers should ensure the selected base meets the recommended total weighted mass requirement for safe operation, and confirm that installation spaces accommodate the 2200mm under-canopy seated clearance to allow unobstructed use for standard seating configurations.

Double-Tier Vented Cantilever Offset Patio Umbrella with Weighted Rectangular Base Specifications
