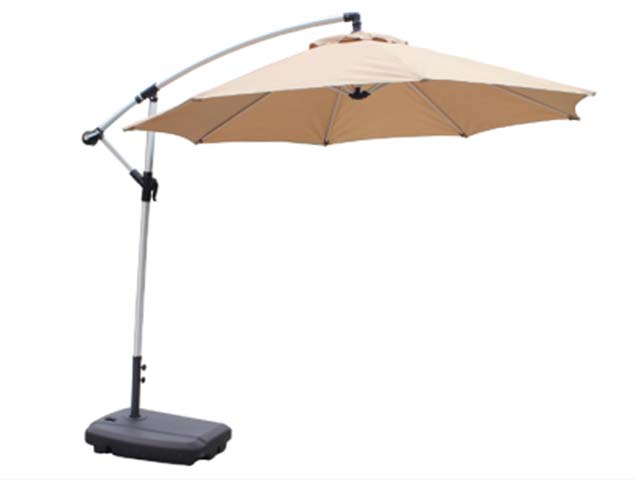

Product supplierBeige Cantilever Offset Patio Umbrella with Integrated Fillable Weighted Base, 1.2mm thick powder-coated silver steel
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 3000 × 3000 × 2560 mm | |
|---|---|---|
| Canopy diameter | 3000 mm | |
| Canopy edge clearance height | 1980 mm | |
| Main support pole diameter | 48 mm | |
| Curved support arm length | 2100 mm | |
| Canopy rib length | 1500 mm | |
| Rib count | 8 | |
| Top wind vent diameter | 400 mm | |
| Adjustment joint spacing on pole | 650 mm | |
| Base fill port diameter | 80 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total filled base weight | 104 kg | |
|---|---|---|
| Umbrella net weight (excluding filled base) | 30 kg | |
| Total shaded area | 7.1 sqm | |
| Canopy fabric weight | 240 gsm | |
| Fabric colorfastness rating | Level 4 | |
| Recommended maximum sustained wind speed | 38 km/h | |
| Adjustment joint locking load rating | 120 kg | |
| Tilt adjustment angle range | 45 degrees | |
| Integrated weighted base dimensions | 1000 x 800 x 200 mm | |
| Reference Static Load | 150 kg depending on category |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Main support pole | 1.2mm thick powder-coated silver steel | |
|---|---|---|
| Curved offset arm | 1.0mm thick powder-coated silver steel | |
| Canopy support ribs | 0.8mm thick rectangular powder-coated steel | |
| Canopy fabric | 240gsm solution-dyed beige polyester | |
| Adjustment hardware | Injection-molded black nylon with steel locking pins | |
| Integrated base | High-density polyethylene (HDPE), black, fillable with sand or water | |
| Canopy hub connector | Glass-reinforced black nylon | |
| Canopy edge tips | Injection-molded black plastic caps | |
| Top wind vent mesh | Polyester mesh | |
| Frame finish | Matte silver polyester powder coating | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Crank lift mechanism | Side-mounted crank raises and lowers canopy with smooth gear operation | |
|---|---|---|
| Infinite tilt adjustment | Dual locking joints allow 45degree canopy tilt with positive lock | |
| 360-degree rotation | Swivel joint at pole base allows full rotation around vertical axis | |
| Wind pressure relief | Top center vent allows air flow to reduce canopy lift in gusty conditions | |
| Base stabilization | Fillable base accepts water or sand to counterbalance offset canopy load | |
| Storage tie strap | Attached Velcro strap secures folded canopy when not in use | |
| Locking mechanism | Spring-loaded locking pins secure adjusted tilt and rotation positions | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Residential patio seating | Provides shade over 4-person outdoor dining or lounge sets | |
|---|---|---|
| Backyard poolside use | UV-resistant fabric and rust-proof frame suit humid, wet pool environments | |
| Garden leisure areas | Adjustable tilt tracks sun movement across garden seating zones | |
| Small commercial cafe seating | Stable weighted base works for outdoor bistro table setups without permanent mounting | |
| Balcony shade installation | 3m diameter fits standard large residential balcony footprints |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 13561:2015 | Applies to external sunshade performance, wind resistance, and safety requirements |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
No standards data is available for this market.
Standardized tender description text
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
