PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	3000 × 3000 × 2700 mm
Main vertical pole cross-section	65 x 45 mm
Support arm wall thickness	1.2 mm
Top vent canopy size	750 x 750 mm
Canopy valance height	150 mm
Rib length from hub to canopy corner	1520 mm
Primary Component Thickness	40 mm according to load-bearing role
Hardware / Moving-part Clearance	5 mm operating clearance

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Umbrella frame net weight	25.8 kg
Weighted base mass	210 kg
Recommended safe wind speed rating	Beaufort scale 5
UV protection rating	UPF 50+
Canopy water column resistance	300 mm
Fabric fade resistance warranty period	3 years
Static load capacity of support arm	50 kg
Recommended user seating coverage	6 people
Weighted base dimensions	900 x 600 x 100 mm
Canopy fabric weight per unit area	280 g/m²

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Canopy main fabric	280g/m² polyester with PA water-resistant coating
Canopy valance trim	White contrast piping with black backing on scalloped edge
Main support pole	Powder-coated aluminum alloy with off-white finish
Support ribs and brackets	1.2mm wall thickness aluminum alloy with black electrostatic powder coating
Connector hardware	304 stainless steel screws and fasteners
Weighted base outer shell	Reinforced concrete composite with textured gray finish
Crank handle components	ABS resin impact-resistant crank and rotation controls
Top vent canopy panel	Matching 280g/m² polyester mesh-backed vent panel
Primary Connector Specification	Reference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Canopy opening/closing operation	Hand crank lift system with 8-position locking to fully deploy or retract canopy
Canopy rotation function	360-degree foot-pedal controlled rotation to adjust shade direction without moving base
Canopy tilt adjustment	5-position incremental tilt to adjust shade angle across sun positions
Wind ventilation feature	Double-top vent design allows wind to pass through upper canopy to reduce lift force
Canopy removal function	Detachable canopy secured with rib-end pockets for seasonal removal and cleaning
Stabilization system	Rectangular weighted base mounts directly to pole flange for zero-center-obstruction shade
Corrosion resistance feature	High-temperature electrostatic powder coating on all metal frame parts to prevent outdoor rust
Reference Adjustment / Operating Range	100 mm or 120° where applicable

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Packaging Volume	0.8 m³/set
Reference Packaged Gross Weight	120 kg/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Residential patio application	Backyard patio dining sets, unobstructed shade over tables without center pole interference
Commercial outdoor seating application	Sidewalk cafe, restaurant patio and poolside lounge seating for continuous guest shade
Guard booth/sentry post application	Outdoor security booth and entry gate sun and rain protection for on-duty personnel
Garden leisure area application	Poolside lounge chair clusters and outdoor seating areas for all-day adjustable shade
Climate suitability	Temperate and subtropical outdoor spaces with regular sun exposure and light rain conditions

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Outdoor umbrella performance recommendation	EN 13561
Textile UV protection standard recommendation	EN 13758

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Outdoor furniture structural safety recommendation	GB 28478
Textile UV protection testing recommendation	GB/T 18830
Metal furniture coating durability recommendation	GB/T 3325

Standardized tender description text

This product must meet the following technical requirements:
1. Outdoor furniture structural safety recommendation: GB 28478;
2. Textile UV protection testing recommendation: GB/T 18830;
3. Metal furniture coating durability recommendation: GB/T 3325;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · CPU-SQ30-BURG-SVAL-BASE

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · CPU-SQ30-BURG-SVAL-BASE

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · CPU-SQ30-BURG-SVAL-BASEOpen Export Tool

Quick Actions

Post an RFQ

Product Description

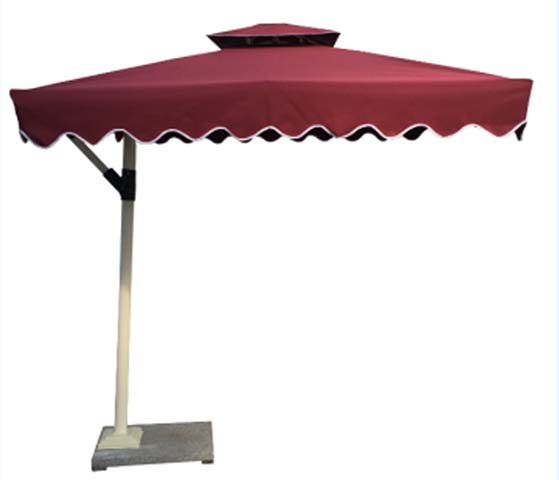

The Square Double-Vent Cantilever Patio Umbrella with Scalloped Valance and Weighted Base is a robust unbranded cantilever outdoor shade solution, model CPU-SQ30-BURG-SVAL-BASE, engineered for stable, adjustable coverage across residential and commercial outdoor settings. Visually, it features a crisp square canopy finished with a decorative scalloped valance trimmed in white contrast piping backed with black edging, paired with an offset support structure that eliminates central obstructions beneath the shade area. Its frame combines an off-white powder-coated aluminum alloy main vertical pole, black electrostatic powder-coated aluminum alloy support ribs and brackets, and 304 stainless steel fastening hardware, finished with a textured gray rectangular weighted stone/concrete composite base for low-profile, secure stabilization. The 280g/m² polyester canopy includes a PA water-resistant coating, a matching mesh-backed 750mm square top vent panel, and 150mm tall valance, designed to deliver UPF 50+ UV protection, 300mm water column resistance, and reliable wind pass-through via its double-vent design that reduces canopy lift. Operable features support flexible, user-friendly shade adjustment: a hand crank lift system with 8-position locking enables smooth full deployment or retraction, a foot-pedal control enables 360-degree canopy rotation without repositioning the base, and 5-position incremental tilt adjusts shade angle to track shifting sun positions across the day. The detachable canopy secures via rib-end pockets for easy seasonal removal and cleaning, while high-temperature electrostatic powder coating on all metal frame components prevents outdoor rust for extended service life, backed by a 3-year fabric fade resistance warranty. The unit carries a recommended safe wind speed rating of Beaufort scale 5, with a support arm static load capacity of 50kg, supported by its 210kg weighted base and 25.8kg frame structure. It is well suited for residential backyard patio dining sets, sidewalk cafes, restaurant patios, poolside lounge areas, outdoor security booths, entry gate stations, and garden leisure zones in temperate and subtropical climates with regular sun exposure and light rain. Procurement teams should note the unit ships as one set across two cartons, with a packaged gross weight of 120kg, 0.8 cubic meters total packaging volume, and a 40-minute reference assembly time. All major joints include at least two fixing points with M6 to M10 hardware, with 5mm operating clearance for moving parts and 40mm primary component thickness aligned to load-bearing requirements, to support long-term reliable outdoor use.

Square Double-Vent Cantilever Patio Umbrella with Scalloped Valance and Weighted Base Specifications
