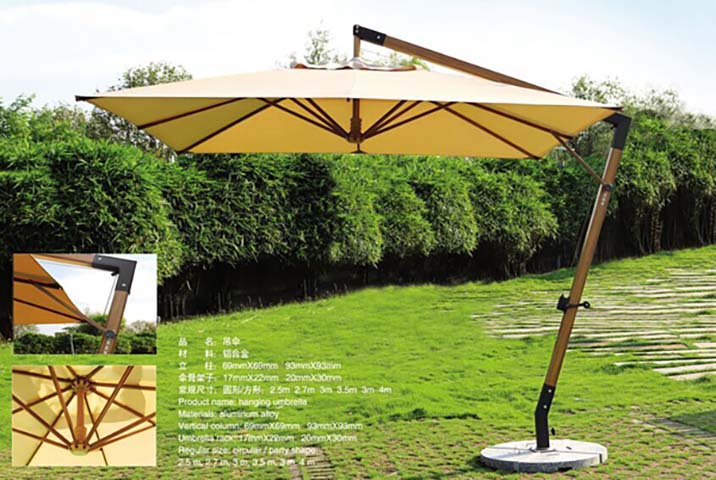

Product supplier3m Square Aluminum Wood-Look Cantilever Offset Patio Hanging Umbrella with Weighted Base, Aluminum alloy with simulated wood grain powder coating
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 3000 × 3000 × 3400 mm | |
|---|---|---|
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Umbrella net weight (excluding base) | 40 kg | |
|---|---|---|
| Recommended minimum weighted base mass | 200 kg | |
| UV protection rating | UPF 40+ | |
| Maximum safe operating wind speed | 62 km/h | |
| Canopy fabric weight | 250 gsm | |
| Crank opening/closing cycle durability | 1000 cycles | |
| Tilt angle adjustment range | 45 degrees | |
| Weighted base diameter | 800 mm | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Main support pole | Aluminum alloy with simulated wood grain powder coating | |
|---|---|---|
| Canopy support ribs | 8 pieces of aluminum alloy with matching wood-look finish | |
| Canopy fabric | Polyester with PU waterproof and UV-stabilized coating | |
| Joint hardware | Black powder-coated steel brackets and locking knobs | |
| Round weighted base | HDPE shell filled with concrete/sand composite | |
| Cantilever support arm | Aluminum alloy with wood-look finish, internal steel reinforcement | |
| Crank adjustment handle | Glass-fiber reinforced nylon with textured grip | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Canopy opening mechanism | Manual crank wind system for smooth, controlled deployment | |
|---|---|---|
| Rotation function | 360-degree full rotation around vertical pole axis to track sun position | |
| Tilt adjustment | 5 locking positions to adjust canopy angle for low-angle sun | |
| Folding function | Canopy folds vertically against the pole for compact off-season storage | |
| Locking mechanism | Manual twist-lock knobs to secure tilt and rotation positions during use | |
| Canopy vent | Single top center vent to reduce wind uplift and improve air circulation | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Residential garden patio use | Suitable for backyard lawn, deck or stone patio seating areas | |
|---|---|---|
| Commercial outdoor seating | Ideal for cafe, restaurant and hotel outdoor dining zones | |
| Poolside shade application | Suitable for pool deck sun protection, water-resistant fabric withstands splashes | |
| Event temporary shade | Usable for outdoor markets, wedding events and community gatherings | |
| Villa courtyard installation | Matches natural wood-look aesthetic for high-end residential landscape design |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| Outdoor furniture mechanical safety requirements | EN 581 | |
|---|---|---|
| Textile solar UV protection performance | EN 13758 |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| Outdoor furniture structural safety | GB 28478 | |
|---|---|---|
| Textile UV protection performance | GB/T 18830 |
Standardized tender description text
This product must meet the following technical requirements: 1. Outdoor furniture structural safety: GB 28478; 2. Textile UV protection performance: GB/T 18830; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
