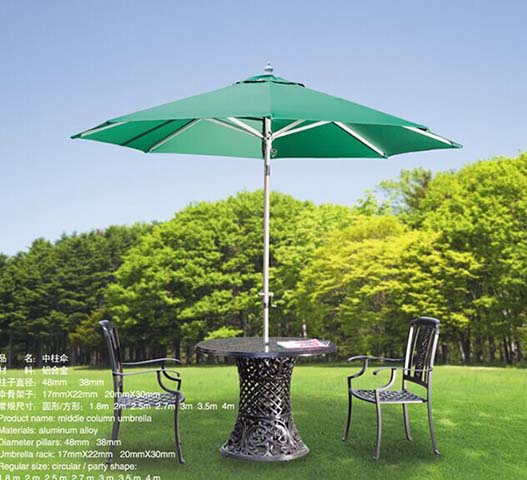

Product supplierGreen Octagonal Aluminum Center Pole Patio Parasol with Crank Lift, 6063-T5 aluminum alloy with powder-coated champagne finish
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 3000 × 3000 × 2600 mm | |
|---|---|---|
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Product net weight | 7.5 kg | |
|---|---|---|
| Recommended minimum weighted base weight | 25 kg | |
| Shaded coverage area | 7.1 sqm | |
| Maximum open/close cycle rating | 5000 cycles | |
| Wind resistance rating | Level 8 gust | |
| UV protection factor | UPF 60 | |
| Seating capacity shaded | 6 persons | |
| Fabric color fastness rating | Level 6 | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Central support pole | 6063-T5 aluminum alloy with powder-coated champagne finish | |
|---|---|---|
| Canopy support ribs | Extruded aluminum alloy, 20x30mm profile, powder-coated finish | |
| Canopy fabric | 230gsm long-fiber polyester with PU waterproof and UV-resistant coating | |
| Top finial cap | Injection-molded UV-stabilized plastic with matte silver finish | |
| Crank lift mechanism housing | Die-cast aluminum alloy with corrosion-resistant plated internal gears | |
| Rib end caps | Flexible UV-resistant plastic caps to secure fabric to rib tips | |
| Canopy vent panel | Same 230gsm polyester fabric, reinforced with double stitching | |
| Hardware fasteners | Stainless steel bolts and rivets for outdoor rust resistance | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Canopy opening mechanism | Side-mounted hand crank on central pole to lift and deploy canopy with smooth rotation | |
|---|---|---|
| Canopy locking mechanism | Internal auto-lock to hold canopy in fully open position without slippage | |
| Top canopy vent function | Passive airflow vent to reduce wind lift and improve structural stability in gusts | |
| Pole section assembly | Two-piece spliced pole connection with spring-loaded push button for tool-free setup | |
| Table compatibility | Fits standard patio dining tables with integrated umbrella holes up to 52mm diameter | |
| Canopy tilt function | Push-button auto-tilt to adjust shade angle up to 30 degrees from vertical | |
| Fabric replacement compatibility | Detachable canopy secured with rib pocket sleeves for easy fabric swap or replacement | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Residential patio dining | Shades 6person round patio tables for backyard garden meals | |
|---|---|---|
| Commercial outdoor seating | Suitable for café, restaurant, and poolside dining areas with standard table mounts | |
| Garden leisure areas | Installed with separate weighted base for open lawn or pool deck seating | |
| Balcony outdoor spaces | Fits small balcony bistro table setups for residential apartment outdoor use | |
| Hotel courtyard spaces | Coordinates with cast aluminum outdoor furniture sets for guest outdoor areas |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
No standards data is available for this market.
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
No standards data is available for this market.
Standardized tender description text
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
