Automatic mm / inch conversion · Core engineering specifications
| Primary Component Thickness | 40 mm according to load-bearing role | |
|---|---|---|
| Hardware / Moving-part Clearance | 5 mm operating clearance |
Net weight / load capacity / users / durability
| Total product weight with base | 26 kg | |
|---|---|---|
| Recommended static load capacity for base | 40 kg | |
| Wind resistance rating (secured) | 38 km/h | |
| Canopy UV protection factor | UPF 50+ | |
| Canopy water column resistance | 300 mm | |
| Recommended number of shaded users | 4 | |
| Fabric abrasion resistance | 15000 cycles | |
| Adjustment mechanism cycle life | 1000 cycles | |
| Weighted base diameter | 500 mm | |
| Weighted base height | 80 mm |
Core acceptance fields · Panels / hardware / frame / upholstery
| Canopy fabric | 280g solution-dyed polyester with PU water-repellent coating | |
|---|---|---|
| Central upper pole | 1.2mm thick anodized aluminum alloy | |
| Internal support ribs | 0.8mm thick powder-coated steel ribs | |
| Lower pole insert section | 1.5mm thick black powder-coated steel | |
| Weighted base | High-density HDPE shell filled with cement composite | |
| Height adjustment collar | Nylon-reinforced polymer with steel tightening knob | |
| Top finial | UV-stabilized polymer cap | |
| Hub connection hardware | Zinc-plated steel rivets and bolts | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
Adjustment / rotation / tilt / mobility / storage features
| Canopy tilt adjustment | 25-degree manual collar tilt for directional shading | |
|---|---|---|
| Canopy height adjustment | 300mm vertical height adjustment via pole collar | |
| Top wind vent | Passive air circulation vent reduces wind uplift on canopy | |
| Base compatibility | Fits standard 48mm diameter umbrella poles with locking screw | |
| Canopy fabric removal | Detachable canopy via hub fasteners for cleaning or replacement | |
| Assembly setup | Tool-free assembly of pole sections, canopy and base | |
| Water shedding design | Sloped 8-panel canopy directs rainwater away from shaded area | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
Recommended spaces / users / usage modes
| Residential patio dining | Shades 4-person outdoor dining sets on backyard patios or decks | |
|---|---|---|
| Commercial outdoor seating | Suitable for cafe, bistro or beer garden table shading | |

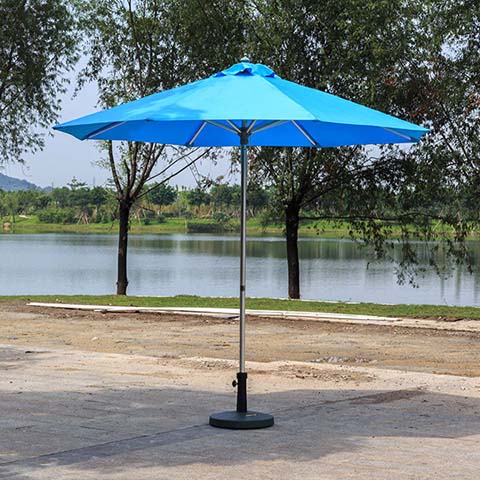

| Lakeside recreational areas | Appropriate for open waterfront leisure zones, matches scene context | |
| Poolside lounge areas | Provides sun protection for poolside chaise lounge setups | |
| Event pop-up shade | Quick setup for temporary outdoor markets, picnics or small events |
EU Market Access Requirements* EN Standards
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
