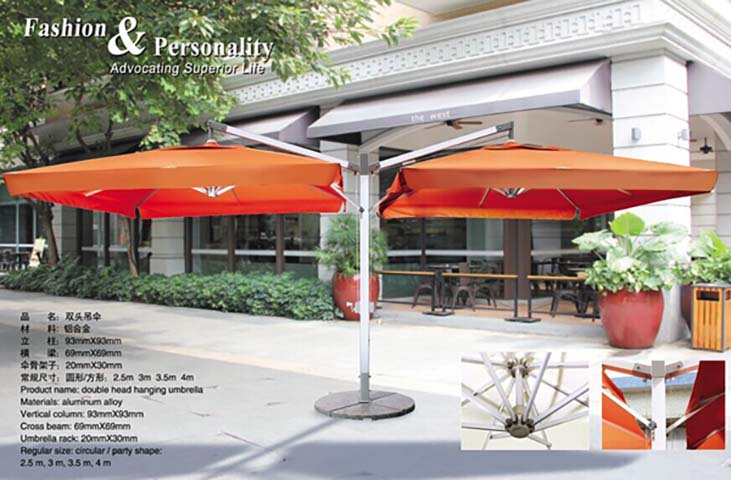

Product supplierDouble-head cantilever aluminum patio umbrella for commercial outdoor dining, Powder-coated extruded aluminum alloy
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 4600 × 3000 × 2450 mm | |
|---|---|---|
| Vertical aluminum column wall thickness | 2.5 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total product gross weight with base | 150 kg | |
|---|---|---|
| Required minimum base counterweight | 90 kg | |
| Recommended maximum wind speed rating | 48 km/h | |
| Canopy fabric UV protection rating | UPF 50+ | |
| Canopy fabric waterproof rating | 300 mm water column | |
| Open/close mechanism cycle life | 10000 operations | |
| Shaded coverage area | 13.8 sqm | |
| Round weighted base diameter | 900 mm | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Main vertical support column | Powder-coated extruded aluminum alloy | |
|---|---|---|
| Dual cantilever cross beams | Anodized brushed aluminum alloy | |
| Umbrella internal rib frame | Extruded aluminum alloy ribs, 20x30mm profile | |
| Canopy shade fabric | 280gsm PU-coated waterproof polyester fabric | |
| Structural connection hardware | 304 stainless steel bolts and pivot joints | |
| Freestanding weighted base | Reinforced concrete composite round weighted plate | |
| Crank lift operation handle | Glass-reinforced nylon crank housing | |
| Canopy fabric surface treatment | Fade-resistant UV-stabilized dye coating | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Dual independent crank lift operation | Manual hand crank opens and closes each canopy independently | |
|---|---|---|
| 360-degree horizontal rotation | Locking rotation mechanism spins full circle around central column | |
| Cantilever tilt adjustment | Step-lock tilt adjusts canopy angle 30degrees for sun tracking | |
| Removable canopy design | Canopy detaches from frame for cleaning or replacement | |
| Quick-connect frame assembly | Tool-free quick-release joints connect pole, beams and ribs | |
| Locking position mechanism | Spring-loaded locking pin secures rotation and tilt positions | |
| Custom logo printing capability | Fabric supports screen-printed branding for commercial properties | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Commercial sidewalk dining areas | Provides unobstructed shade over multiple outdoor restaurant tables | |
|---|---|---|
| Hotel poolside and lounge areas | Covers wide lounge seating zones for guest sun protection | |
| Residential backyard patio spaces | Shades large outdoor dining and lounge sets for home use | |
| Cafe and bistro outdoor seating | Supports branded logo printing for business storefront visibility | |
| Outdoor event and market spaces | 360-degree rotation adjusts shade throughout event hours |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| Outdoor furniture mechanical safety | EN 581:2015 | |
|---|---|---|
| Textile UV protection performance | EN 13758:2001 | |
| Aluminum alloy structural durability | EN 1999:2007 |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| Outdoor furniture structural safety | GB/T 3324 | |
|---|---|---|
| Textile color fastness to light | GB/T 8427 | |
| Metal surface corrosion resistance | GB/T 2008 |
Standardized tender description text
This product must meet the following technical requirements: 1. Outdoor furniture structural safety: GB/T 3324; 2. Textile color fastness to light: GB/T 8427; 3. Metal surface corrosion resistance: GB/T 2008; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
