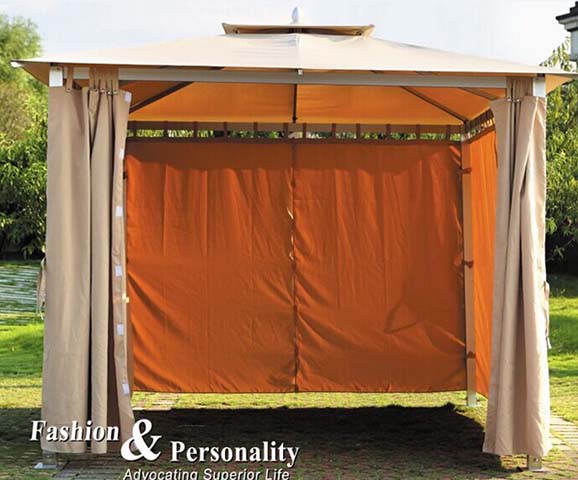

Product supplierDouble-Tier Soft-Top Rectangular Outdoor Patio Gazebo with Full Perimeter Privacy Curtains, Powder-coated alloy steel
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 4000 × 3000 × 3290 mm | |
|---|---|---|
| Overall footprint and peak height | 4000 x 3000 x 3290 mm | |
| Eave clearance height | 2500 mm | |
| Corner post section size | 76 x 76 mm | |
| Corner post wall thickness | 1.1 mm | |
| Upper vent roof dimensions | 1200 x 800 mm | |
| Privacy curtain drop length | 2400 mm | |
| Base anchor plate size | 150 x 150 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Assembled product weight | 115 kg | |
|---|---|---|
| Roof static load capacity | 75 kg/sqm | |
| Recommended maximum occupancy | 8 people | |
| Wind resistance rating | Level 9 (88 km/h) | |
| UV protection rate | 99% | |
| Fabric water column resistance | 1000 mm | |
| Frame rust resistance service life | 5 years | |
| Fabric fade resistance lifespan | 5 years | |
| Central hanging hook load point diameter | 10 mm | |
| Reference Static Load | 150 kg depending on category |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Structural frame | Powder-coated alloy steel | |
|---|---|---|
| Outer roof canopy | 500D PU-coated polyester | |
| Inner roof liner | 180g polyester fabric | |
| Outer corner curtains | 220g opaque polyester | |
| Main privacy curtains | 220g opaque polyester | |
| Curtain track system | Galvanized steel rails | |
| Anchor hardware | Zinc-plated steel stakes and bolts | |
| Roof seam treatment | Heat-sealed waterproof stitching | |
| Curtain fasteners | Nylon/resin zippers and tie-backs | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Double-tier roof ventilation | Central upper vent allows hot air escape, reduces wind uplift | |
|---|---|---|
| Full perimeter curtain system | Removable zippered curtains slide on tracks to fully enclose space | |
| Dual track sidewall design | Independent tracks for privacy curtains and optional mosquito netting | |
| Ground anchoring system | Pre-drilled base plates secure to lawn, concrete or wooden decks | |
| Central hanging point | Integral hook supports light fixtures or small ceiling fans | |
| Curtain tie-back function | Fabric ties hold curtains open for partial shade and airflow | |
| Modular assembly design | Bolt-together frame requires no permanent welding for installation | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Residential backyard lawn installation | Provides permanent shaded gathering space for family outdoor activities | |
|---|---|---|
| Patio or deck placement | Creates covered outdoor dining area adjacent to home exterior | |
| Waterfront garden settings | Suitable for lakeside or riverside recreational shade use | |
| Small outdoor event use | Accommodates casual gatherings, birthday parties or outdoor meals for up to 8 guests | |
| All-season mild climate use | Designed for spring, summer and fall use in regions without heavy snowfall |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| Outdoor furniture seating/standing safety | EN 581:2015 | |
|---|---|---|
| Textile water resistance testing | EN 20811:1992 | |
| UV resistance of outdoor textiles | EN 13758:2003 |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| Outdoor furniture structural safety | GB 28007 | |
|---|---|---|
| Textile UV protection performance | GB/T 18830 | |
| Metal furniture coating durability | GB/T 19281 |
Standardized tender description text
This product must meet the following technical requirements: 1. Outdoor furniture structural safety: GB 28007; 2. Textile UV protection performance: GB/T 18830; 3. Metal furniture coating durability: GB/T 19281; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
