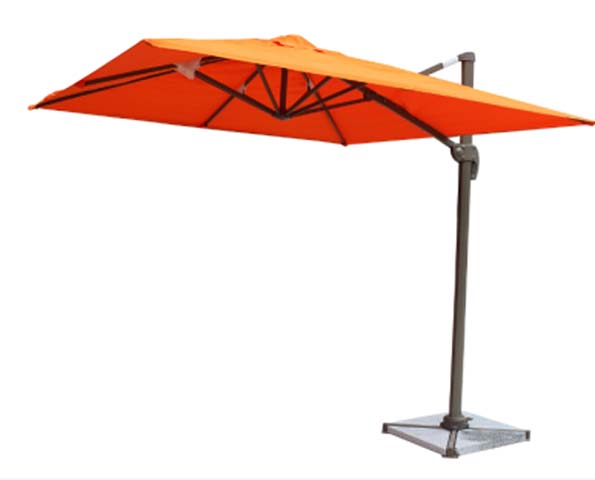

Product supplierTwo-Tone Orange Square Cantilever Patio Umbrella, 280g/m² PA-coated polyester, light orange
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 3050 × 3050 × 2870 mm | |
|---|---|---|
| Canopy edge height above ground | 2100 mm | |
| Support pole profile (rectangular) | 50 x 77 mm, 2.0 mm wall thickness | |
| Umbrella rib cross-section | 24 x 14 mm, 1.0 mm wall thickness, 8 ribs total | |
| Canopy apex vent diameter | 200 mm | |
| Cantilever arm length | 1600 mm | |
| Closed total length (umbrella assembly) | 2200 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total product weight with filled weighted base | 65 kg | |
|---|---|---|
| Umbrella frame weight (without base) | 13.5 kg | |
| Recommended static shade capacity | 6 people | |
| Canopy fabric areal density | 280 g/m² | |
| Canopy UV protection rating | UPF 50+ | |
| Frame corrosion resistance coating durability | 3 years outdoor use | |
| Canopy fade resistance lifespan | 3 years | |
| Recommended maximum safe wind speed | 38 km/h | |
| Weighted base dimensions | 1000 x 1000 x 150 mm | |
| Reference Static Load | 150 kg depending on category |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Canopy outer surface | 280g/m² PA-coated polyester, light orange | |
|---|---|---|
| Canopy underside | 280g/m² PA-coated polyester, deep orange | |
| Support pole and cantilever arm | Powder-coated aluminum alloy, dark bronze finish | |
| Canopy support ribs | Powder-coated carbon steel, 8 units total | |
| Adjustment joint hardware | Stainless steel bolts with ABS engineering plastic connectors | |
| Cross base frame | Powder-coated square steel cross frame, black finish | |
| Weighted base fill material | Sand or water compatible high-density HDPE shell | |
| Joint pivot components | Zinc-plated steel axles with nylon bushings | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Crank-operated open/close mechanism | Side-mounted hand crank opens and closes canopy with 12 rotations fully | |
|---|---|---|
| Vertical canopy tilt adjustment | 90° total tilt range via side handle lock | |
| 360° horizontal rotation | Foot-pedal actuated rotation locks in 8 fixed positions | |
| Apex canopy vent | Fixed open vent at canopy top reduces wind uplift | |
| Detachable canopy design | Canopy fastens to rib frame with hook-and-loop tabs, removable for cleaning | |
| 6 height/angle lock positions | Positive locking notches secure canopy at pre-set heights | |
| Quick-release base attachment | Umbrella pole locks to cross base with a single tightening knob | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Residential patio use | Suitable for backyard dining sets, lounge seating areas and poolside shade | |
|---|---|---|
| Commercial outdoor dining | Applicable for café, restaurant and beer garden seating areas | |
| Poolside sun shading | Waterproof fabric and rust-resistant frame suit wet poolside environments | |
| Garden event shade | Portable weighted base allows temporary placement for weddings and outdoor events | |
| Balcony shade installation | Compact offset pole design fits large balconies without center-pole obstruction | |
| Available color options | Available in orange plus 7 standard outdoor colors (beige, navy, green, red, black, brown, gray) | |
| Recommended warranty | 1 year limited warranty covering frame and mechanism defects |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 1176-1:2017 | Playground equipment safety - general safety requirements, applicable for public space use | |
|---|---|---|
| EN 13772:2003 | Textiles and textile products - burning behaviour of curtains and drapes |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 21944.2-2022 | Outdoor leisure furniture - Umbrellas - Part 2: Mechanical safety requirements for cantilever umbrellas | |
|---|---|---|
| GB 18401-2010 Category C | National general safety technical code for textile products, outdoor use category |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 21944.2-2022: Outdoor leisure furniture - Umbrellas - Part 2: Mechanical safety requirements for cantilever umbrellas; 2. GB 18401-2010 Category C: National general safety technical code for textile products, outdoor use category; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
