PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	3050 × 3050 × 2870 mm
Canopy square coverage	3050 x 3050 mm
Canopy edge clearance above ground	2100 mm
Support pole outer diameter	102 mm
Supporting rib count	8 pieces
Crank handle position above ground	1600 mm
Primary Component Thickness	40 mm according to load-bearing role
Hardware / Moving-part Clearance	5 mm operating clearance

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total product weight with base	58 kg
Required base ballast weight	54 kg
Seating shade capacity	6 people
Fabric UV protection rating	UPF 50+
Fabric surface water repellency	Grade 4 AATCC 22
Fabric fade resistance durability	1000 hours
Maximum recommended operating wind speed	38 km/h
Frame anti-rust coating service life	3 years
Weighted base footprint	1000 x 1000 mm
Weighted base height	120 mm

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Vertical support pole	Powder-coated 1.8mm thick aluminum alloy
Cantilever curved arm	Powder-coated 2.0mm thick aluminum tube
Canopy support ribs	Powder-coated 1.2mm thick steel ribs
Canopy top fabric	281 gsm solution-dyed polyester with PA coating
Canopy underside fabric	281 gsm solution-dyed beige polyester
Canopy vent panel	Breathable woven polyester mesh
Crank mechanism housing	Reinforced nylon with steel internal gears
Weighted base shell	Matte black UV-stabilized HDPE resin
Base fill material	High-density concrete composite
Hardware fasteners	Stainless steel 304 grade bolts and pins
Primary Connector Specification	Reference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Canopy opening mechanism	Side-mounted hand crank lift
Canopy tilt adjustment	6 locked angle positions via crank
Canopy rotation function	360 degree smooth rotation around vertical pole
Top canopy vent	Built-in passive air vent
Base installation	Freestanding pre-filled weighted base
Canopy fabric replacement	Detachable fabric with rib pocket attachment
Locking mechanism	Auto-lock at each tilt/rotation position
Winter storage compatibility	Fits standard 3m cantilever umbrella protective covers
Reference Adjustment / Operating Range	100 mm or 120° where applicable

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Packaging Volume	0.8 m³/set
Reference Packaged Gross Weight	120 kg/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Residential patio application	Backyard dining sets seating 6people
Poolside lounging application	Outdoor chaise lounge seating areas
Commercial outdoor seating	Cafe and restaurant sidewalk patio zones
Garden leisure space	Lawn and garden conversation seating areas
Deck installation suitability	Wood and composite raised deck surfaces
Sun angle adaptability	Variable daily sun position throughout seasons

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Outdoor furniture mechanical safety	EN 581:2019
Textiles UV protection performance	EN 13758:2001+A1:2006

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Outdoor furniture safety general requirement	GB 28007
Textile color fastness to light	GB/T 8427
Textile water repellency test	GB/T 4744

Standardized tender description text

This product must meet the following technical requirements:
1. Outdoor furniture safety general requirement: GB 28007;
2. Textile color fastness to light: GB/T 8427;
3. Textile water repellency test: GB/T 4744;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · CU-SQ10-CANT-UMB-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · CU-SQ10-CANT-UMB-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · CU-SQ10-CANT-UMB-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

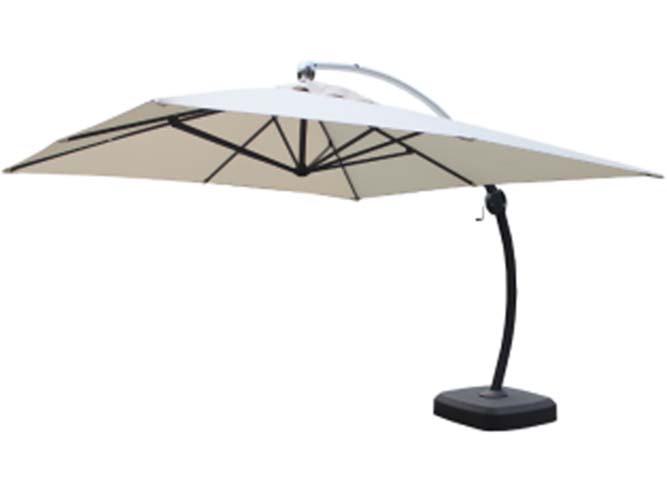

The Square Dual-Tone Curved-Arm Outdoor Cantilever Patio Umbrella with Weighted Base (model CU-SQ10-CANT-UMB-01) is an unbranded freestanding shade solution designed for flexible outdoor use, defined by a balanced, streamlined silhouette that avoids obstructing sightlines across gathering spaces. Its offset cantilever structure supports a perfectly square canopy, with an 8-rib framework creating taut, even fabric tension across the full coverage area. The dual-tone design pairs a coated upper canopy surface with a soft beige underside, accented by a breathable mesh vent at the canopy apex, while the smoothly curved support arm connects to a thick vertical support pole anchored by a low-profile matte black weighted base.
Durable, weather-facing materials form the core of the umbrella’s construction. The frame uses powder-coated aluminum alloy for the vertical pole and curved cantilever arm, paired with powder-coated steel canopy ribs for rigid support, with component thickness calibrated to load-bearing requirements. The canopy uses 281 gsm solution-dyed polyester, with a PA coating on the top surface delivering UPF 50+ UV protection, Grade 4 AATCC 22 water repellency, and 1000 hours of fade resistance. The crank mechanism uses reinforced nylon housing with internal steel gears, and the pre-filled base combines a UV-stabilized HDPE resin shell with high-density concrete composite ballast to secure the structure.
Practical functions are engineered for easy, adaptable use. A side-mounted hand crank positioned at accessible standing height operates the canopy lift, with 6 locked tilt positions and smooth 360-degree rotation around the vertical pole, both featuring auto-lock at every adjusted position to track shifting sun angles across seasons. The built-in top vent allows passive air flow to reduce wind lift, the detachable canopy attaches via rib pockets for straightforward fabric replacement, and the freestanding pre-filled base eliminates the need for permanent surface anchoring. The umbrella delivers shade for up to 6 people, with a 2100 mm canopy edge clearance that accommodates standard seating heights without obstruction.
This umbrella fits a wide range of outdoor settings, including residential backyards paired with 6-person dining sets, poolside chaise lounge zones, cafe and restaurant sidewalk patios, garden conversation areas, and wood or composite raised deck surfaces. Procurement teams should note the unit ships in 2 cartons per set, with a packaged gross weight of 120 kg and 0.8 m³ packaging volume, requiring 40 minutes of assembly per unit. Operation should adhere to the maximum recommended 38 km/h wind speed to prevent structural damage, and the 58 kg total product weight relies on the integrated 54 kg base ballast for stable freestanding placement.
