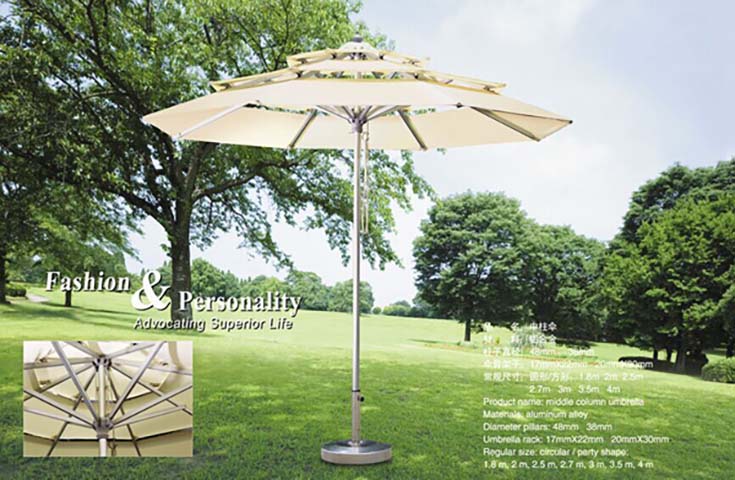

Product supplierDouble-Vented Aluminum Center-Pole Round Patio Umbrella with Weighted Base, Powder-coated anodized aluminum alloy, 1mm wall
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2700 × 2700 × 2700 mm | |
|---|---|---|
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| total product weight with marble base | 35 kg | |
|---|---|---|
| umbrella frame net weight without base | 12 kg | |
| canopy fabric areal weight | 280 gsm | |
| main rib midpoint static load capacity | 50 kg | |
| fabric tear strength | 100 N | |
| fabric color fastness grade | 4 | |
| UV protection rating | UPF 50+ | |
| recommended shaded seating capacity | 6 people | |
| weighted round base diameter | 500 mm | |
| Reference Static Load | 150 kg depending on category |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| center support pole | Powder-coated anodized aluminum alloy, 1mm wall | |
|---|---|---|
| internal support ribs | Powder-coated aluminum alloy, 1mm wall, 8 radial ribs | |
| canopy fabric | Solution-dyed polyester with PU waterproof coating | |
| upper vent canopy panel | Same coated polyester as main canopy, stitched seams | |
| stabilizing base | Polished solid weighted marble composite with non-slip pad | |
| opening mechanism hardware | Corrosion-resistant stainless steel pulley and braided cord | |
| plastic connector components | UV-stabilized ABS engineering plastic | |
| canopy edge binding | Reinforced polyester webbing stitched at 8mm seam pitch | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| opening mechanism | Pulley pull-cord lift system locks at full open position | |
|---|---|---|
| wind ventilation design | Double-tier top vent allows air passage to reduce wind lift | |
| frame knockdown design | Pole segments detach for compact transport and storage | |
| canopy replacement compatibility | Fits standard 48mm diameter center pole replacement canopies | |
| tilt function | No integrated tilt mechanism, fixed upright shade position | |
| base mounting | Pole inserts into recessed weighted base without permanent bolting | |
| custom branding support | Supports custom logo printing on canopy valance for commercial use | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| residential patio shading | Suitable for backyard round dining sets and lounge seating | |
|---|---|---|
| commercial outdoor dining | Suitable for cafe, restaurant, and hotel outdoor seating areas | |
| park and event shading | Suitable for lawn events, garden parties, and market stalls | |
| poolside lounge shading | Suitable for pool deck placement with corrosion-resistant frame | |
| resort and villa outdoor space | Suitable for high-end hospitality outdoor leisure zones |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| Outdoor furniture safety mechanical requirements | EN 581:2019 | |
|---|---|---|
| Textiles UV protection performance | EN 13758:2019 |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| Outdoor furniture safety general requirement | GB 28007 | |
|---|---|---|
| Textile color fastness to light | GB/T 8427 |
Standardized tender description text
This product must meet the following technical requirements: 1. Outdoor furniture safety general requirement: GB 28007; 2. Textile color fastness to light: GB/T 8427; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
