PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2800 × 420 × 420 mm
Overall unit dimensions (fully extended)	2800 x 420 x 420 mm
Retracted overall unit length	2000 mm
Individual central drawer internal dimensions	560 x 300 x 150 mm
Left/right open end cubby internal dimensions	400 x 380 x 280 mm
Tabletop thickness	30 mm
Carcass side panel thickness	25 mm
Back panel thickness	5 mm
Adjustable shelf thickness for open cubbies	18 mm
Floor clearance under unit base	10 mm
Cable management opening diameter	60 mm
Maximum supported TV base width	2400 mm
Carcass Panel Thickness	25 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net product weight	75 kg
Tabletop static load capacity	75 kg
Drawer slide cycle rating	50000 cycles
Extension rail cycle rating	10000 cycles
Maximum supported TV screen size	110 in
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Angle / Life	165°; 80000 cycles
Anti-tip Fixing Reference	Products above 1200 mm should use at least 2 wall fixing points
Recommended Procurement Warranty	Carcass 5 years; hardware 3 years; finish 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Tabletop surface	Walnut wood veneer over engineered wood core, matte scratch-resistant polyurethane finish
Drawer fronts and frames	Solid rubberwood framing with walnut stain, matched grain alignment
Carcass core material	E1 grade medium density fiberboard with laminated wood finish
Drawer slides	Cold-rolled steel ball-bearing soft-close slides, zinc-plated corrosion resistant finish
Telescopic extension rails	1.2 mm thick cold-rolled steel telescoping glides, powder-coated black
Drawer pulls	Solid wood horizontal bar handles, walnut stain matched to unit finish
Back panel	5 mm thick hardboard with pre-cut cable openings, matte black finish
Open shelf base panels	18 mm thick laminated particleboard, walnut finish matching carcass
Foot pads	Non-slip polyethylene pads under frame corners, floor protection
Edge Band Thickness	2 mm
Primary Connector Specification	Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Bidirectional telescopic extension	Left and right end sections slide independently to adjust length between 2000 mm and 2800 mm
Soft-close drawer operation	Three central drawers use ball-bearing slides that close softly without slamming
Open media storage bays	Two open end cubbies provide unobstructed storage for AV receivers, set-top boxes and media accessories
Integrated cable management	Rear cable cutouts route power and AV cords behind stored equipment to reduce clutter
Ventilation for electronics	Open shelf design provides passive airflow to prevent overheating of active media devices
Floor-standing installation	Unit rests directly on floor with no wall anchoring required for stable use
Smooth length adjustment	Telescopic rails require no tools to adjust unit length for different TV sizes
Cable / Vent Opening Reference	80 mm diameter; recommend 4rear cable/vent openings

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Living room media wall placement	Positioned below wall-mounted or stand-placed flat screen televisions for organized AV storage
Apartment small to large space adaptation	Extendable length fits studio apartment compact layouts up to open-plan wide TV walls
Open-plan lounge decorative display	Wide tabletop supports decorative vases, books, and framed art alongside media equipment
Media equipment organization	Open bays hold routers, game consoles and streaming devices while drawers store remotes and media accessories
Walnut-toned interior matching	Warm wood finish pairs with neutral gray walls, fabric sofas and light wood flooring for cohesive decor

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 12521:2015	Furniture for domestic use, strength and safety requirements for storage units
EN 14749:2016	Domestic and kitchen storage units, safety and performance testing requirements
EN 71-3:2019	Safety of toys, migration of certain elements, applicable to surface coating safety

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to structural safety and finish performance
GB 18584-2001	Limit of harmful substances in wooden furniture, applicable to formaldehyde emission limits for substrate
GB/T 4897.3-2003	Particleboard specifications for furniture use, applicable to carcass core material performance

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to structural safety and finish performance;
2. GB 18584-2001: Limit of harmful substances in wooden furniture, applicable to formaldehyde emission limits for substrate;
3. GB/T 4897.3-2003: Particleboard specifications for furniture use, applicable to carcass core material performance;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · TVC-EXT-WB-3D2O

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · TVC-EXT-WB-3D2O

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · TVC-EXT-WB-3D2OOpen Export Tool

Quick Actions

Post an RFQ

Product Description

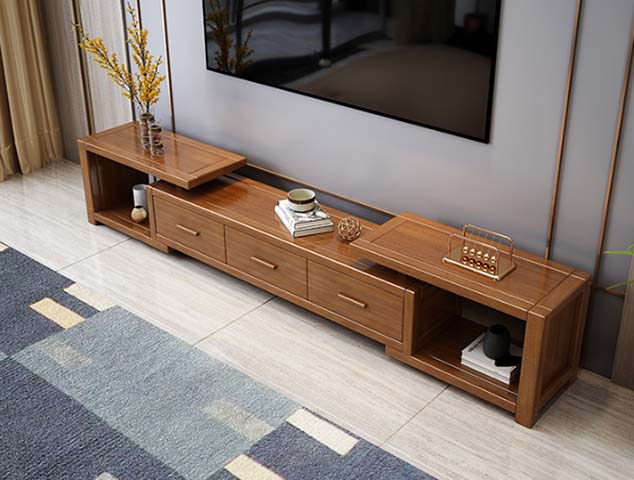

The Walnut Brown Extendable TV Media Console with 3 Central Drawers and Dual Open End Shelves is a floor-standing media cabinet designed for flexible, organized home media setups. It features a warm walnut wood finish with a matte, scratch-resistant polyurethane tabletop surface, presenting a cohesive, matched grain appearance across solid rubberwood drawer fronts, stained to align with the unit’s overall walnut tone. The form balances closed storage and open display: three central drawers sit between two open end cubbies, with a smooth, uniform profile that adapts seamlessly as length adjusts. The unit extends bidirectionally, with independent left and right end sections sliding on powder-coated black cold-rolled steel telescopic rails to adjust length from 2000 mm to 2800 mm, with no tools required for adjustments. Construction prioritizes durability: the core uses E1 grade medium density fiberboard with a laminated wood finish, paired with a 30 mm thick tabletop, 25 mm thick carcass side panels, 18 mm thick adjustable open cubby shelves, and a 5 mm hardboard back panel pre-cut for cable management. Cold-rolled steel ball-bearing soft-close drawer slides carry a 50000-cycle rating, supporting 45 kg per pair, while extension rails hold a 10000-cycle rating. The tabletop supports 75 kg of static load, suitable for televisions up to 110 inches, and each open shelf supports 30 kg of distributed weight. Non-slip polyethylene foot pads protect flooring during use. Functional design supports seamless media organization: soft-close drawers operate without slamming to store remotes, media accessories, and small household items, while open cubbies accommodate AV receivers, set-top boxes, game consoles, routers, and streaming devices. The open shelf design enables passive airflow to prevent electronics overheating, and rear cable cutouts route power and AV cords to reduce visible clutter. The wide tabletop also holds decorative vases, books, and framed art alongside media equipment. The console fits a full range of living spaces, from compact studio apartment layouts when retracted to wide open-plan lounge media walls when fully extended, with its warm walnut tone pairing cohesively with neutral gray walls, fabric sofas, and light wood flooring. For procurement, note the unit ships as one set across multiple cartons with a total packaged gross weight of 100 kg, requires 40 minutes of assembly per set, sits directly on the floor with no wall anchoring required for stable use, and carries no external brand labeling.

Walnut Brown Extendable TV Media Console with 3 Central Drawers and Dual Open End Shelves Specifications
