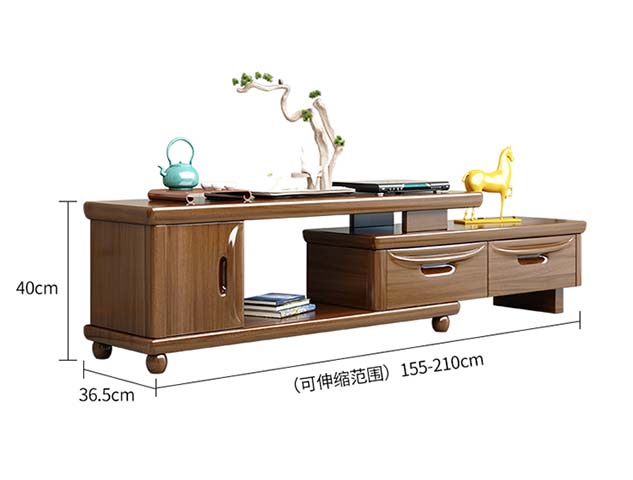

Product supplierWalnut Tone Extendable TV Media Console with Raised Shelf, 18mm E0-grade engineered wood with walnut wood veneer, water-based lacquer finish
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2100 × 365 × 400 mm | |
|---|---|---|
| Retracted overall length | 1550 mm | |
| Left single-door cabinet internal size | 450 x 320 x 280 mm | |
| Middle open shelf internal size | 500 x 320 x 200 mm | |
| Single right drawer internal size | 520 x 270 x 120 mm | |
| Raised upper display shelf depth | 300 mm | |
| Bun foot height | 50 mm | |
| Cable management cutout diameter | 60 mm | |
| Top panel thickness | 25 mm | |
| Back panel thickness | 9 mm | |
| Adjustable shelf height in left cabinet | 3 positions, 70 mm spacing | |
| Carcass Panel Thickness | 25 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total static top load capacity | 150 kg | |
|---|---|---|
| Maximum supported TV screen size | 100 inches | |
| Drawer slide cycle rating | 50000 open/close cycles | |
| Door hinge cycle rating | 80000 open/close cycles | |
| Surface scratch resistance | Class 2 wear rating, 400 abrasion cycles | |
| Net product weight | 62 kg | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Top and side carcass panels | 18mm E0-grade engineered wood with walnut wood veneer, water-based lacquer finish | |
|---|---|---|
| Back panel | 9mm multi-layer engineered wood, walnut veneer match | |
| Support bun feet | Solid walnut-stained hardwood, rounded profile, moisture-proof felt pads | |
| Drawer slides | Cold-rolled steel soft-close silent buffer slides, zinc-plated finish | |
| Door and drawer handles | Curved integrated metal pulls with walnut wood inlay | |
| Cabinet door hinge | Cold-rolled steel soft-close concealed hinge, 110-degree opening angle | |
| Surface finish | Scratch-resistant, water-resistant matte walnut lacquer, rounded edge detailing | |
| Internal shelf panels | 15mm engineered wood with walnut veneer, adjustable position | |
| Telescoping extension frame | Powder-coated cold-rolled steel inner sliding rails | |
| Edge Band Thickness | 2 mm | |
| Primary Connector Specification | Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Telescoping length adjustment | Two-section sliding frame, adjustable from 1550mm to 2100mm to fit different TV sizes | |
|---|---|---|
| Drawer operation | Two right-side drawers with soft-close action, pull to open with integrated curved handles | |
| Left cabinet access | Single hinged door with concealed soft-close hinge, encloses adjustable internal shelf | |
| Middle open storage | Fixed lower open bay for media devices, books, or small decor items | |
| Raised upper shelf | Fixed elevated shelf on left section for set-top boxes, routers, or display decor | |
| Cable management | Rear pre-drilled 60mm cutouts behind open bay and cabinet for wire routing | |
| Floor protection | Felt pads under all bun feet to prevent hard floor scratching | |
| Leveling adjustment | Minor height adjustment via integrated foot pads for uneven floors | |
| Cable / Vent Opening Reference | 80 mm diameter; recommend 4rear cable/vent openings |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Living room media placement | Positioned below wall-mounted or standing televisions up to 100 inches for AV storage, adjusted length to fit room layout | |
|---|---|---|
| Open-plan living space | Telescoping length adapts to variable wall widths in apartments or open lounge areas | |
| Media device organization | Open middle bay supports routers, set-top boxes, and game consoles with cable access | |
| Mixed decor storage | Enclosed cabinet and drawers store remote controls, media accessories, and small household items out of sight | |
| Walnut wood interior schemes | Warm walnut tone complements mid-century modern, Chinese traditional, and contemporary living room decor | |
| Low-height media setups | 400mm total height maintains unobstructed TV viewing line for seated sofa positions |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 312:2010 | Particleboard specifications, applicable to engineered wood panel structural performance | |
|---|---|---|
| EN 14749:2016 | Domestic and kitchen storage units and worktops - safety requirements, applicable to storage stability | |
| EN 13722:2004 | Furniture - test methods for strength and durability of cabinets, applicable to structural load testing |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to dimensional tolerance and surface quality | |
|---|---|---|
| GB 18584-2001 | Indoor decorating and refurbishing materials - limit of harmful substances for wood furniture, formaldehyde emission limit | |
| GB/T 4893.8-2013 | Test for surface wear resistance of furniture finishes, applicable to veneer lacquer durability |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to dimensional tolerance and surface quality; 2. GB 18584-2001: Indoor decorating and refurbishing materials - limit of harmful substances for wood furniture, formaldehyde emission limit; 3. GB/T 4893.8-2013: Test for surface wear resistance of furniture finishes, applicable to veneer lacquer durability; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
