PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2200 × 510 × 600 mm
Leg height	150 mm
Top panel thickness	30 mm
Carcass side panel thickness	25 mm
Back panel thickness	9 mm
Adjustable shelf thickness	18 mm
Central open shelf internal dimensions	800 x 420 x 200 mm
Central drawer internal dimensions	800 x 380 x 150 mm
Side closed cabinet internal dimensions	620 x 440 x 380 mm
Cable opening diameter	60 mm
Rounded corner radius	50 mm
Floor clearance under cabinet	135 mm
Carcass Panel Thickness	25 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Top surface static load capacity	50 kg
Hinge cycle rating	50000 open/close cycles
Drawer slide cycle rating	30000 open/close cycles
Product net weight	70 kg
Applicable television size	75 inch
Warranty period	3 years
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Angle / Life	165°; 80000 cycles
Anti-tip Fixing Reference	Products above 1200 mm should use at least 2 wall fixing points

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Primary structural frame	Imported solid rubberwood
Top surface finish	Walnut-brown NC wood lacquer
Drawer side panels	Solid pine wood
Drawer bottom panel	12mm multi-layer solid wood panel
Decorative carvings	Solid rubberwood hand-relief detailing
Cabinet back panel	9mm hardwood plywood
Support legs	Solid rubberwood block legs
Door hinges	Cold-rolled steel concealed hinges
Edge treatment	Sanded rounded corners with no sharp edges
Edge Band Thickness	2 mm
Primary Connector Specification	Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Storage configuration	Two side closed cabinets, one central open shelf, one central drawer
Door operation	Side-hinged swing doors open outward for full cabinet access
Drawer operation	Pull-out central drawer stores small media accessories and remotes
Cable management	Rear pre-cut openings route power and AV cables without pinching
Ventilation design	Open shelf rear gap provides passive airflow for media devices
Assembly requirement	Only block legs require attachment upon delivery
Surface protection	Lacquer finish resists daily water rings and minor abrasions
Anti-tip feature	Wall anchor strap included to secure unit to wall for safety
Cable / Vent Opening Reference	80 mm diameter; recommend 4rear cable/vent openings

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Primary application	Residential living room placed under wall-mounted or stand-mounted televisions
Secondary use	Dining room sideboard for tableware and serving item storage
Recommended interior style	Traditional Chinese, new Chinese, classic wooden home interiors
Placement requirement	Position against flat interior wall with clearance for rear cable access
Compatible users	Households requiring both media display and concealed general storage
Color option availability	Walnut brown, cherry brown, rosewood traditional wood finishes

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 14749:2016	Domestic and kitchen storage units worktops safety requirements, applicable for stability testing
EN 71-3:2019	Migration of certain elements for furniture surface finishes, applicable for coating safety

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable for structural quality verification
GB 18584-2001	Indoor decoration material formaldehyde emission limit for wooden furniture, applicable for safety acceptance

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for structural quality verification;
2. GB 18584-2001: Indoor decoration material formaldehyde emission limit for wooden furniture, applicable for safety acceptance;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · RW-CHN-TV-2200

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · RW-CHN-TV-2200

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · RW-CHN-TV-2200Open Export Tool

Quick Actions

Post an RFQ

Product Description

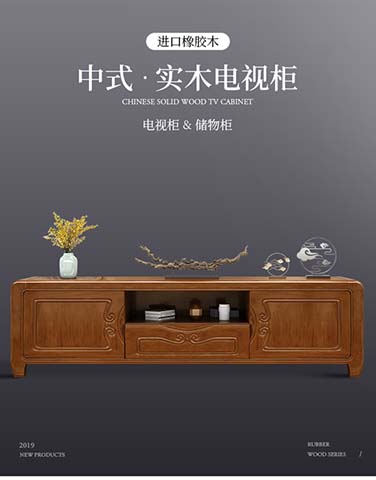

The Chinese Style Solid Rubberwood TV Media Console with Storage, model RW-CHN-TV-2200, is an unbranded low-profile media unit defined by traditional Chinese design cues. Its visual profile features clean, structured lines accented by hand-relief solid rubberwood decorative carvings, sanded rounded corners with no sharp edges, and a smooth wood finish offered in walnut brown, cherry brown, and rosewood traditional wood tones. The layout pairs two side closed cabinets with a central open shelf and a central pull-out drawer, balanced on sturdy solid rubberwood block legs for a grounded, classic silhouette. Built for long-term residential and light commercial use, the unit’s primary structural frame uses imported solid rubberwood, topped with a 30mm thick top panel finished in walnut-brown NC wood lacquer that resists daily water rings and minor abrasions. Side panels measure 25mm thick, while the cabinet back uses 9mm hardwood plywood, adjustable interior shelves are 18mm thick, drawer sides are constructed from solid pine, and drawer bottoms use 12mm multi-layer solid wood panels. Cold-rolled steel concealed hinges support the outward-swinging side cabinet doors, rated for 50000 open/close cycles, while drawer slides carry a 30000 open/close cycle rating. Practical functionality is integrated throughout the design: the central open shelf offers passive rear airflow for media devices, rear pre-cut openings route power and AV cables without pinching, the central pull-out drawer stores small media accessories and remotes, and adjustable shelves within the side closed cabinets accommodate varied storage needs. The top surface supports a 50kg static load, suitable for 75-inch televisions, while each shelf holds a 30kg distributed load. Only the block legs require attachment upon delivery, with an assembly time of 40 minutes per set. This console is ideal for residential living rooms positioned under wall-mounted or stand-mounted televisions, and also functions as a dining room sideboard for tableware and serving item storage, fitting seamlessly in traditional Chinese, new Chinese, and classic wooden interior schemes. It requires placement against a flat interior wall with clearance for rear cable access. Procurement teams should note the unit ships across multiple cartons, carries a 3-year warranty, and supports households seeking a balance of media display and concealed general storage.

Chinese Style Solid Rubberwood TV Media Console with Storage Specifications
