PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2000 × 400 × 450 mm
Exposed leg height	200 mm
Under-unit floor clearance	180 mm
Top panel overhang	20 mm
Top panel thickness	25 mm
Carcass side panel thickness	18 mm
Drawer internal dimensions (per drawer)	520 x 340 x 120 mm
Middle cabinet internal dimensions	680 x 340 x 280 mm
Middle door slat gap width	12 mm
Cable management cutout diameter	60 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Top surface static load capacity	136 kg
Maximum supported TV screen size	85 inch
Product net weight	60 kg
Drawer slide cycle rating	50000 open/close cycles
Door hinge cycle rating	80000 open/close cycles
Surface abrasion resistance	2000 rub cycles
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Angle / Life	165°; 80000 cycles
Anti-tip Fixing Reference	Products above 1200 mm should use at least 2 wall fixing points

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Top panel	Solid oak wood with rounded beveled edge, matte clear finish
Carcass frame and panels	Rubberwood core with oak veneer, matte natural finish
Legs	Solid oak wood, tapered splayed cylindrical design
Drawer fronts and cabinet door	Oak veneer over engineered wood substrate, recessed half-moon pulls
Middle cabinet door slats	Solid oak vertical slats with uniform gaps for ventilation
Drawer internals	Pine wood drawer boxes with smooth sanded interior
Hardware	Zinc alloy concealed soft-close hinges and full-extension drawer glides
Back panel	3mm thick hardboard with pre-cut cable management openings
Leg feet pads	Felt anti-scratch floor protection pads
Edge Band Thickness	2 mm
Primary Connector Specification	Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Drawer operation	Four full-extension soft-close drawers with recessed half-moon wood pulls, two stacked per side
Middle cabinet access	Single hinged slatted door opens to one adjustable-height shelf for AV components
Ventilation function	Vertical slat gaps on middle door provide passive airflow to prevent AV device overheating
Cable management	Two rear 60mm diameter cutouts route power and AV cables between devices and wall outlets
Shelf adjustability	Middle cabinet shelf supports 3 height positions at 50mm increments to fit different device heights
Floor compatibility	180mm under-unit clearance allows most robotic vacuum cleaners to pass under for cleaning
Surface maintenance	Matte scratch-resistant finish wipes clean with dry or slightly damp microfiber cloth
Cable / Vent Opening Reference	80 mm diameter; recommend 4rear cable/vent openings

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Shipping carton dimensions	2050 x 480 x 220 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Living room primary use	Placed against a sofa-facing wall to support flat-screen TVs and store media devices, remotes and decor
Bedroom secondary use	Positioned at foot of bed or against bedroom wall as a low media storage unit for smaller bedroom TVs
Small apartment suitability	2000mm width fits open-plan and compact living spaces without visual bulk
Style matching	Coordinates with Nordic, mid-century modern, Japandi and minimalist interior design schemes
User recommendation	Ideal for residential users seeking concealed media storage with ventilated AV compartment without open dust-collecting shelves
Recommended pairing	Pairs with matching light oak coffee tables, neutral fabric sofas and light wood flooring for cohesive living room sets

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 14749:2016	Domestic and kitchen storage units and worktops safety requirements, applicable for structural stability testing
EN 12521:2015	Furniture strength, durability and safety for domestic seating adjacent storage units
EN 717-1:2004	Wood-based panels formaldehyde emission determination, applicable for panel material E1 grade validation

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable for dimensional and structural quality checks
GB 18584-2001	Indoor decorating and refurbishing materials limit of harmful substances for wooden furniture, applicable for formaldehyde emission testing
GB/T 4893.8-2013	Furniture surface test for abrasion resistance, applicable for finish durability validation

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for dimensional and structural quality checks;
2. GB 18584-2001: Indoor decorating and refurbishing materials limit of harmful substances for wooden furniture, applicable for formaldehyde emission testing;
3. GB/T 4893.8-2013: Furniture surface test for abrasion resistance, applicable for finish durability validation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · TVC-SLD-4DR-2000

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · TVC-SLD-4DR-2000

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · TVC-SLD-4DR-2000Open Export Tool

Quick Actions

Post an RFQ

Product Description

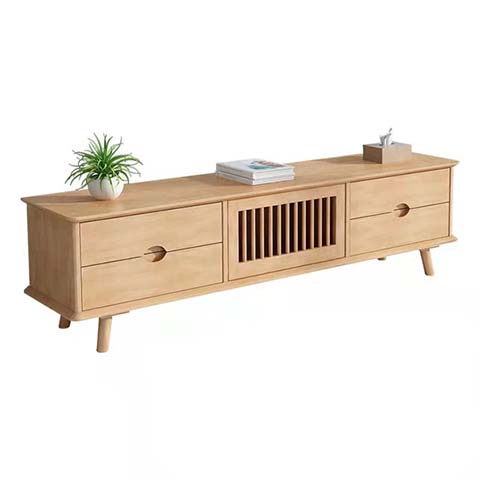

This Scandinavian light oak wooden TV stand blends understated, functional design with practical storage tailored for modern media setups, featuring a low-profile silhouette defined by clean lines, a balanced layout, and warm natural wood tones. Its form splits storage evenly across two side banks of drawers and a central cabinet, elevated on solid tapered splayed cylindrical oak legs that create open space beneath the unit, while the solid oak top panel features softly rounded beveled edges for a polished, approachable look. Recessed half-moon pulls on drawer fronts and the central cabinet door maintain a smooth, uncluttered facade, paired with vertical solid oak slats on the central door that add subtle textural interest without disrupting the minimalist aesthetic. Construction combines durable, thoughtfully selected materials: the top panel and legs are crafted from solid oak with a matte clear natural finish, while the carcass uses a rubberwood core with oak veneer for structural stability, finished in a matching matte natural coating. Drawer boxes are built from smoothly sanded pine, paired with zinc alloy concealed soft-close hinges and full-extension drawer glides rated for repeated long-term use. The central door’s solid oak slats are spaced for consistent airflow, the back panel is fitted with pre-cut cable management openings, and leg bases include felt pads to prevent floor scuffs. The unit’s matte surface resists abrasion and wipes clean easily with a dry or slightly damp microfiber cloth for simple upkeep. Functionally, the stand supports flat-screen TVs up to 85 inches, with a top surface static load capacity suitable for televisions and decorative accents. Four full-extension soft-close drawers, stacked two per side, offer enclosed storage for media accessories, remotes, and household items, while the central slatted door opens to an adjustable-height shelf with three position settings to accommodate AV components of varying sizes. The slatted door gaps provide passive ventilation to prevent device overheating, and rear cable cutouts keep wiring tidy between devices and wall outlets. The 180mm under-unit clearance allows most robotic vacuums to pass underneath for unobstructed floor cleaning. This piece fits equally well in residential living rooms, positioned against a sofa-facing wall as a primary media hub, or in bedrooms placed at the foot of the bed or along a wall for smaller TV setups. Its 2000mm width suits both open-plan and compact small apartment spaces without adding visual bulk, and it coordinates seamlessly with Nordic, mid-century modern, Japandi, and minimalist interiors, pairing naturally with matching light oak coffee tables, neutral fabric sofas, and light wood flooring for a cohesive room design. For procurement, note the unit ships across multiple cartons with a total packaged gross weight of 100kg per set, with an assembly time of 40 minutes per unit. It is ideal for buyers seeking enclosed, dust-minimizing media storage with a dedicated ventilated compartment for AV equipment, rather than open-shelf console designs.

Scandinavian Light Oak Wooden TV Stand with Slatted Door and 4 Drawers Specifications
