Automatic mm / inch conversion · Core engineering specifications
| Overall extended dimensions | 2800 x 460 x 480 mm | |
|---|---|---|
| Overall retracted length | 2000 mm | |
| Drawer internal dimensions (each) | 560 x 300 x 150 mm | |
| Top panel thickness | 30 mm | |
| Leg height (floor to bottom of cabinet) | 80 mm | |
| Cable management opening diameter | 60 mm | |
| Carcass side panel thickness | 25 mm | |
| Back panel thickness | 9 mm | |
| Extension slide overlap length | 800 mm | |
| Drawer front panel thickness | 20 mm | |
| Carcass Panel Thickness | 25 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
| Top surface static load capacity | 80 kg | |
|---|---|---|
| Maximum supported TV screen size | 100 in | |
| Net product weight | 73 kg | |
| Drawer slide cycle rating | 50000 cycles | |
| Finish scratch resistance rating | Class 2 | |
| Top panel water resistance duration | 24 hours | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points |
Core acceptance fields · Panels / hardware / frame / upholstery

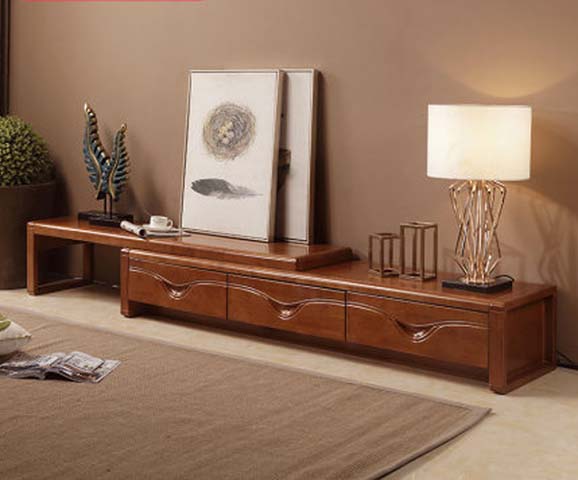

| Top surface | Walnut-toned solid rubberwood with clear satin polyurethane finish | |
|---|---|---|
| Drawer fronts | Solid wood with recessed wave carving and matching walnut finish | |
| Carcass frame | Solid wood frame construction with mitered corner joints | |
| Drawer slides | Cold-rolled steel soft-close full-extension telescoping slides | |
| Back panel | Medium-density fiberboard with matching wood veneer | |
| Internal drawer bottoms | Laminated hardboard panels | |
| Drawer pulls | Integral carved wood pulls with polished metallic accent trim | |
| Extension tracks | Powder-coated steel nested sliding tracks for length adjustment | |
| Coating finish | Low-VOC scratch-resistant polyurethane topcoat | |
| Edge Band Thickness | 2 mm | |
| Primary Connector Specification | Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
Adjustment / rotation / tilt / mobility / storage features
| Length adjustment | Manual telescoping nested extension from 2000 mm to 2800 mm to fit variable wall lengths | |
|---|---|---|
| Drawer operation | Three full-width drawers operate on soft-close slides with integrated carved pulls | |
| Cable management | Rear 60mm diameter cutouts allow routing for TV, audio and power cables | |
| Storage configuration | Three equal-sized enclosed drawer compartments hide remote controls, media and small items | |
| Installation type | Free-standing floor placement positioned flush against living room walls | |
| Surface clearance | 80 mm open gap below cabinet allows floor cleaning access around base | |
| Extension locking | Friction hold sliding tracks keep extended sections aligned without sagging | |
| Drawer soft-close | Self-closing slide mechanism pulls drawers fully shut from 50 mm open to avoid slamming | |
| Cable / Vent Opening Reference | 80 mm diameter; recommend 4rear cable/vent openings |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
| Living room main wall placement | Positioned below wall-mounted or stand-mounted televisions for media device support | |
|---|---|---|
| Media accessory storage | Enclosed drawers store remote controls, game consoles, media discs and AV cables | |
| Variable wall length adaptation | Extendable length fits wall spaces from 2 meters up to 2.8 meters for flexible room layouts | |
| Matching wood furniture sets | Walnut wood finish coordinates with matching solid wood coffee tables, sideboards and display cabinets | |
| Residential apartment use | Free-standing installation without permanent wall fixing suits rental and owned homes | |
| Open display space | Wide top surface supports decorative objects, table lamps, framed art and media equipment |
EU Market Access Requirements* EN Standards
| EN 312:2010 | Particleboard specifications, applicable for structural composite panel performance if used | |
|---|---|---|
| EN 14749:2016 | Domestic and kitchen storage units and worktops - safety requirements, applies to storage furniture stability | |
| EN 13722:2004 | Furniture - assessment of surface resistance to cold liquids, applies to finished wood surface performance |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to case good construction and finish quality | |
|---|---|---|
| GB 18584-2001 | Indoor decorating and refurbishing materials - limit of harmful substances of wooden furniture, applies to formaldehyde emissions | |
| GB/T 4897.3-2003 | Particleboard for furniture use, applicable if composite wood panels are used in carcass construction |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to case good construction and finish quality; 2. GB 18584-2001: Indoor decorating and refurbishing materials - limit of harmful substances of wooden furniture, applies to formaldehyde emissions; 3. GB/T 4897.3-2003: Particleboard for furniture use, applicable if composite wood panels are used in carcass construction; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
