Name: Chinese Style Solid Rubberwood TV Media Console with Drawers and Glass Doors
Brand: Youzan Furniture
SKU: HB1GK0

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1800 × 480 × 500 mm
Top surface thickness	30 mm
Carcass panel thickness	18 mm
Back panel thickness	9 mm
Adjustable shelf thickness	15 mm
Glass door dimensions per panel	400 x 220 mm
Cable opening diameter	60 mm
Interior compartment clearance height	280 mm
Floor clearance under base	30 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Top surface static load capacity	68 kg
Maximum supported TV screen size	85 in
Glass door infrared signal transmittance	95%
Drawer slide load rating per drawer	15 kg
Product net weight	90 kg
Hinge cycle rating	80000 open/close cycles
Drawer slide cycle rating	50000 open/close cycles
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Angle / Life	165°; 80000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Frame and carcass	Solid imported rubberwood with warm brown lacquer finish
Central cabinet doors	5mm thick tempered glass, signal-permeable for remote controls
Drawer and door pulls	Solid wood matching cabinet finish, curved ergonomic profile
Interior shelves	Solid rubberwood, adjustable with metal shelf pins
Back panel	9mm thick MDF with pre-cut cable management openings
Base feet	Solid rubberwood block feet, attached to carcass bottom corners
Edge trim	Molded solid wood decorative trim along top and body perimeters
Finish coating	Environmental clear nitrocellulose lacquer, scratch-resistant matte sheen
Edge Band Thickness	2 mm
Primary Connector Specification	Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Storage layout	4 stacked end drawers + 2 central glass-door cabinets with adjustable shelves
Cable management	Back panel cutouts for routing power and AV cables between compartments
Door operation	Hinged swing doors with 110-degree opening angle for equipment access
Drawer operation	Side-mounted drawer slides with full extension access to stored items
Wall anchoring	Compatible with anti-tip restraint hardware for household safety
Ventilation	Gap ventilation behind glass doors for media equipment heat dissipation
Shelf adjustability	3-position height adjustment for interior shelves to fit different AV devices
Surface maintenance	Lacquered surface compatible with dry or lightly dampened cloth cleaning
Block foot height	60 mm
Cable / Vent Opening Reference	80 mm diameter; recommend 4rear cable/vent openings

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Carton dimensions (longest package)	2050 x 550 x 450 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Living room media center	Placement against main wall for TV and AV equipment storage and display
Combined living/dining space	Low profile does not block sightlines in open-plan residential areas
Formal reception spaces	Traditional Chinese style matches classic solid wood interior design schemes
Display and storage	Glass doors showcase media or decor while drawers conceal small accessories
Small to medium residential units	1800mm width fits standard living room wall spaces in 3bedroom homes

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 14749:2016	Domestic and kitchen storage units and worktops - safety requirements
EN 12521:2015	Furniture - strength, durability and safety - requirements for domestic tables

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable for structural integrity
GB 18584-2001	Indoor decorating and refurbishing materials - limit of harmful substances for wooden furniture
GB/T 4897.3-2005	Particleboard for furniture use, applicable if composite back panels are used

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for structural integrity;
2. GB 18584-2001: Indoor decorating and refurbishing materials - limit of harmful substances for wooden furniture;
3. GB/T 4897.3-2005: Particleboard for furniture use, applicable if composite back panels are used;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · RWC-TV-1800-CHN

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · RWC-TV-1800-CHN

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · RWC-TV-1800-CHNOpen Export Tool

Quick Actions

Post an RFQ

Product Description

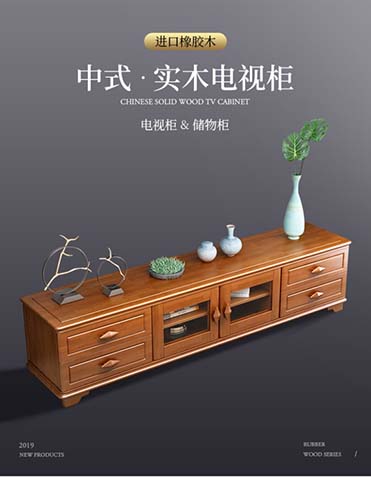

The RWC-TV-1800-CHN Chinese Style Solid Rubberwood TV Media Console from Youzan Furniture blends traditional Chinese design aesthetics with functional media storage for residential and reception settings. Its low-profile rectangular form is finished in a warm walnut-toned brown with molded solid wood decorative trim tracing the top and body perimeters, anchored by four solid rubberwood block feet positioned at each bottom corner. Matching curved solid wood pulls for drawers and doors complement the cohesive, refined silhouette. Constructed primarily with solid imported rubberwood, the unit features a 30mm thick top surface, 18mm thick carcass panels, 2mm edge banding, and a scratch-resistant matte clear nitrocellulose lacquer finish. Central cabinet doors are made of 5mm thick tempered glass, with solid wood adjustable shelves supported by metal pins, a 9mm thick MDF back panel, and base feet cut from solid rubberwood. The console supports a maximum 85-inch television with a 68kg static load capacity on its top surface. Its storage layout includes four stacked end drawers operating on full-extension side-mounted slides rated for 15kg per drawer, paired with two central glass-door cabinets fitted with adjustable shelves offering three height positions to accommodate different AV devices. The glass doors deliver 95% infrared signal transmittance for unobstructed remote control use, swing open to 110 degrees on hinges rated for 80000 open-close cycles, and feature rear gap ventilation to dissipate heat from operating media equipment. Pre-cut 60mm diameter cable openings in the back panel enable tidy routing of power and AV cables between compartments, and the unit is compatible with anti-tip restraint hardware for added household safety. Drawer slides are rated for 50000 open-close cycles for long-term regular use. This console is ideally suited for placement as a living room media center against main walls, in open-plan combined living and dining spaces where its low profile preserves unobstructed sightlines, in formal reception areas with classic solid wood interior design schemes, and in small to medium residential units, as its 1800mm width fits standard living room wall spaces in three-bedroom homes. The glass doors allow display of media devices or decorative items, while enclosed drawers conceal small accessories to reduce visual clutter. For procurement, note the unit ships across multiple cartons with a total packaged gross weight of 100kg per set and total packaging volume of 0.65 cubic meters, requires 40 minutes of assembly per set, and has a net weight of 90kg for placement and handling planning. Coordinate delivery access to accommodate the longest carton dimension, and plan installation with anti-tip hardware if used in households with small children or high-traffic areas. All visible surfaces carry the consistent warm wood finish to align with traditional Chinese and classic solid wood interior palettes.
