PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

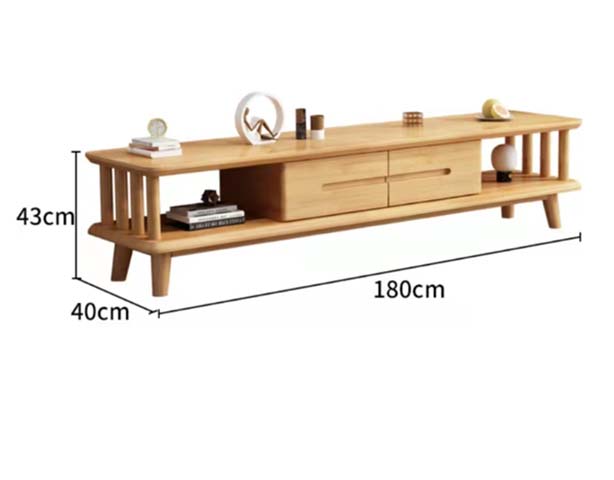

Overall dimensions (W × D × H)	1800 × 400 × 430 mm
Floor clearance under lower shelf	120 mm
Lower full-width open shelf height	180 mm
Central drawer unit internal width	800 mm
Single drawer internal dimensions	380 x 360 x 150 mm
Left/right open upper end bay width	420 mm
Top panel thickness	25 mm
Lower shelf panel thickness	18 mm
Vertical slat support diameter	30 mm
Tapered leg top cross-section	50 x 50 mm
Back panel cable cutout diameter	60 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Top surface static load capacity	80 kg
Maximum compatible TV size	75 inch
Unit net weight	60 kg
Drawer slide cycle rating	50000 open/close cycles
Surface scratch resistance rating	2000 revolutions
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Angle / Life	165°; 80000 cycles
Anti-tip Fixing Reference	Products above 1200 mm should use at least 2 wall fixing points
Recommended Procurement Warranty	Carcass 5 years; hardware 3 years; finish 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Support legs	Solid rubberwood, tapered angled profile, natural matte finish
Vertical end slats	Solid rubberwood, rounded profile, matching natural finish
Main top panel	18mm thick high-density fiberboard core, oak wood veneer, matte natural oil finish
Drawer fronts	18mm oak-veneered engineered wood, integrated recessed pull handles, matching veneer
Lower full-width shelf	15mm thick engineered wood, oak veneer top surface, solid wood edge banding
Internal drawer construction	12mm thick melamine-lined engineered wood drawer boxes, smooth interior finish
Back panel	3mm thick hardboard, pre-cut cable management openings, matte brown finish
Drawer slides	Cold-rolled steel, 3/4 extension, soft-close damping mechanism
Edge Band Thickness	2 mm
Primary Connector Specification	Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Central closed storage	Two equal-size handleless drawers with recessed pulls, for concealed media accessory storage
End open display bays	Two raised open shelves at left and right ends, for set-top boxes and decorative items
Lower full-width shelf	Continuous open shelf spanning entire unit length, for books, media equipment and display
Cable management	Dual 60mm cutouts in rear back panel behind open bays, to route device power and AV cables
Floor level adjustment	Non-adjustable solid wood tapered legs, provides stable elevation on even hard floors
Drawer operation	Soft-close self-latching slides, pulls open via integrated horizontal recess, no protruding hardware
Surface maintenance	Matte oiled veneer surface, wipe-clean with dry or slightly damp soft cloth, no harsh chemicals
Cable / Vent Opening Reference	80 mm diameter; recommend 4rear cable/vent openings

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Living room primary media setup	Positioned against wall under wall-mounted or stand-mounted televisions up to 75 inches
Apartment small-space layout	Low-profile 430mm height suits compact urban apartments without blocking sightlines
Hotel guest room media storage	Scandinavian aesthetic matches mid-range hotel furnishing schemes, sufficient guest storage
Matching living room set configuration	Pairs with matching Nordic-style oak coffee tables and side cabinets for coordinated decor

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 312:2010	Particleboard performance requirements, applicable to engineered wood panel structural strength
EN 13722:2004	Furniture strength and durability requirements for storage units, applies to shelf and drawer loads
EN 717-1:2004	Formaldehyde emission determination for wood panels, sets E1 class emission limits

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to structural safety and finish quality
GB 18584-2001	Limit of harmful substances in wood furniture, controls formaldehyde emission from panels
GB/T 4893.8-2013	Surface wear resistance test for furniture coatings, applicable to top veneer durability

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to structural safety and finish quality;
2. GB 18584-2001: Limit of harmful substances in wood furniture, controls formaldehyde emission from panels;
3. GB/T 4893.8-2013: Surface wear resistance test for furniture coatings, applicable to top veneer durability;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · TVC-1800-NOK-SLAT

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · TVC-1800-NOK-SLAT

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · TVC-1800-NOK-SLATOpen Export Tool

Quick Actions

Post an RFQ

Product Description

The Nordic Light Oak Low TV Media Console with Central Drawers and Open Shelves (model TVC-1800-NOK-SLAT, unbranded) features a streamlined Scandinavian-inspired low-profile form defined by clean horizontal lines, tapered angled solid rubberwood legs, and rounded vertical solid rubberwood end slats that frame the unit’s open storage zones. The layout balances open and closed storage across its full 1800 mm width: two symmetric raised open bays sit at the left and right upper ends, a pair of central handleless drawers sit at the core, and a continuous full-width open shelf spans the entire base of the unit, all anchored by slatted end supports for a light, open visual presence. The matte natural wood finish unifies all visible surfaces for a warm, understated aesthetic. Construction pairs durable solid wood and engineered wood components for long-term residential and light commercial use. The frame and tapered legs are built from solid rubberwood, while the top panel, drawer fronts, and visible shelf surfaces use oak-veneered engineered wood, finished with a matte natural oil coating. The lower full-width shelf includes solid wood edge banding, internal drawer boxes are lined with smooth melamine, and drawers operate on cold-rolled steel 3/4 extension soft-close slides with a 50000 open/close cycle rating. The hardboard back panel includes pre-cut cable management openings, and non-adjustable solid legs deliver stable support on even hard flooring surfaces. Functional design supports versatile media and storage needs: the top surface supports up to 80 kg of static load, accommodating televisions up to 75 inches, while each shelf holds up to 30 kg of distributed weight, and each drawer pair supports 45 kg of load. The central drawers offer concealed storage for media accessories, operated via integrated recessed pulls with no protruding hardware, while open bays and the lower full shelf hold set-top boxes, books, media equipment, and decorative items. Dual rear cable cutouts route power and AV cables to reduce clutter, and the matte oiled surface wipes clean easily with a soft dry or slightly damp cloth, with no harsh chemicals required for regular maintenance. This console is well suited for primary living room media setups positioned against a wall beneath wall-mounted or stand-mounted televisions, compact urban apartment layouts where its 430 mm low height avoids blocking sightlines, mid-range hotel guest rooms seeking coordinated Scandinavian aesthetic furnishings, and cohesive living room sets paired with matching Nordic-style oak coffee tables and side cabinets. Procurement teams should note each unit ships split across multiple cartons, requires 40 minutes of assembly per set, has a net weight of 60 kg, and relies on non-adjustable legs that require even hard floor surfaces for stable placement.

Nordic Light Oak Low TV Media Console with Central Drawers and Open Shelves Specifications
