PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2390 × 500 × 520 mm
Leg height	108 mm
Side drawer internal dimensions	430 x 375 x 130 mm
Central glass door compartment height	260 mm
Top panel thickness	25 mm
Carcass side panel thickness	18 mm
Back panel thickness	5 mm
Adjustable shelf thickness	15 mm
Cable opening diameter	60 mm
Ground clearance under unit	108 mm
Drawer front panel thickness	18 mm
Carcass Panel Thickness	25 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Top surface static load capacity	136 kg
Recommended maximum TV size	85 inch
Unit net weight	72 kg
Hinge cycle rating	50000 cycles
Drawer slide cycle rating	50000 cycles
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Angle / Life	165°; 80000 cycles
Anti-tip Fixing Reference	Products above 1200 mm should use at least 2 wall fixing points
Recommended Procurement Warranty	Carcass 5 years; hardware 3 years; finish 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Top surface and outer frame	Engineered wood core with light oak wood veneer, scratch-resistant matte finish
Drawer and door front panels	MDF core with white matte polyurethane paint finish
Central compartment doors	5mm thick clear tempered glass panels with wood frames
Support legs	Solid rubberwood tapered legs with natural light oak finish
Drawer and door hardware	Gold-tone zinc alloy bar pulls with brushed brass finish
Drawer slides	Cold-rolled steel full-extension soft-close drawer slides
Door hinges	Cold-rolled steel concealed soft-close cabinet hinges
Back panel	Hardboard with pre-cut cable openings and ventilation slots
Adjustable shelves	Engineered wood with matching light oak finish
Edge Band Thickness	2 mm
Primary Connector Specification	Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Left side storage	Two stacked fully extending drawers for closed media accessory storage
Central storage	Two adjacent glass-fronted compartments with adjustable shelves for AV components and display
Right side storage	Two stacked fully extending drawers for closed media accessory storage
Cable management	Pre-cut 60mm diameter cable grommets in back panel for AV cord routing
Ventilation	Slotted ventilation openings in back panel to prevent AV component overheating
Drawer operation	Soft-close full-extension slides that open fully and close silently without slamming
Door operation	Soft-close concealed hinges that hold doors securely and close gently
Shelf adjustability	5-position adjustable shelf pins to accommodate varying heights of AV equipment
Cable / Vent Opening Reference	80 mm diameter; recommend 4rear cable/vent openings

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Primary use case	Residential living room placement under wall-mounted televisions for AV equipment storage
Coordinating furniture	Pairs with matching tall side display cabinets and coffee table from the same collection
Style compatibility	Fits Scandinavian, Nordic, minimalist, and light wood interior design schemes
Space requirements	Requires 2.5m of clear wall space to accommodate full unit width with side clearance
User suitability	Ideal for homeowners seeking concealed media storage with visible display space for decor
Surface use	Supports placement of decorative objects, picture frames, and tabletop florals on the top surface

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 312:2010	Particleboard performance requirements, applicable for engineered wood core material specification
EN 14749:2016	Safety requirements for domestic storage furniture, applicable for structural stability testing
EN 12150-1:2015	Tempered soda lime silicate glass safety specification, applicable for glass door panels

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable for structural durability testing
GB 18580-2017	Formaldehyde emission limit for wood-based panels, applicable for E1 grade panel compliance
GB/T 4893.9-2013	Surface finish resistance to cigarette burns, applicable for top panel finish testing

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for structural durability testing;
2. GB 18580-2017: Formaldehyde emission limit for wood-based panels, applicable for E1 grade panel compliance;
3. GB/T 4893.9-2013: Surface finish resistance to cigarette burns, applicable for top panel finish testing;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · TVC-OAK-WHT-2000

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · TVC-OAK-WHT-2000

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · TVC-OAK-WHT-2000Open Export Tool

Quick Actions

Post an RFQ

Product Description

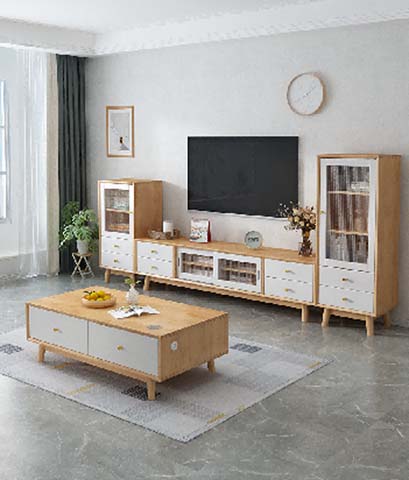

This two-tone light oak and white TV media console, model TVC-OAK-WHT-2000 from an unbranded Scandinavian-inspired collection, balances refined visual appeal with purpose-driven storage for modern living spaces. Its streamlined silhouette features a light oak veneer outer frame and top surface contrasted by crisp white matte drawer and door panels, elevated on gently tapered solid rubberwood legs finished to match the oak frame. Brushed brass gold-tone bar pulls add a subtle warm metallic accent, while central clear tempered glass doors break up the solid facade to create intentional display space, positioned flanked by stacked closed storage sections for a balanced, symmetrical layout. Constructed for durable daily use, the console’s core combines high-quality engineered wood substrates across its frame, shelves, and top, which carries a scratch-resistant matte finish to withstand regular contact. The 25mm thick top supports static loads up to 136kg, suitable for an 85-inch television as well as curated decorative pieces, framed photos, or tabletop florals. Side drawer fronts use an MDF core coated in smooth white matte polyurethane paint, paired with cold-rolled steel full-extension soft-close slides rated for 45kg per pair and 50,000 open-close cycles to eliminate slamming. Central glass doors operate on cold-rolled steel concealed soft-close hinges with the same 50,000-cycle durability rating, enclosing adjustable 15mm thick shelves that hold up to 30kg each for AV components or display items. The hardboard back panel includes pre-cut cable grommets and slotted ventilation openings to support organized cord routing and prevent electronic overheating, while four stacked full-extension drawers (two on each far side) offer concealed storage for media accessories, remotes, and miscellaneous living room items. Designed for residential living room placement beneath wall-mounted televisions, the console complements Scandinavian, Nordic, minimalist, and light wood interior schemes, and coordinates seamlessly with matching tall side display cabinets and coffee tables from the same collection. Installation requires 2.5m of clear wall space to accommodate the full unit width with appropriate side clearance. Procurement teams and residential buyers should note the unit ships across multiple cartons with a total packaged gross weight of 100kg, requires 40 minutes of assembly per set, and includes all necessary soft-close hardware for immediate, long-term use without additional accessory purchases.

Two-Tone Light Oak and White TV Media Console with Glass Doors and Drawers Specifications
