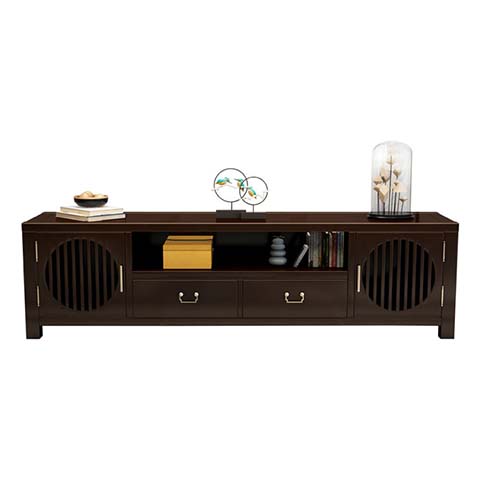

Product supplierDark Espresso New Chinese Style TV Media Console with Circular Grille Doors, 18mm thick engineered wood or solid wood with dark walnut stain lacquer
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1800 × 450 × 500 mm | |
|---|---|---|
| Leg height | 80 mm | |
| Central open shelf dimensions | 1000 x 380 x 200 mm | |
| Single lower drawer internal dimensions | 480 x 360 x 120 mm | |
| Single end cabinet internal dimensions | 380 x 400 x 350 mm | |
| Circular grille door diameter | 350 mm | |
| Top surface thickness | 25 mm | |
| Cable management cutout diameter | 60 mm | |
| Leg clearance under cabinet | 80 mm | |
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Top surface maximum static load | 50 kg | |
|---|---|---|
| Central open shelf maximum static load | 15 kg | |
| Single drawer maximum static load | 10 kg | |
| Maximum supported TV size | 75 in | |
| Gross weight range | 50 kg | |
| Hinge cycle rating | 80000 open/close cycles | |
| Drawer slide cycle rating | 50000 open/close cycles | |
| Wall anti-tip anchor load capacity | 50 kg | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Top panel | 18mm thick engineered wood or solid wood with dark walnut stain lacquer | |
|---|---|---|
| Cabinet carcass | 15mm thick engineered wood or solid hardwood frame with matching dark finish | |
| End door grille inserts | Vertical wood slats set in circular frame with matching dark finish | |
| Legs | Solid square wood block legs with dark lacquer finish, non-slip silicone foot pads | |
| Door hardware | Brushed nickel vertical bar metal pulls, concealed cabinet hinges | |
| Drawer hardware | Brushed nickel metal bail pulls, side-mounted ball bearing slides | |
| Back panel | 8mm thick wood composite panel with pre-cut cable routing openings | |
| Internal shelves in end cabinets | 15mm thick adjustable wood shelves with matching dark finish | |
| Finish coating | Scratch-resistant PU lacquer with semi-matte dark walnut tone | |
| Edge Band Thickness | 2 mm | |
| Primary Connector Specification | Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| End cabinet access | Two side hinged doors with vertical metal pulls open to reveal adjustable shelf storage | |
|---|---|---|
| Central open storage | Open horizontal middle bay provides unobstructed access for AV receivers and media devices | |
| Drawer storage | Two equal-width lower drawers with bail pulls provide concealed storage for media accessories | |
| Cable management | Back panel cutouts route power and AV cables between compartments and wall outlets | |
| Shelf adjustability | End cabinet shelves adjust in 32mm increments to accommodate tall AV components | |
| Floor protection | Non-slip silicone pads on leg bases prevent floor scratches and stabilize unit on hard floors | |
| Anti-tip safety | Included wall anchor kit secures cabinet to wall to prevent tip-over from top-heavy loads | |
| Drawer operation | Soft-close damping slides prevent slamming and provide smooth full-extension access to drawer contents | |
| Cable / Vent Opening Reference | 80 mm diameter; recommend 4rear cable/vent openings |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Residential living room | Placed below wall-mounted TVs to hold media equipment and decorative items | |
|---|---|---|
| Apartment open plan spaces | Low profile form does not block sight lines in compact open living areas | |
| New Chinese style interiors | Circular slatted grille detailing matches traditional inspired home decor schemes | |
| Display and storage combination | Top surface holds decorative objects while closed storage hides media clutter | |
| Matching furniture sets | Coordinates with matching coffee tables and side cabinets for cohesive living room furnishing | |
| Hard and soft floor installation | Leg pads protect wood, tile and carpet floors during long-term placement |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 14749:2016 | Applicable for domestic kitchen and storage furniture safety and strength requirements | |
|---|---|---|
| EN 12521:2015 | Applicable for domestic furniture strength, durability and stability requirements | |
| EN 71-3:2019 | Applicable for migration of certain elements if used in family spaces with children |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | Applicable for general wooden furniture dimensional stability and structural safety requirements | |
|---|---|---|
| GB 18584-2001 | Applicable for indoor wood furniture formaldehyde emission limits for residential use | |
| GB/T 4893.8-2013 | Applicable for furniture surface abrasion resistance performance testing |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: Applicable for general wooden furniture dimensional stability and structural safety requirements; 2. GB 18584-2001: Applicable for indoor wood furniture formaldehyde emission limits for residential use; 3. GB/T 4893.8-2013: Applicable for furniture surface abrasion resistance performance testing; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
