PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2400 × 470 × 560 mm
Matching right-side display hutch dimensions	800 x 420 x 1200 mm
Floor clearance under console	150 mm
Single drawer internal dimensions	620 x 400 x 165 mm
Central open media cubby internal dimensions	420 x 420 x 330 mm
Side hutch glass shelf compartment height	320 mm
Top surface panel thickness	25 mm
Carcass side/back panel thickness	18 mm
Tapered leg diameter at floor contact	20 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Console top surface static load capacity	50 kg
Supported maximum TV screen size	85 inch
Net weight (console + hutch set)	100 kg
Drawer slide cycle rating	50000 open/close cycles
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Angle / Life	165°; 80000 cycles
Anti-tip Fixing Reference	Products above 1200 mm should use at least 2 wall fixing points
Recommended Procurement Warranty	Carcass 5 years; hardware 3 years; finish 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Console and hutch main carcass	18mm thick engineered wood substrate with dark walnut grain veneer
Top surface finish	Scratch-resistant and water-resistant polyurethane lacquer
Support legs	1.2mm thick matte black cold-rolled steel, tapered profile
Drawer fronts and door panels	25mm thick engineered wood with matching walnut veneer, routed edge detail
Side hutch upper shelving	Clear tempered glass shelves, 8mm thick
Drawer slides	Cold-rolled steel three-quarter extension soft-close glides
Cable management grommets	60mm diameter ABS plastic, matte black finish
Foot pads	Non-slip PE plastic pads fitted to leg bases
Edge Band Thickness	2 mm
Primary Connector Specification	Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Storage layout	Three equal-sized soft-close drawers across console front, central open media cubby, two-tier hutch display and lower closed storage
Cable management	Three rear 60mm diameter cable cutouts aligned to open cubby and hutch compartments
Drawer operation	Soft-close glides with 165mm internal drawer depth, pull-less routed edge opening
Hutch door access	Lower hutch compartment fitted with magnetic push-to-open latch, no external handle
Ventilation	Open cubby design provides unobstructed airflow for media receivers and game consoles
Assembly requirement	Knock-down assembly required, legs and hutch attach to main console with included hardware
Surface protection	Water-resistant top finish resists spills from drinks and decorative items
Cable / Vent Opening Reference	80 mm diameter; recommend 4rear cable/vent openings

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Residential living room placement	Positioned against a wall beneath wall-mounted flat screen TVs for media equipment storage
Mid-century modern interior schemes	Matches dark walnut wood furniture palettes with black metal accent hardware
Open-plan lounge spaces	Provides concealed storage for media accessories and open display for decor items
Set configuration options	Used as standalone console or paired with included side hutch for additional display storage
Small accessory placement	Top surface supports soundbars, framed decor, potted plants and tabletop ornaments
Low-profile media setup	150mm floor clearance allows robotic vacuum access under the unit

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 14749:2016	Safety and strength requirements for domestic storage furniture and kitchen worktops
EN 12521:2015	Strength, durability and safety requirements for domestic furniture tables

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to structural stability and finish quality
GB 18584-2001	Indoor decoration materials: limit of formaldehyde emission for wood-based furniture

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to structural stability and finish quality;
2. GB 18584-2001: Indoor decoration materials: limit of formaldehyde emission for wood-based furniture;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · MCM-WAL-TV-2400-SH800

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · MCM-WAL-TV-2400-SH800

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · MCM-WAL-TV-2400-SH800Open Export Tool

Quick Actions

Post an RFQ

Product Description

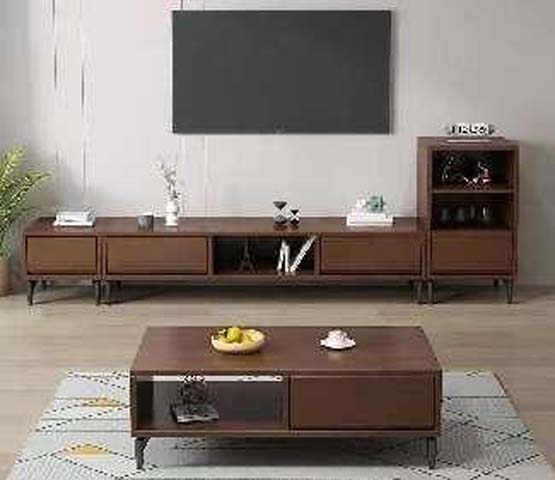

The Mid-Century Modern Walnut Media Console with Matching Side Display Hutch is a cohesive public and residential media storage solution defined by clean, timeless lines. The set features a low-profile console paired with a vertically oriented right-side hutch, anchored by tapered matte black metal legs that create a light, elevated silhouette. Warm dark walnut grain finishes across all wood surfaces contrast with the matte black hardware, aligning seamlessly with mid-century modern interior palettes that balance warm wood tones and sleek metal accents. Built for durable daily use, the console and hutch carcass uses 18mm thick engineered wood clad in dark walnut grain veneer, with a 25mm thick top surface finished in scratch-resistant, water-resistant polyurethane lacquer to withstand regular contact with items and accidental spills. Legs are formed from 1.2mm thick matte black cold-rolled steel in a tapered profile, fitted with non-slip PE plastic foot pads to protect floor surfaces. The side hutch includes 8mm thick clear tempered glass shelves, while drawers operate on cold-rolled steel three-quarter extension soft-close glides, and doors use magnetic push-to-open latches with no external handles for a streamlined look. Three rear matte black ABS cable management grommets align with storage compartments to keep wiring tidy, and all exposed edges feature 2mm thick matching edge banding for a polished finish. The storage layout balances open and closed space: the console includes three equal soft-close drawers with routed edge pull-less openings, a central open cubby sized for media receivers and game consoles that delivers unobstructed ventilation, while the matching hutch offers two tiers of glass-shelf display space above a closed lower storage compartment. The console top supports a 50kg static load, accommodating up to 85-inch flat screen TVs, soundbars, framed decor, potted plants, and tabletop ornaments. Each shelf supports 30kg of distributed weight, while each drawer pair holds up to 45kg, with hardware rated for 50,000 open-close cycles for drawers and 80,000 cycles for 165-degree opening hinges. The 150mm floor clearance allows unobstructed access for robotic vacuums under the unit. This set works equally well in residential living rooms, open-plan lounge spaces, and casual public waiting areas furnished with mid-century modern pieces. It can be used as a standalone console against a wall beneath wall-mounted TVs, or paired with the included side hutch for expanded display and storage. Procurement teams should note the set requires knock-down assembly with included hardware, with an assembly time of 40 minutes per unit; the set ships in multiple cartons with a total packaged gross weight of 100kg, and total packaging volume of 0.65 cubic meters.

Mid-Century Modern Walnut Media Console with Matching Side Display Hutch Specifications
