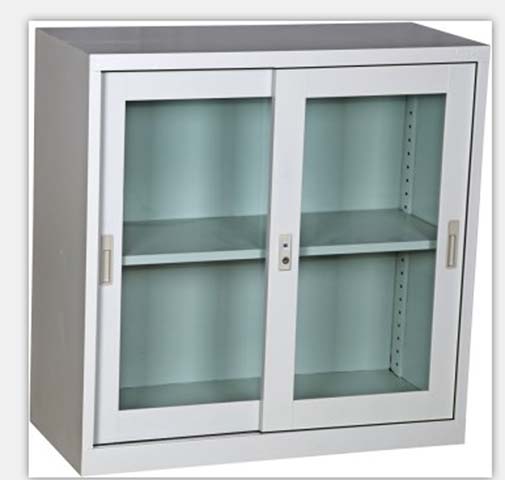

Wall-Mounted Steel Storage Cabinet with Sliding Clear Glass Doors - Dimensions

Submitted	Field	Original	修改后参数	Note / Status
No parameter correction records exist. If you spot inaccurate data, click the flag icon at the end of the corresponding row to submit feedback.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Overall external dimensions	900 x 400 x 900 mm
Internal compartment width	860 mm
Internal compartment depth	360 mm
Internal total height	820 mm
Adjustable shelf thickness	25 mm
Shelf adjustment hole pitch	32 mm
Glass door panel dimensions per section	380 x 680 mm
Door handle length	100 mm
Side panel steel thickness	0.8 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Unit net weight range	32 kg
Per shelf uniform static load capacity	30 kg
Recommended maximum mounted wall load	122 kg
Adjustable shelf positions	10
Sliding door cycle durability	20000 open/close cycles
Cam lock keyed differs option count	200
Paint film scratch resistance	2H pencil hardness
Product warranty period	3 years
Adjustable shelf load-bearing surface dimensions	850 x 350 mm
Anti-tip connector load rating	50 kg per connector

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Cabinet body panels	0.8mm thick cold-rolled steel sheet, epoxy polyester powder coated finish
Sliding door frame	1.0mm thick cold-rolled steel tube, powder coated to match body
Door infill panels	4mm thick clear tempered safety glass
Adjustable shelf	1.0mm thick cold-rolled steel sheet, formed edge reinforcement, powder coated finish
Internal shelf support rails	Galvanized cold-rolled steel, perforated 32mm pitch
Door pull handles	Brushed nickel-finish zinc alloy, surface mounted
Central locking mechanism	Zinc alloy cam lock with 2 keys, chrome finished cylinder
Shelf support clips	Stamped steel, zinc plated
Sliding door track	Cold-rolled steel, powder coated, top and bottom guided
Wall mounting brackets	2mm thick powder coated steel, pre-drilled
Door edge seals	EPDM rubber foam, continuous strip
Mounting hardware kit	Zinc plated steel expansion bolts, M8 size, 4 pieces per unit

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Sliding glass door operation	Horizontal bi-parting sliding along top and bottom tracks, requires zero outward clearance for opening
Central locking function	Single keyed cam lock engages both sliding doors simultaneously to restrict unauthorized access
Adjustable shelf configuration	Shelf height can be repositioned in 32mm increments along internal perforated rails to accommodate items of varying heights
Wall-mounted installation	Pre-punched rear mounting points allow secure fixing to solid masonry or stud walls, frees up counter or floor space below
Visible inventory storage	Clear glass door panels allow full visibility of stored contents to reduce time spent searching for items, while protecting contents from dust
Dust protection	Continuous rubber door seals along track edges prevent dust ingress into cabinet interior, keeping stored documents or supplies clean
Reversible handle mounting	Handles can be fitted to alternate positions if cabinet is installed in reverse orientation, supports flexible workspace layout
Optional extra shelf compatibility	Cabinet supports up to 2 additional adjustable shelves to create more divided storage compartments, if higher storage density is required
Lock cylinder diameter	20 mm
Hinge-free door operation	No protruding hinge components on cabinet exterior, eliminating pinch points and exterior protrusions that can snag clothing or impact adjacent objects
Cable / Vent Opening Reference	If fitted, 80 mm diameter

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Number of shipping packages	1
Shipping carton dimensions	960 x 460 x 960 mm
Gross shipping weight	37 kg
Shipment volume per unit	0.42 CBM
20ft GP container loading quantity	140 units
40ft GP container loading quantity	300 units
On-site assembly time	15 minutes
Included installation accessories	4 wall expansion bolts, 2 keys, installation instruction manual
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Office workstation wall storage	Mounted above individual or shared work desks to store documents, stationery and personal items, keeping desk surfaces clear of clutter
Laboratory or medical clinic storage	Used to store sealed supplies, small equipment or reference materials, glass doors allow quick visual inventory checks without opening
Break room or pantry storage	Mounted above countertops to store cups, dry goods and serving supplies, sliding doors operate safely even in narrow pantry spaces
School classroom and administrative office storage	Installed in teacher work areas or admin offices to store records, forms and classroom supplies, lockable doors secure sensitive materials
Home office and garage utility storage	Wall-mounted in home workspaces or utility areas at 1600mm finished floor height to store tools, files and household supplies, elevated design keeps stored items away from floor moisture and pest access
Retail back-of-house storage	Mounted in stock rooms to store small retail supplies, packaging materials and transaction documents, adjustable shelving adapts to varying item sizes

STANDARD S1

EU EN Standards

European market access and chemical requirements

EN 14073-2:2004	Office furniture - Storage furniture - Part 2: Safety requirements, applicable for structural safety, edge finishing and stability of wall-mounted storage units
EN 16121:2013	Non-domestic storage furniture - Requirements for safety, strength, durability and stability, applicable for commercial office use performance requirements
EN 12150-1:2015	Glass in building - Thermally toughened soda lime silicate safety glass, applicable for safety glass door panel impact and breakage requirements

STANDARD S2

North America ANSI/BIFMA Standards

US and Canada office-furniture standards

No standards data is available for this market.

STANDARD S3

China GB Standards

Standards applicable to China-market projects

GB/T 3327-2016	Metal office furniture - General technical requirements, applicable for structural stability, finish quality and dimensional tolerance acceptance of this steel storage cabinet
GB/T 13668-2015	Steel filing and storage cabinets, applicable for load capacity, hardware performance and durability requirements for office steel storage units
GB 18584-2001	Indoor decorating and refurbishing materials - Limit of harmful substances of wood based furniture, applicable for formaldehyde and VOC emission limits for any non-metallic components used
GB/T 24977-2010	Glass furniture - Safety requirements for tempered glass components, applicable for impact resistance and breakage safety of glass door panels

Standard Tender Description

This product must meet the following technical requirements:
1. GB/T 3327-2016: Metal office furniture - General technical requirements, applicable for structural stability, finish quality and dimensional tolerance acceptance of this steel storage cabinet;
2. GB/T 13668-2015: Steel filing and storage cabinets, applicable for load capacity, hardware performance and durability requirements for office steel storage units;
3. GB 18584-2001: Indoor decorating and refurbishing materials - Limit of harmful substances of wood based furniture, applicable for formaldehyde and VOC emission limits for any non-metallic components used;
4. GB/T 24977-2010: Glass furniture - Safety requirements for tempered glass components, applicable for impact resistance and breakage safety of glass door panels;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
