Automatic mm / inch conversion · Core engineering specifications
| Overall dimensions | 900 x 400 x 750 mm | |
|---|---|---|
| Single side door width | 280 mm | |
| Central drawer bank width | 340 mm | |
| Single drawer height | 110 mm | |
| Drawer internal clear dimensions | 300 x 340 x 90 mm | |
| Side door internal compartment height | 670 mm | |
| Side door internal compartment depth | 360 mm | |
| Handle length | 110 mm | |
| Base plinth height | 40 mm | |
| Steel panel thickness (body/doors) | 0.8 mm | |
| Drawer slide extension length | 340 mm | |
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
| Net product weight | 42 kg | |
|---|---|---|
| Per drawer static load capacity | 25 kg | |
| Recommended maximum total cabinet load | 250 kg | |
| Drawer open/close cycle durability | 50000 cycles | |
| Lock mechanism cycle durability | 10000 cycles | |
| Powder coat surface abrasion resistance | 2000 cycles (Taber CS-10, 1kg load) | |
| Standard warranty period | 3 years | |
| Recommended maximum total distributed cabinet load | 250 kg | |
| Door hinge cycle durability | 50000 cycles | |
| Standard commercial warranty period | 3 years |
Core acceptance fields · Panels / hardware / frame / upholstery
| Cabinet main frame/body panels | 0.8mm thick cold-rolled steel sheet, light gray epoxy polyester powder coated finish | |
|---|---|---|
| Drawer bodies | 0.7mm thick cold-rolled steel sheet, matching powder coated finish | |
| Door and drawer pull handles | Matte light gray ABS plastic, recessed ergonomic pull profile | |
| Lock mechanisms | Zinc alloy cylinder cam locks, supplied with 2 keys per lock | |
| Drawer slides | Cold-rolled steel 3-section full-extension ball bearing slides, zinc plated finish | |
| Internal shelves (side compartments) | 0.7mm thick cold-rolled steel, matching powder coat finish | |
| Base plinth frame | 1.0mm thick cold-rolled steel, welded construction for structural support | |
| Door hinges | Concealed steel butt hinges, welded to frame and door for smooth 110-degree opening | |
| Surface pretreatment | Iron phosphate conversion coating prior to powder application to improve corrosion resistance | |
| Internal adjustable shelves (side compartments) | 0.7mm thick cold-rolled steel, matching powder coat finish, supported by welded steel shelf clips at 50mm vertical increments | |
| Rear cabinet panel | 0.5mm thick cold-rolled steel sheet, spot-welded to cabinet frame, with pre-punched anti-tip anchor holes | |
| Edge Band Thickness | 2 mm |
Adjustment / rotation / tilt / mobility / storage features

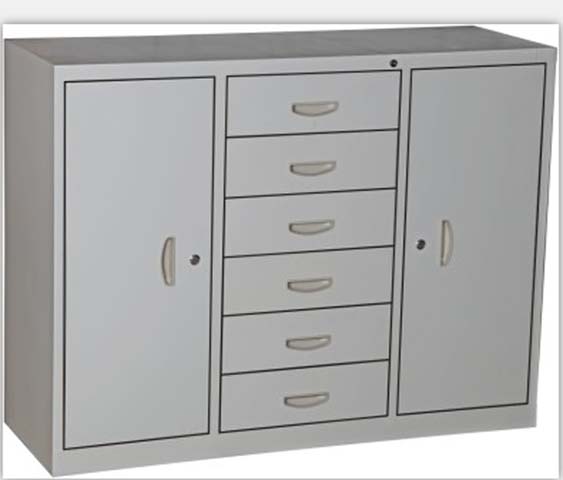

| Central drawer storage configuration | 6 equal-height vertically stacked drawers, with a single keyed cam lock at the top of the drawer bank that locks all drawers simultaneously | |
|---|---|---|
| Side door storage configuration | 2 full-height lockable doors, one on each side of the central drawer bank, each with independent cam lock, concealing internal shelved storage compartments | |
| Drawer operation | Full-extension ball-bearing slides allow drawers to open completely for full access to contents, with integrated stop to prevent accidental pull-out | |
| Door operation | Concealed hinges allow doors to open 110 degrees for unobstructed access to internal side compartments, with no protruding external hardware | |
| Keyed access | Three separate lock positions total: left door, right door, and central drawer bank, allowing restricted access to different storage sections as needed | |
| Surface utility | Flat reinforced steel top surface provides additional 900mm wide workspace or additional storage space for office equipment and supplies | |
| Mounting configuration | Freestanding floor-standing design with integrated base plinth, compatible with optional wall anchoring kit for seismic or anti-tip safety in high-traffic areas | |
| Storage versatility | Central drawers sized for small office supplies, documents, tools, and personal items; side compartments accommodate taller items including binders, files, and larger equipment | |
| Keyed access control | Three separate keyed lock positions total: left door, right door, and central drawer bank, allowing restricted independent access to different storage sections as required for operational security | |
| Top surface utility | Flat reinforced steel top surface provides a 900mm wide level workspace or additional storage space for office equipment, supply trays, or frequently accessed items, with 25kg distributed top load capacity | |
| Anti-tip safety | Freestanding floor-standing design includes pre-punched holes on rear panel for installation of 2 included wall anchor straps, required for use when drawers are loaded to full rated capacity to prevent forward tip-over | |
| Storage compartment versatility | Central 90mm internal height drawers sized for small office supplies, writing instruments, document folders, tools, and personal items; 670mm tall side compartments accommodate A4 binders, standing files, and larger equipment with adjustable shelf positions |
Verified carton / gross weight / assembly / loading data
| Number of shipping packages | 1 | |
|---|---|---|
| Shipping carton dimensions | 970 x 460 x 820 mm | |
| Gross shipping weight | 47 kg | |
| Shipping volume per unit | 0.37 CBM | |
| Assembly time (knockdown configuration) | 40 minutes | |
| 20ft GP container loading quantity | 72 units | |
| 40ft HQ container loading quantity | 180 units | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split |
Recommended spaces / users / usage modes
| General office supply storage | Suitable for placement in office work areas, copy rooms, and administrative zones to store stationery, documents, files, and small office equipment | |
|---|---|---|
| Workshop and maintenance area storage | Durable steel construction suitable for storing hand tools, maintenance supplies, spare parts, and personal protective equipment in workshop and facility maintenance areas | |
| Healthcare and clinic storage | Smooth powder coated steel surface is easy to clean and disinfect, making the unit suitable for clinic, laboratory, and healthcare facility storage of supplies and consumables | |
| Retail back-of-house storage | Compact footprint fits in stock rooms and retail back areas to store office supplies, transaction supplies, and employee personal items | |
| Educational facility storage | Durable steel construction withstands heavy daily use in schools, university offices, and administrative areas for document and supply storage | |
| Home office and small business storage | Neutral light gray finish fits most office decors, providing organized storage for home office documents, supplies, and personal items without requiring excessive floor space | |
| General office open area storage | Suitable for placement in office work zones, copy rooms, and administrative areas to store stationery, bound documents, files, and small office equipment; 750mm desk-height footprint fits adjacent to standard work surfaces as a supplementary storage and work surface | |
| Workshop and facility maintenance storage | Durable powder-coated steel construction resists scuffs and impacts, suitable for storing hand tools, maintenance supplies, spare parts, and personal protective equipment in workshop and facility maintenance areas; lockable compartments secure high-value tools from unauthorized access |
EU Market Access Requirements* EN Standards
| EN 14073-2:2004 Office furniture - Storage furniture - Part 2: Safety requirements | Applicable European standard for structural safety, stability, and mechanical performance of office storage cabinets | |
|---|---|---|
| EN 14073-3:2004 Office furniture - Storage furniture - Part 3: Test methods for stability and strength | Applicable test method standard for verifying cabinet load capacity, tip resistance, and component durability |
US and Canada office-furniture standards
| ANSI/BIFMA X5.9-2019 Storage Furniture | Applicable North American industry standard for safety, durability, and structural performance of office storage units |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 General technical requirements for metal furniture | Applicable standard for dimensional tolerance, structural stability, and finish quality for office metal storage cabinets | |
|---|---|---|
| GB/T 10357.5-2011 Furniture mechanical performance test - Storage units | Applicable standard for static load, durability, and structural strength testing of storage cabinet components | |
| GB 18584-2001 Indoor decorating and refurbishing materials - Limit of harmful substances of wood based furniture | Applicable heavy metal and harmful substance limit requirement for any non-steel coated or plastic components in the cabinet |
This product must meet the following technical requirements: 1. GB/T 3324-2017 General technical requirements for metal furniture: Applicable standard for dimensional tolerance, structural stability, and finish quality for office metal storage cabinets; 2. GB/T 10357.5-2011 Furniture mechanical performance test - Storage units: Applicable standard for static load, durability, and structural strength testing of storage cabinet components; 3. GB 18584-2001 Indoor decorating and refurbishing materials - Limit of harmful substances of wood based furniture: Applicable heavy metal and harmful substance limit requirement for any non-steel coated or plastic components in the cabinet; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
