Automatic mm / inch conversion · Core engineering specifications
| Overall dimensions | 900 x 400 x 1800 mm | |
|---|---|---|
| Individual door panel dimensions | 430 x 860 mm | |
| Door frame metal thickness | 0.8 mm | |
| Body panel metal thickness | 0.6 mm | |
| Internal horizontal divider height | 900 mm | |
| Internal shelf count per compartment | 1 unit | |
| Adjustable shelf hole spacing | 32 mm | |
| Bottom base plinth height | 50 mm | |
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
| Cabinet net weight | 45 kg | |
|---|---|---|
| Uniform static load per shelf | 50 kg | |
| Total uniform static load capacity | 200 kg | |
| Recommended number of users | 20 people | |
| Door open angle | 110 degrees | |
| Surface scratch hardness | 2H | |
| Lock cycle durability | 10000 operations | |
| Standard color options | 6 options | |
| Uniform static load per adjustable shelf | 50 kg | |
| Powder coat surface pencil hardness | 2H |
Core acceptance fields · Panels / hardware / frame / upholstery
| Main cabinet body | 0.6mm cold-rolled steel sheet | |
|---|---|---|
| Door panels | 0.8mm cold-rolled steel sheet with folded reinforced edges | |
| Internal shelves | 0.7mm cold-rolled steel sheet with folded perimeter lips | |
| Surface finish | Epoxy polyester powder coating, light grey matte finish | |
| Lock assembly | Zinc alloy keyed turn lock with black plastic escutcheon | |
| Door hinges | Cold-rolled steel concealed pin hinges | |
| Internal shelf supports | Galvanized steel shelf brackets | |
| Internal horizontal divider | 0.6mm cold-rolled steel sheet welded to cabinet frame | |
| Main cabinet carcass (side/top/bottom panels) | 0.6mm cold-rolled steel sheet, seam-welded to form a rigid box frame, deburred cut edges | |
| Internal adjustable shelves | 0.7mm cold-rolled steel sheet with 15mm folded perimeter load lips, galvanized steel support brackets | |
| Back panel | 0.5mm cold-rolled steel sheet, spot-welded to the rear of the cabinet frame to add structural rigidity | |
| Leveling feet | M8 threaded nylon-tipped adjustable feet, mounted to the four corners of the base plinth |
Adjustment / rotation / tilt / mobility / storage features

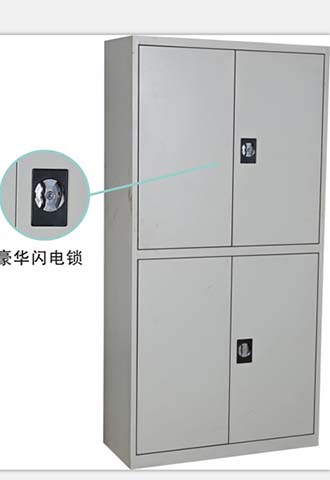

| Locking system | Two independent keyed recessed locks, one securing upper double doors, one securing lower double doors | |
|---|---|---|
| Shelf adjustment | Adjustable internal shelves, repositionable in 32mm increments along slotted internal uprights | |
| Door operation | Flush-mounted doors open outward to 110 degrees, with no external protruding handles to prevent snagging | |
| Storage partitioning | Two separate locked compartments (upper and lower), each fitted with one adjustable shelf to create two storage zones per compartment | |
| Installation | Freestanding unit, leveled via adjustable feet on base plinth | |
| Door alignment | Welded reinforced frame prevents door warping, maintaining consistent door gaps after long-term use | |
| Edge protection | All cut steel edges are folded and deburred to eliminate sharp edges during use | |
| Lock escutcheon dimensions | 60 x 80 mm | |
| Shelf height adjustment | Internal shelves repositionable in 32mm increments along slotted internal uprights, supported by 4 galvanized steel brackets per shelf to prevent tipping | |
| Installation leveling | Freestanding unit leveled via 4 M8 threaded nylon-tipped adjustable feet, with 20mm total vertical adjustment to compensate for uneven floors | |
| Anti-tip protection | 2 steel anti-tip brackets secure the cabinet top rear to a load-bearing wall, preventing forward tip when fully loaded doors are open to maximum angle | |
| Edge safety design | All exposed cut steel edges are folded into a 12mm double-layer hem and fully deburred to eliminate sharp edges that could cause user injury |
Verified carton / gross weight / assembly / loading data
| Number of shipping cartons | 1 unit | |
|---|---|---|
| Shipping carton dimensions | 950 x 450 x 1850 mm | |
| Gross shipping weight | 50 kg | |
| Shipping volume per unit | 0.79 CBM | |
| Assembly time (knockdown version) | 40 minutes | |
| 20ft GP container loading quantity | 36 units | |
| 40ft HQ container loading quantity | 88 units | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split |
Recommended spaces / users / usage modes
| Office document storage | Suitable for general offices, administrative departments and file rooms to store A4/F4 documents, office supplies and archival materials | |
|---|---|---|
| Factory staff personal storage | Suitable for production facilities, workshops and changing rooms to store employee personal belongings and work tools | |
| School and institutional use | Suitable for schools, hospitals and government offices to store public supplies, records and equipment | |
| Stockroom inventory storage | Suitable for warehouse stockrooms and retail back-of-house areas to store small parts, consumables and inventory | |
| IT equipment storage | Suitable for IT departments to store spare peripherals, cables and maintenance tools | |
| Placement requirement | Position against a load-bearing wall for maximum stability, with 100mm clearance behind the cabinet for air circulation | |
| General office document storage | Suitable for open office areas, administrative departments and central file rooms to store A4/F4 documents, lever arch binders and general office supplies | |
| Workshop staff personal storage | Suitable for manufacturing facilities, maintenance workshops and staff changing rooms to store employee personal belongings and small hand tools |
EU Market Access Requirements* EN Standards
| EN 14073-2:2004 | Applicable standard for office storage furniture, specifying safety and strength requirements for storage cabinets | |
|---|---|---|
| EN 1022:2018 | Applicable standard for furniture stability testing, ensuring cabinets do not tip during normal use |
US and Canada office-furniture standards
| ANSI/BIFMA X5.9-2019 | Applicable standard for storage furniture, defining load, durability and stability test methods for office storage units |
|---|
Standards applicable to China-market projects
| GB/T 3327-2017 | Applicable standard for metal office furniture cabinets, specifying dimensional tolerance, structural strength and stability requirements | |
|---|---|---|
| GB/T 13668-2015 | Applicable standard for steel filing/storage cabinets, covering lock performance, shelf load, and door operation requirements | |
| GB 18584-2001 | Applicable standard for indoor decorating and refurbishing materials, limiting formaldehyde and heavy metal content in furniture coatings |
This product must meet the following technical requirements: 1. GB/T 3327-2017: Applicable standard for metal office furniture cabinets, specifying dimensional tolerance, structural strength and stability requirements; 2. GB/T 13668-2015: Applicable standard for steel filing/storage cabinets, covering lock performance, shelf load, and door operation requirements; 3. GB 18584-2001: Applicable standard for indoor decorating and refurbishing materials, limiting formaldehyde and heavy metal content in furniture coatings; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
