Automatic mm / inch conversion · Core engineering specifications
| Overall dimensions | 900 x 400 x 1850 mm | |
|---|---|---|
| Single compartment internal dimensions | 280 x 380 x 860 mm | |
| Door panel thickness | 0.6 mm | |
| Frame and body panel thickness | 0.5 mm | |
| Internal shelf/vertical divider thickness | 0.5 mm | |
| Ventilation slot length per door | 150 mm | |
| Card holder size per door | 80 x 50 mm | |
| Handle recess depth | 12 mm | |
| Base plinth height | 50 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
Net weight / load capacity / users / durability
| Net weight per unit | 45 kg | |
|---|---|---|
| Per-compartment static load capacity | 20 kg | |
| Recommended user capacity | 6 users | |
| Door hinge cycle rating | 50000 open/close cycles | |
| Lock static pull resistance | 500 N | |
| Powder coat abrasion resistance | 1000 cycles | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
Core acceptance fields · Panels / hardware / frame / upholstery
| Cabinet body and doors | Cold-rolled steel sheet with light grey epoxy-polyester powder coat finish | |
|---|---|---|
| Hinges | Zinc-plated steel butt hinges | |
| Locks | Zinc alloy keyed cam locks with 2 keys per door | |
| Handles | Recessed steel pull handles with chrome-plated finish | |
| Card holders | Transparent PVC label slots | |
| Ventilation louvers | Punched steel louvers integrated into door panels | |
| Internal dividers | Cold-rolled steel vertical dividers separating columns and tiers | |
| Base plinth | Folded steel base with welded corner construction | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
Adjustment / rotation / tilt / mobility / storage features
| Individual compartment locking | Each door operates with an independent keyed cam lock, supplied with 2 unique keys per compartment | |
|---|---|---|
| Ventilation | Each door has 6 horizontal punched louver vents at the lower section to enable air circulation inside compartments | |
| Door swing | Each door opens outward 110 degrees on internal butt hinges | |
| User identification | Each door has a top-mounted transparent card holder for inserting name tags or locker number labels | |
| Freestanding installation | Integrated folded steel base allows the cabinet to stand stably on level floors without wall anchoring for standard use | |
| Configurability | Units can be banked side-by-side in continuous runs without gaps for large locker room installations | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
Verified carton / gross weight / assembly / loading data
| Number of packages | 1 | |
|---|---|---|
| Knocked-down carton dimensions | 950 x 450 x 120 mm | |
| Gross shipping weight | 50 kg | |
| Shipping volume per unit | 0.051 CBM | |
| Assembly time | 60 minutes | |
| 20ft container loading quantity | 540 units | |
| 40ft HQ container loading quantity | 1290 units | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set |
Recommended spaces / users / usage modes
| Office staff locker rooms | Provides secure personal storage for employees to store bags, uniforms and personal items during work shifts | |
|---|---|---|
| Educational facility changing rooms | Durable construction supports daily high-volume use by students in schools, colleges and university dormitories | |
| Gym and sports facility changing areas | Ventilated compartments accommodate gym bags, workout clothing and personal effects | |
| Public service and retail staff areas | Compact footprint fits in back-of-house spaces to provide secure storage for retail staff, hospital workers and public sector employees | |
| Temporary site accommodation | Sturdy steel construction withstands heavy use on construction sites, military camps and temporary event facilities |
European market access and chemical requirements
| EN 14073-2:2004 | Office furniture - Storage furniture - Part 2: Safety requirements | |
|---|---|---|
| EN 14074:2004 | Office furniture - Storage furniture and work surfaces - Test methods for strength and durability |
US and Canada office-furniture standards
Standards applicable to China-market projects
| GB/T 3327-2018 | Metal furniture - General technical requirements for storage cabinets | |
|---|---|---|
| GB/T 13668-2015 | Steel filing and storage cabinets | |
| GB 18584-2001 | Indoor decorating and refurbishing materials - Limit of harmful substances of wood based furniture |
This product must meet the following technical requirements: 1. GB/T 3327-2018: Metal furniture - General technical requirements for storage cabinets; 2. GB/T 13668-2015: Steel filing and storage cabinets; 3. GB 18584-2001: Indoor decorating and refurbishing materials - Limit of harmful substances of wood based furniture; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
Export data is generated from the current published product record.
Directly download an English report in metric or imperial units.
Download all product information and parameter modules in English.
English title, specifications, materials, standards and purchasing fields.
Prepare customs description, material, usage, dimensions and declaration elements.

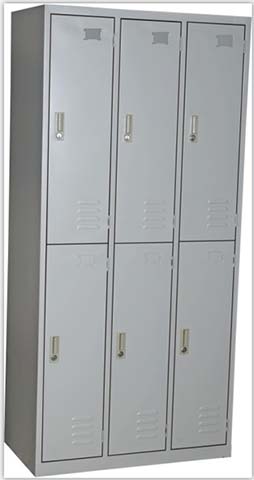

Open Export ToolThe YUANTONG STL-LKR-6D-2T-GY 6-Door 2-Tier Steel Personnel Storage Locker is a purpose-built metal storage solution designed for reliable shared personal storage across commercial and residential settings. Visually, it features a clean light grey powder-coated finish arranged in three equal width columns and two equal height tiers, creating six fully independent, evenly sized compartments suited for individual user assignment. Each door integrates a flush recessed chrome-plated steel pull handle, a top-mounted transparent PVC card slot for user labels, and lower punched louvered vents, with a rsed folded steel plinth at the base that lifts the unit clear of floor surfaces. Constructed from cold-rolled sheet metal, the locker features zinc-plated steel butt hinges, zinc alloy keyed cam locks, and a durable epoxy-polyester powder coat finish. Full-height, full-depth internal dividers fully isolate each compartment, with no horizontal shelves inside individual storage spaces to accommodate upright storage of bags and folded clothing. Each compartment supports static loads of personal items, while the door hinges and lock mechanism are rated to withstand regular dly use, and the powder coat finish resists abrasion from routine contact and cleaning. Functional design details support long-term practical use: each door opens outward to allow full compartment access without blocking adjacent units when installed in continuous banks, integrated vents support r circulation to reduce moisture and odour buildup, independent keyed locks include two keys per compartment for private secure storage, and the freestanding base supports stable placement on level floors with optional wall anchoring available for high-traffic or high-risk zones. Units can be installed side-by-side in gap-free runs to suit large facility layouts. This locker is well suited for office staff locker rooms, educational facility changing areas, gym and sports facility changing rooms, back-of-house retl and public service staff areas, and temporary site accommodation including construction sites and temporary event spaces. When procuring this unit, stakeholders should note that units are available in flat pack format for efficient shipping, with assembly completed using basic hand tools. The recommended warranty structure covers the unit structure for 5 years and hardware components for 3 years, and final material gauges and finish options should be confirmed directly with the supplier prior to final order placement to align with project requirements and site aesthetic needs.
