Automatic mm / inch conversion · Core engineering specifications
| Overall dimensions | 900 x 400 x 1800 mm | |
|---|---|---|
| Individual compartment internal dimensions | 860 x 360 x 400 mm | |
| Single door panel dimensions | 420 x 400 mm | |
| Handle length | 120 mm | |
| Steel panel thickness (body/doors) | 0.8 mm | |
| Vertical gap between tier sections | 5 mm | |
| Base plinth height | 50 mm | |
| Door frame recess depth | 10 mm | |
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
| Unit net weight | 65 kg | |
|---|---|---|
| Per-compartment static load capacity | 30 kg | |
| Door open angle | 110 degrees | |
| Lock durability cycle rating | 10000 cycles | |
| Paint film adhesion rating | Grade 1 | |
| Recommended number of users | 40 users | |
| Hinge durability cycle rating | 50000 cycles | |
| Anti-tip load resistance | 500 N | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
| Cabinet body and door panels | 0.8mm thick cold-rolled steel sheet | |
|---|---|---|
| Exterior finish | Epoxy polyester powder coating, light grey matte | |
| Door handles | Brushed zinc alloy pull handles | |
| Lock hardware | Zinc alloy keyed cam locks | |
| Door hinges | 0.6mm thick steel concealed internal hinges | |
| Internal shelf structure | Fixed integral steel compartment dividers | |
| Inter-tier connection hardware | Zinc-plated steel bolt fasteners | |
| Label holders | Transparent plastic label slots | |
| Door edge trim | Integral formed steel return edge | |
| Back panel | 0.8mm thick cold-rolled steel sheet, spot-welded to cabinet carcass | |
| Exterior and interior finish | Epoxy polyester powder coating, light grey matte, 80 micron dry film thickness | |
| Internal compartment structure | Fixed integral 0.8mm steel dividers forming 4 separate enclosed tiers |
Adjustment / rotation / tilt / mobility / storage features
| Independent compartment locking | Each tier's double-door set locks via a single keyed cam lock on the right door, securing both doors of the tier when locked | |
|---|---|---|
| Knock-down assembly | Cabinet ships as four separate stacked sections that are bolted together on site, reducing shipping volume | |
| Door swing operation | Each door opens outward via internal concealed hinges to a full 110 degree angle, with no protruding external hinges to avoid snagging | |
| Label identification | Each compartment includes a clear plastic label holder for inserting content or user identification tags | |
| Smooth handle operation | Recessed pull handles provide a firm grip for opening doors without protruding beyond the cabinet front face, reducing impact risk in high-traffic areas | |
| Floor-standing stability | Raised flat base distributes weight evenly across the floor, no wall anchoring required for standard stationary storage use | |
| Corrosion resistant surface | Powder coated finish resists scratches, rust and common office cleaning chemicals for long service life in indoor environments | |
| Key lock cylinder diameter | 18 mm | |
| Flush handle operation | 120mm recessed pull handles provide a firm grip for opening doors without protruding beyond the cabinet front face, reducing impact risk in high-traffic walkways | |
| Fixed compartment storage | Each tier provides a single fixed 860x360x400mm enclosed storage space with no adjustable shelves, suited for standard archival file box storage | |
| Cable / Vent Opening Reference | If fitted, 80 mm diameter |
Verified carton / gross weight / assembly / loading data
| Number of packages | 4 | |
|---|---|---|
| Individual package dimensions | 950 x 450 x 490 mm | |
| Total gross shipping weight | 72 kg | |
| Total shipping volume (CBM) | 0.84 cbm | |
| On-site assembly time | 45 minutes | |
| 20ft GP container loading capacity | 52 units | |
| 40ft GP container loading capacity | 124 units | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split |
Recommended spaces / users / usage modes
| General office storage | Suitable for administrative departments to store archived documents, files, and general office supplies, with separate lockable compartments for different teams | |
|---|---|---|
| Factory and workshop storage | Applicable for production facilities to store personal protective equipment, maintenance tools, and operational records, with durable steel construction resistant to daily wear | |
| Educational facility storage | Ideal for schools and training centers to store teaching materials, student records, and classroom supplies in administrative areas or staff rooms | |
| Healthcare facility storage | Suitable for clinic and hospital administrative areas to store patient forms, medical supply stock and office consumables, with easy-to-clean smooth surface | |
| Changing room auxiliary storage | Can be used in staff changing areas to store personal belongings, work uniforms and personal items for shift workers | |
| Archive room storage | Appropriate for back-of-house archive rooms to store categorized paper records across multiple tiers, providing high density storage within a small footprint | |
| Healthcare facility administrative storage | Suitable for clinic and hospital back-office areas to store patient forms, office consumables and non-clinical supply stock, with non-porous smooth powder coat surface compatible with regular disinfectant wiping | |
| Staff changing room auxiliary storage | Can be used in employee changing areas to store personal belongings, work uniforms and shift handover items for frontline staff |
European market access and chemical requirements
| EN 14073-2:2004 | Office furniture - Storage furniture - Part 2: Safety requirements | |
|---|---|---|
| EN 14074:2004 | Office furniture - Tables and storage furniture - Test methods for the determination of strength and durability |
US and Canada office-furniture standards
Standards applicable to China-market projects
| GB/T 3327-2016 | Metal office furniture - General technical requirements | |
|---|---|---|
| GB/T 13667.1-2015 | Steel office furniture - Part 1: Storage cabinets | |
| GB 18584-2001 | Indoor decorating and refurbishing materials - Limit of harmful substances of wood based furniture |
This product must meet the following technical requirements: 1. GB/T 3327-2016: Metal office furniture - General technical requirements; 2. GB/T 13667.1-2015: Steel office furniture - Part 1: Storage cabinets; 3. GB 18584-2001: Indoor decorating and refurbishing materials - Limit of harmful substances of wood based furniture; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
Export data is generated from the current published product record.
Directly download an English report in metric or imperial units.
Download all product information and parameter modules in English.
English title, specifications, materials, standards and purchasing fields.
Prepare customs description, material, usage, dimensions and declaration elements.

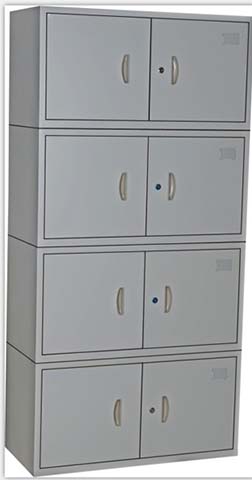

Open Export ToolThe 4-Tier 8-Door Steel Lockable Storage Cabinet (model SC-STL-4T8D-1800) is an unbranded, full-height freestanding storage solution with a clean, utilitarian light grey matte visual profile. Its form consists of four evenly stacked vertical tiers, each fitted with two equal-width doors, creating a symmetrical, streamlined front elevation. A rsed base plinth lifts the lowest compartment off the floor, and thin horizontal seams between tiers mark its knock-down sectional construction. Recessed door frames, flush-mounted brushed metal pull handles, and transparent plastic label holders positioned on each right-hand door create a smooth, snag-free exterior suited to high-traffic areas, with no protruding external hardware. The cabinet is constructed from cold-rolled steel, finished in an epoxy polyester powder coating that delivers a uniform, non-porous, scratch and corrosion-resistant surface compatible with regular cleaning and sanitization. Body and door panels use 0.8mm steel, with integral formed steel return edges on doors for added rigidity and safety, concealed internal steel hinges, zinc alloy keyed cam locks, and zinc-plated steel bolt fasteners to secure stacked sections during assembly. Each tier forms a single fixed, enclosed storage compartment with no adjustable shelves, separated by integral steel dividers, and a spot-welded steel back panel creates a fully enclosed carcass. The unit stands freely on its flat base for stationary use, with wall anchor brackets included to resist forward tipping when fully loaded. Each tier’s double-door assembly locks independently via a single cam lock, securing both doors to provide private, separated storage for different users or teams. Doors swing outward to a full 110-degree angle for unobstructed access, and built-in label holders support easy identification of compartment contents. The fixed internal compartments are sized to hold standard archival file boxes, office supplies, personal items, or operational materials, with each compartment rated for evenly distributed static load suitable for document and general supply storage. Flush, recessed handles reduce impact risk in busy walkways, and the durable powder coat finish resists rust and common cleaning chemicals for long-term indoor use. This cabinet is well suited to a broad range of commercial and residential-adjacent spaces, including general office administrative areas for shared team document storage, factory and workshop settings for personal protective equipment and maintenance tool storage, educational facility staff rooms and administrative wings for teaching materials and records, healthcare back-office areas for forms and non-clinical supplies, staff changing rooms for personal belongings and uniforms, and dedicated archive rooms for high-density categorized record storage that maximizes vertical space within a compact footprint. For procurement, note the cabinet ships in knock-down sections to reduce shipping volume, with on-site assembly required to bolt tiers together, attach hardware, and level the unit. The configuration supports department-level shared storage, with independent compartments suited to segmented access for different teams or user groups. Wall anchoring is recommended for high-traffic or accessible installations to leverage the included anti-tip hardware, and the smooth, non-porous finish supports routine sanitization protocols for hygiene-sensitive environments.
