Automatic mm / inch conversion · Core engineering specifications
| Overall external dimensions | 900 x 400 x 650 mm | |
|---|---|---|
| Cabinet side panel thickness | 0.8 mm | |
| Door frame thickness | 1.0 mm | |
| Frosted glass panel thickness | 5 mm | |
| Adjustable shelf thickness | 0.7 mm | |
| Individual shelf usable width | 390 mm | |
| Shelf usable depth | 360 mm | |
| Clear height per storage compartment (shelf position 1) | 260 mm | |
| Clear height per storage compartment (shelf position 2) | 260 mm | |
| Shelf adjustment hole spacing | 32 mm | |
| Handle length | 100 mm | |
| Cabinet carcass panel thickness | 0.8 mm | |
| Cabinet back panel thickness | 0.6 mm | |
| Sliding door frame thickness | 1.0 mm | |
| Clear glass door panel thickness | 5 mm | |
| Individual compartment usable width | 420 mm |
Net weight / load capacity / users / durability
| Product net weight | 22 kg | |
|---|---|---|
| Static load per adjustable shelf | 30 kg | |
| Total cabinet static load capacity | 80 kg | |
| Wall mounting fastener required load rating per bracket | 35 kg | |
| Sliding door cycle durability | 20000 open/close cycles | |
| Lock cycle durability | 10000 lock/unlock cycles | |
| Number of standard adjustable shelf positions | 6 | |
| Recommended maximum stored item depth | 350 mm | |
| Required load rating per wall mounting fastener | 40 kg | |
| Cam lock cycle durability | 10000 lock/unlock cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
| Main cabinet body | 0.8mm thick cold-rolled steel, epoxy-polyester powder coated light grey finish | |
|---|---|---|
| Sliding door frames | 1.0mm thick cold-rolled steel, matching powder coated finish | |
| Door panels | 5mm thick frosted semi-opaque tempered glass | |
| Adjustable shelves | 0.7mm thick cold-rolled steel, matching powder coated finish | |
| Internal shelf uprights | 1.2mm thick perforated cold-rolled steel | |
| Door handles | Brushed nickel finished zinc alloy pull handles | |
| Central lock | Zinc alloy cam lock with 2 supplied keys | |
| Sliding door tracks | Galvanized cold-rolled steel top and bottom tracks | |
| Shelf support clips | Zinc plated steel shelf pegs | |
| Wall mounting brackets | 2.0mm thick powder coated steel brackets | |
| Main cabinet carcass | 0.8mm thick cold-rolled steel, epoxy-polyester powder coated light grey matte finish | |
| Cabinet back panel | 0.6mm thick cold-rolled steel, matching powder coated finish |
Adjustment / rotation / tilt / mobility / storage features

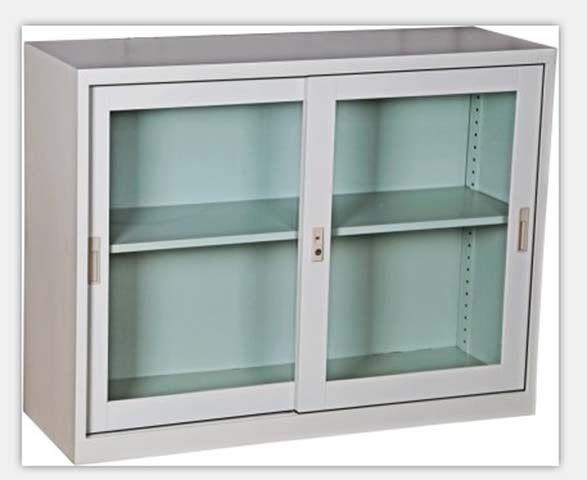

| Sliding door operation | Two horizontally sliding glass doors open along top and bottom tracks, eliminating external swing clearance required for hinged doors | |
|---|---|---|
| Central locking system | Single key cam lock secures both doors simultaneously when locked, restricting unauthorized access to stored contents | |
| Adjustable shelf positioning | One full-width split adjustable shelf can be repositioned at 32mm increments across 6 height positions to accommodate items of varying heights | |
| Wall-mounted installation | Cabinet is designed for fixed wall mounting via 4 mounting points on rear panel, saving floor space in work areas | |
| Semi-transparent content visibility | Frosted glass doors allow quick visual inventory checks without opening doors, while obscuring fine details of stored items for a neat appearance | |
| Integrated pull handles | Recessed-style pull handles on each door edge provide grip for easy sliding of doors without protruding into walkway space | |
| Shelf locking | Steel support pegs prevent shelves from tipping or dislodging when loaded, ensuring stable storage of documents or supplies | |
| Scratch resistant exterior | Powder coated exterior surface resists everyday scuffs and stains from office use, allowing easy cleaning with a damp cloth | |
| Lock cylinder diameter | 20 mm | |
| Central locking mechanism | Single key-operated cam lock extends a 12mm steel bolt to secure both sliding doors simultaneously, preventing unauthorized access to stored contents | |
| Transparent content visibility | Clear tempered glass doors allow 100% unobstructed visual inventory checks without door operation, while fully containing stored items to prevent dust accumulation | |
| Integrated flush pull handles | Vertical flush-fit pull handles mounted on each door outer edge provide 20mm grip depth for easy door sliding without protruding into walkway or access space |
Verified carton / gross weight / assembly / loading data
| Number of shipping cartons | 1 | |
|---|---|---|
| Shipping carton dimensions | 950 x 450 x 700 mm | |
| Gross shipping weight | 25 kg | |
| Shipping volume per unit | 0.30 CBM | |
| Required assembly time | 15 minutes | |
| 20ft GP container loading quantity | 210 units | |
| 40ft HQ container loading quantity | 520 units | |
| Shipping carton external dimensions | 950 x 450 x 700 mm | |
| Gross shipping weight per unit | 28 kg | |
| Required on-site assembly time | 20 minutes |
Recommended spaces / users / usage modes
| Medical clinic and laboratory storage | Used to store sterile supplies, small instruments and consumables; easy-clean steel surface and lockable doors meet clinical storage requirements | |
|---|---|---|
| Utility and workshop storage | Mounted on garage or workshop walls to store small tools, parts and maintenance supplies; durable steel construction resists wear from daily use | |
| Education facility storage | Installed in classrooms or staff rooms to store teaching materials, first aid supplies and administrative documents; lockable design prevents unauthorized access by students | |
| Food service back-of-house storage | Mounted in commercial kitchen prep areas to store disposable supplies, utensils and documentation; smooth powder coated finish meets easy cleaning requirements | |
| Small business retail storage | Used in retail back rooms to store small inventory items, packaging supplies and transaction documents; frosted doors keep stored items out of customer sight | |
| General office storage | Mounted above office workstations or in copy rooms to store documents, office supplies and reference materials; clear glass doors allow quick location of items while lockable design secures confidential materials | |
| Workshop and utility room storage | Mounted on garage or maintenance facility walls to store small hand tools, fasteners and maintenance parts; durable steel construction resists wear from daily industrial use, and wall mounting keeps supplies off work surfaces | |
| Retail backroom storage | Used in retail stock rooms to store small inventory items, packaging supplies and transaction paperwork; wall-mounted design saves valuable floor space, and clear glass doors prevent the need to open doors to locate stored items |
EU Market Access Requirements* EN Standards
| EN 14073-2:2004 | Applicable European standard for office storage furniture, specifying safety and structural performance requirements for wall-mounted storage units | |
|---|---|---|
| EN 12150-1:2015 | Applicable standard for thermally toughened soda lime silicate glass used in furniture, defining safety and performance requirements for door glass panels |
Standards applicable to China-market projects
| GB/T 3327-2017 | Applicable standard for metal office storage furniture, defining dimensional tolerances, structural stability and finish quality requirements for fixed wall cabinets | |
|---|---|---|
| GB/T 17657-2013 | Applicable standard for surface finish performance testing, covering coating adhesion, abrasion resistance and corrosion resistance for metal furniture surfaces | |
| GB 15763.2-2005 | Applicable safety standard for tempered glass used in furniture, requiring impact resistance and safe breakage characteristics for glass door panels |
This product must meet the following technical requirements: 1. GB/T 3327-2017: Applicable standard for metal office storage furniture, defining dimensional tolerances, structural stability and finish quality requirements for fixed wall cabinets; 2. GB/T 17657-2013: Applicable standard for surface finish performance testing, covering coating adhesion, abrasion resistance and corrosion resistance for metal furniture surfaces; 3. GB 15763.2-2005: Applicable safety standard for tempered glass used in furniture, requiring impact resistance and safe breakage characteristics for glass door panels; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
