Automatic mm / inch conversion · Core engineering specifications
| Overall dimensions | 900 x 500 x 1850 mm | |
|---|---|---|
| Single door width | 430 mm | |
| Door thickness | 20 mm | |
| Internal compartment width per door | 420 mm | |
| Internal compartment depth | 470 mm | |
| Internal compartment height | 1790 mm | |
| Ventilation slot height | 150 mm | |
| Handle length | 120 mm | |
| Card holder size | 80 x 50 mm | |
| Base foot height | 20 mm | |
| Door panel profile thickness | 20 mm | |
| Single compartment clear internal width | 420 mm | |
| Single compartment clear internal depth | 470 mm | |
| Single compartment clear internal height | 1790 mm | |
| Door edge clearance gap | 2 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role |
Net weight / load capacity / users / durability
| Unit net weight range | 45 kg | |
|---|---|---|
| Static load per compartment | 50 kg | |
| Door hinge cycle rating | 50000 open/close cycles | |
| Key lock differ count | 200 unique key combinations | |
| Adjustable foot leveling range | 10 mm | |
| Recommended maximum user count | 2 users | |
| Uniform static load per full-height compartment | 50 kg | |
| Door hinge cycle durability | 50000 open/close cycles | |
| Key lock unique combination count | 200 | |
| Leveling foot maximum height adjustment | 10 mm |
Core acceptance fields · Panels / hardware / frame / upholstery
| Main body panels | 0.8mm thick cold-rolled steel plate | |
|---|---|---|
| Door panels | 1.0mm thick cold-rolled steel plate | |
| Surface finish | Epoxy polyester powder coating, light grey RAL 7035 | |
| Door hinges | 1.5mm thick galvanized steel, 3 hinges per door | |
| Locks | Zinc alloy keyed cam lock, 2 keys per lock | |
| Handles | Brushed stainless steel recessed pull handle | |
| Card holders | Transparent ABS plastic label slot | |
| Ventilation grilles | Integral louvered steel slots pressed into door panel | |
| Leveling feet | Reinforced nylon adjustable foot with steel threaded insert | |
| Internal hardware | Zinc plated steel screws and connecting brackets | |
| Lock assemblies | Zinc alloy keyed cam lock, 2 numbered keys per lock | |
| Pull handles | Brushed stainless steel recessed pull, inset flush with door surface |
Adjustment / rotation / tilt / mobility / storage features
| Compartment layout | 2 equal full-height vertical storage compartments, separated by a fixed central steel divider | |
|---|---|---|
| Locking mechanism | Independent key-operated cam lock per door, secures door at closed position | |
| Door operation | Hinged doors open 180 degrees outward from center frame, held in position by hinge friction | |
| Ventilation function | 6 horizontal louvered slots per door at lower section, allows air circulation to prevent odour buildup in stored items | |
| User identification | Recessed card holder at upper section of each door, accepts standard 80x50mm paper or plastic name cards | |
| Floor leveling | 4 adjustable screw feet at base corners, compensate for uneven floor surfaces up to 10mm height difference | |
| Assembly structure | Knock-down flat pack design, assembled with bolted connections without on-site welding | |
| Optional shelf compatibility | Pre-punched holes inside each compartment support adding 1 adjustable steel shelf at desired height | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
Verified carton / gross weight / assembly / loading data
| Number of packages | 1 carton | |
|---|---|---|
| Packed carton dimensions | 1870 x 920 x 120 mm | |
| Gross weight per package | 50 kg | |
| Packaging volume CBM | 0.21 CBM | |
| assembly time | 40 minutes | |
| 20ft container loading quantity | 130 units | |
| 40ft HQ container loading quantity | 320 units | |
| Packaging volume | 0.21 CBM | |
| Packaging protection | 5mm thick corrugated carton with expanded polystyrene corner protectors for all panels, engineering not supplier measured | |
| Reference Package Count | 1 set / 2 cartons |
Recommended spaces / users / usage modes
| Office staff changing area | Suitable for open plan offices to provide 2 individual locked storage spaces for employees to store personal items, bags and workwear | |
|---|---|---|
| Factory and workshop welfare area | Durable steel construction suitable for industrial environments, provides secure storage for worker uniforms and personal protective equipment | |
| School and educational facility | Suitable for student dormitories, campus gyms and classroom areas to provide assigned secure storage for students | |
| Gym and sports facility | Ventilated design suitable for changing rooms, allows air flow for stored sportswear and athletic equipment | |
| Public service facility | Suitable for hospitals, libraries and government service halls to provide temporary or permanent secure storage for visitors and staff | |
| Recommended placement | Position against solid wall, maintain 100mm clearance from rear wall to allow air circulation, level all feet before use | |
| Installation recommendation | Position against a solid load-bearing wall, maintain 100mm clearance from rear wall to support air circulation, adjust all leveling feet to eliminate wobble before loading items |
European market access and chemical requirements
| EN 14073-2:2004 | Applicable office storage furniture standard, specifies stability and strength requirements for free standing steel storage units | |
|---|---|---|
| EN 16121:2013 | Applicable non-domestic storage furniture standard, specifies safety, durability and ergonomic requirements for public and office areas | |
| EN 1023-2:2000 | Applicable office furniture screen and storage standard, specifies dimensional consistency and lock performance requirements |
US and Canada office-furniture standards
Standards applicable to China-market projects
| GB/T 3327-2016 | Applicable standard for metal furniture - Lockers, specifies dimensional tolerance, structural strength and coating quality requirements for acceptance | |
|---|---|---|
| GB 18584-2001 | Applicable indoor decoration material standard, limits formaldehyde and heavy metal content from surface coatings for indoor use | |
| GB/T 1732-1993 | Applicable coating performance standard, specifies minimum 50cm impact resistance for painted metal surfaces |
This product must meet the following technical requirements: 1. GB/T 3327-2016: Applicable standard for metal furniture - Lockers, specifies dimensional tolerance, structural strength and coating quality requirements for acceptance; 2. GB 18584-2001: Applicable indoor decoration material standard, limits formaldehyde and heavy metal content from surface coatings for indoor use; 3. GB/T 1732-1993: Applicable coating performance standard, specifies minimum 50cm impact resistance for painted metal surfaces; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
Export data is generated from the current published product record.
Directly download an English report in metric or imperial units.
Download all product information and parameter modules in English.
English title, specifications, materials, standards and purchasing fields.
Prepare customs description, material, usage, dimensions and declaration elements.

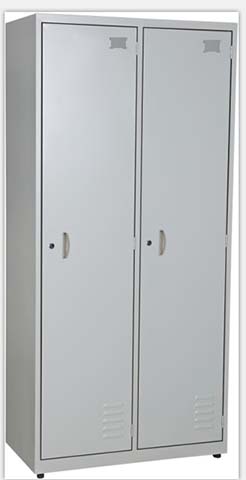

Open Export ToolDouble Door Steel Storage Locker, sheet metal.
