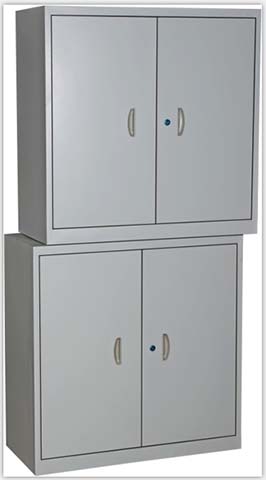

Product supplierSplit Double-Section 4-Door Lockable Steel Storage Cabinet, 0.6mm thick cold-rolled steel sheet
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 900 × 400 × 1800 mm | |
|---|---|---|
| Overall assembled dimensions | 900 x 400 x 1800 mm | |
| Upper cabinet section height | 850 mm | |
| Lower cabinet section height | 900 mm | |
| Base plinth height | 50 mm | |
| Single door width per pair | 440 mm | |
| Door panel thickness | 20 mm | |
| Internal shelf quantity per section | 2 pcs | |
| Handle length | 120 mm | |
| Keyhole diameter | 20 mm | |
| Internal usable depth | 370 mm | |
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Net product weight | 60 kg | |
|---|---|---|
| Static load per shelf | 40 kg | |
| Total maximum static load for full cabinet | 240 kg | |
| Lock mechanism rated cycle life | 10000 operations | |
| Door hinge rated cycle life | 50000 open/close cycles | |
| Recommended maximum stored file box count | 24 pcs | |
| Static load per adjustable shelf | 40 kg | |
| Cam lock rated cycle life | 10000 lock/unlock operations | |
| Drawer slide rated cycle life (if fitted) | 0 cycles | |
| Powder coating scratch resistance | 2H pencil hardness |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Main body panels | 0.6mm thick cold-rolled steel sheet | |
|---|---|---|
| Surface finish | Epoxy polyester powder coating, silver grey matte texture | |
| Door handles | Zinc alloy brushed nickel pull handles | |
| Lock sets | Zinc alloy keyed cam locks, 2 keys per lock | |
| Door hinges | Concealed cold-rolled steel butt hinges | |
| Internal shelves | 0.7mm thick cold-rolled steel, adjustable height on 32mm pitch holes | |
| Top and base panels | 0.8mm thick cold-rolled steel | |
| Corner joining hardware | Steel spot welds and M6 steel bolts | |
| Main carcass panels (side/top/front frame) | 0.6 mm thick cold-rolled steel sheet, formed with rolled safety edges, joined via spot welding and M6 steel bolts | |
| Rear cabinet panel (per section) | 0.5 mm thick cold-rolled steel sheet, spot-welded to internal frame rails | |
| Surface finish (all exterior/interior panels) | Epoxy polyester powder coating, silver grey matte finish, 80 micron coating thickness | |
| Door handles (per door) | Zinc alloy brushed nickel pull handle, secured with two steel mounting screws |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Independent section locking | Upper and lower compartments lock separately with individual keyed cam locks, restricting access to each section independently | |
|---|---|---|
| Adjustable shelf positioning | Internal shelves reposition in 32mm vertical increments along internal upright rails, allowing custom storage heights for items of different sizes | |
| Full-width door opening | Each pair of doors opens 180 degrees to provide unobstructed access to full internal compartment width, eliminating side access restrictions | |
| Stackable split design | Upper cabinet section mounts securely on top of lower cabinet to maximize vertical storage without requiring extra floor space, sections can be separated for flexible placement | |
| Smooth edge protection | All exposed panel edges have rolled safety edging to eliminate sharp metal edges, preventing user injury during use | |
| Anti-tip stability | Pre-drilled rear fixing points allow cabinet to be secured to wall surfaces, preventing forward tipping when fully loaded or when doors are open | |
| Independent compartment locking | Upper and lower 2-door sections are fitted with separate keyed cam locks, allowing restricted independent access to each compartment without unlocking the other | |
| Full 180-degree door opening | Each door opens 180 degrees via concealed steel butt hinges, providing unobstructed access to the full internal compartment width without blocking adjacent walkways | |
| Stackable split section design | Upper cabinet section mounts securely to the lower section via interlocking metal flanges and fixing bolts, maximizing vertical storage in 0.36 sqm of floor space; sections may be separated for standalone placement in different locations | |
| Rolled edge safety protection | All exposed steel panel edges feature 180-degree rolled hems, eliminating sharp cut edges to prevent user laceration during loading, unloading or cabinet adjustment | |
| Wall-mounted anti-tip security | Pre-drilled rear fixing points accept 2 steel anti-tip brackets to secure the full cabinet to wall surfaces, preventing forward tipping when doors are fully open or shelves are loaded with unevenly distributed weight | |
| Dust-resistant door seal | 1 mm thick PVC edge trim around door perimeters creates a light contact seal with the cabinet frame, reducing airborne dust ingress onto stored documents and supplies |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Number of shipping packages | 2 pcs | |
|---|---|---|
| Individual package dimensions (upper/lower sections) | 960 x 460 x 180 mm each | |
| Total packaged gross weight | 68 kg | |
| Total shipping volume (CBM) | 0.16 cbm | |
| assembly time | 60 minutes | |
| 20ft GP container loading quantity | 200 pcs | |
| 40ft HQ container loading quantity | 520 pcs | |
| Included installation hardware | 1 set | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Office document storage | Suitable for general offices, administrative departments and personnel filing areas to store A4 documents, file boxes and office supplies, with separate locking for confidential document storage | |
|---|---|---|
| Cleanroom and medical facility storage | Compatible with clinics, laboratories and clean room environments due to smooth non-porous steel surface that supports regular disinfection and cleaning | |
| Warehouse and workshop storage | Suitable for factory offices, maintenance workshops and warehouse stations to store tools, safety equipment and operational documents, with high load capacity for heavy items | |
| School and public institution use | Ideal for schools, government service centers and public facilities for secure storage of public documents, supplies and equipment, with durable anti-scratch finish for high-traffic use | |
| Home garage and utility storage | Suitable for home garages, utility rooms and basement storage to store tools, household supplies and archived documents, with lockable doors to prevent unauthorized access | |
| General office document storage | Suitable for open plan offices, administrative departments and HR filing areas to store A4 documents, lever arch files and office supplies, with independent locking sections for separate storage of confidential and general-access files | |
| Medical and clean facility storage | Suitable for clinic staff areas, laboratory support zones and clean room ancillary spaces, as non-porous powder coated steel surfaces support daily disinfection with 75% alcohol or quaternary ammonium cleaners without surface degradation | |
| Industrial workshop and warehouse storage | Suitable for factory offices, maintenance workshops and warehouse station areas to store hand tools, personal protective equipment and operational documentation, with steel construction resisting impact damage and abrasion from heavy use |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 14073-2:2004 | Applicable European standard for office storage furniture safety requirements, defining stability, strength and durability requirements for storage cabinets | |
|---|---|---|
| EN 1023-2:2000 | Applicable European standard for office furniture storage units performance requirements, specifying static load and cyclic load test methods | |
| EN 13722:2004 | Applicable standard for assessment of surface resistance to cold liquids for coated furniture surfaces, defining abrasion and stain resistance requirements |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3327-2017 | Applicable standard for metal office furniture general technical requirements, defining dimensional tolerance, structural strength and surface finish requirements for steel storage cabinets | |
|---|---|---|
| GB/T 13668-2015 | Applicable standard for steel filing cabinets, specifying load, lock performance and durability test methods for office steel storage units | |
| GB 18584-2001 | Applicable standard for indoor decorating and refurbishing materials - limit of harmful substances in furniture, specifying formaldehyde and heavy metal limits for finished furniture products |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3327-2017: Applicable standard for metal office furniture general technical requirements, defining dimensional tolerance, structural strength and surface finish requirements for steel storage cabinets; 2. GB/T 13668-2015: Applicable standard for steel filing cabinets, specifying load, lock performance and durability test methods for office steel storage units; 3. GB 18584-2001: Applicable standard for indoor decorating and refurbishing materials - limit of harmful substances in furniture, specifying formaldehyde and heavy metal limits for finished furniture products; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
