STL-LKR-24D-GRY

Code：B159SEV1
Request supplier quotes

24-Door Freestanding Steel Employee Locker with Ventilation and Label Holders Key Specifications 2026-08-05 17:14

Popularity: 7
Parameter Correction History (Public)
SubmittedFieldOriginal修改后参数Note / Status
No parameter correction records exist. If you spot inaccurate data, click the flag icon at the end of the corresponding row to submit feedback.

STL-LKR-24D-GRY

1 active supplier(s) >>
CNYUANTONGSupplierYear 1Company Profile
Product supplier24-Door Freestanding Steel Employee Locker with Ventilation and Label Holders，sheet metal
Contact the supplier for production scheduling and quotation.
Details >
PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

overall dimensions1200 x 350 x 1800 mm
column count4 columns
row count6 rows
ventilation perforation size5 mm
label holder size90 x 50 mm
handle length120 mm
side panel thickness0.8 mm
door panel thickness0.6 mm
base plinth height50 mm
Carcass Panel Thickness25 mm
Back Panel Thickness9 mm
Door / Drawer Front Thickness22 mm
Shelf Thickness25 mm
PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

total unit net weight55 kg
per-compartment static load capacity25 kg
door hinge cycle durability50000 open/close cycles
lock mechanism durability20000 key turn cycles
recommended user capacity24 users
per-compartment internal volume25 L
maximum user capacity24 users
per-compartment internal storage volume25 L
cabinet static lateral stability load200 N
powder coating scratch resistance2H pencil hardness
PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

cabinet main frame0.8mm thick cold-rolled steel
individual locker doors0.6mm thick cold-rolled steel
door handlesZinc alloy recessed pull handles
locking mechanismsKeyed cam locks
door hingesConcealed steel pin hinges
ventilation perforationsPunched 5mm round steel holes
label holdersTransparent recessed plastic card slots
surface finishEpoxy polyester powder coating
base plinth1.0mm thick cold-rolled steel
cabinet main carcass (side/top/bottom/back panels)0.8mm thick cold-rolled steel, welded box construction, epoxy polyester powder-coated light gray, with hemmed exposed edges to eliminate sharp edges
individual locker door panels0.6mm thick cold-rolled steel, single-piece formed construction, powder-coated to match carcass, with punched ventilation arrays and recessed hardware cutouts
internal compartment dividers and shelves0.6mm thick cold-rolled steel, welded to carcass frame at fixed positions, powder-coated to match carcass, no adjustable shelf positions visible
PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

individual locking storage24 independent lockable compartments, each with dedicated keyed cam lock, preventing unauthorized access to personal contents
ventilation16 punched ventilation holes per door, arranged in two vertical arrays to maintain air circulation inside each compartment and prevent musty odors
user identificationRecessed transparent label holder mounted above each handle, allowing insertion of printed name/number tags for easy locker assignment
door operationHinged doors swing outward 180 degrees, providing full unobstructed access to compartment interiors, with no protruding hardware when closed
freestanding installationSelf-supporting welded steel frame with leveler feet on base, suitable for direct placement on flat indoor floors without wall anchoring for standard use
storage versatilityIndividual compartments sized to hold small bags, work uniforms, footwear, personal electronics and daily work items for staff or students
surface maintenanceSmooth powder-coated surface resists common stains and scratches, can be cleaned with standard non-abrasive household or commercial cleaners
individual locker compartment width280 mm
individual locker compartment height280 mm
individual locker compartment depth320 mm
individual secure storage24 independent fixed-size lockable compartments, each fitted with a unique keyed cam lock, restricting access to assigned users only to secure personal contents
passive compartment ventilation16 punched 5mm round ventilation holes per door, arranged in dual vertical arrays to circulate air within closed compartments and prevent musty odor buildup for stored garments and footwear
PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

number of shipping cartons1 unit
shipping carton dimensions1250 x 400 x 1850 mm
gross shipping weight62 kg
shipping volume per unit0.93 CBM
assembly time30 minutes
20ft GP container loading quantity27 units
40ft GP container loading quantity58 units
Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package Dimensions2100× 700× 350 mm/carton according to carcass split
PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

factory employee changing rooms24 individual locking compartments provide dedicated storage for work clothes, PPE and personal items for production staff, with ventilation to maintain air quality for stored garments
office staff storage areasSuitable for open-plan office break rooms or office entry areas to store personal bags, outerwear and work accessories for employees, with clear label holders for easy assignment
educational facility locker baysAppropriate for schools, training centers and university dormitories to provide secure personal storage for students, with durable steel construction resisting daily heavy use
gym and fitness center changing areasVented compartments prevent odor buildup for stored workout gear and footwear, with keyed locks to secure personal valuables during exercise
hospital and clinic staff areasPowder-coated smooth steel surface is easy to sanitize, suitable for healthcare staff storage of uniforms and personal effects in clean facility environments
warehouse and logistics staff roomsDurable steel construction resists impact and heavy use for warehouse personnel, with raised base protecting contents from floor moisture in industrial spaces
manufacturing facility employee changing rooms24 individual locking compartments provide dedicated storage for work uniforms, PPE, work boots and personal items for production staff, with built-in ventilation to maintain air quality for stored workwear
open-plan office staff storage zonesSuitable for placement in office break rooms, entryways or back-of-house areas to store personal bags, outerwear, lunch boxes and work accessories for employees, with clear label holders for permanent or temporary locker assignment
STANDARD S1

EU EN Standards

European market access and chemical requirements

EN 14073-2:2004Office furniture - Storage furniture - Part 2: Safety requirements, applicable for structural stability and sharp edge safety verification
EN 14073-3:2004Office furniture - Storage furniture - Part 3: Test methods for stability and structural strength, applicable for load and durability test guidance
EN 1022:2018Domestic and non-domestic furniture - Seating stability test reference for adjacent placement stability evaluation
STANDARD S2

North America ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.9-2019Storage Furniture - Test methods and performance requirements, applicable for structural load, door cycle and lock durability acceptance for commercial use
STANDARD S3

China GB Standards

Standards applicable to China-market projects

GB/T 3327-2016Metal furniture general technical requirements, applicable for structural strength, dimensional tolerance and finish quality acceptance of this steel locker
GB/T 13668-2015Steel storage cabinets, applicable for locker door operation, lock performance and load capacity acceptance criteria
GB 18584-2001Indoor decoration and refurbishing materials - limit of harmful substances in furniture, applicable for formaldehyde and heavy metal content limits for powder coated surfaces
Standard Tender Description
This product must meet the following technical requirements:
1. GB/T 3327-2016: Metal furniture general technical requirements, applicable for structural strength, dimensional tolerance and finish quality acceptance of this steel locker;
2. GB/T 13668-2015: Steel storage cabinets, applicable for locker door operation, lock performance and load capacity acceptance criteria;
3. GB 18584-2001: Indoor decoration and refurbishing materials - limit of harmful substances in furniture, applicable for formaldehyde and heavy metal content limits for powder coated surfaces;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · STL-LKR-24D-GRY

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · STL-LKR-24D-GRY

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · STL-LKR-24D-GRYOpen Export Tool

Quick Actions

Post Inquiry

Product Overview & Construction Details

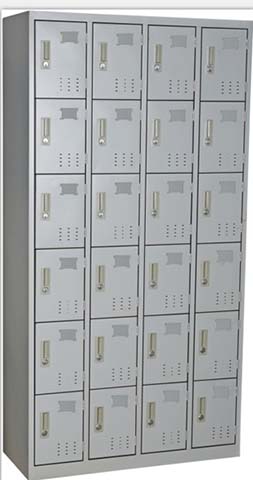

This 24-Door Freestanding Steel Employee Locker (model STL-LKR-24D-GRY) is an unbranded metal storage cabinet designed for high-traffic shared storage needs, presented in a uniform light gray powder-coated finish. Its front face is organized into four vertical columns and six horizontal rows, creating 24 equally sized, fixed-position individual compartments arranged in a neat, grid layout. A rsed welded base plinth lifts the cabinet off the floor, and recessed hardware ensures no protruding elements disrupt the cabinet’s smooth, streamlined silhouette. The cabinet is constructed from cold-rolled steel across its body, doors and structural frame, with welded box construction and hemmed exposed edges to eliminate sharp surfaces. Each compartment door is fitted with a chrome-plated zinc alloy recessed pull handle, a built-in keyed cam lock supplied with two keys per compartment, and concealed steel pin hinges that allow a full 180-degree outward swing for unobstructed interior access. Dual vertical arrays of punched round ventilation holes sit on the lower section of every door to support consistent r circulation, while a recessed transparent plastic label holder is positioned above each handle for user identification. The epoxy polyester powder coating delivers scratch resistance and anti-corrosion protection for long-term indoor use, and the rsed steel base shields stored contents from floor moisture and impact. Each lockable compartment offers dedicated, secure storage for assigned users, supporting up to 24 individual users at full capacity. The vented design prevents musty odor buildup for stored garments, footwear and personal effects, while the smooth, non-porous finish wipes clean easily with standard non-abrasive cleaners. The freestanding frame is self-supporting for placement on level indoor floors, with no wall anchoring required for standard use. This locker is well suited for a broad range of commercial and institutional spaces, including factory and warehouse staff changing rooms, open-plan office staff storage zones, school and training facility locker bays, gym and fitness center changing areas, and hospital or clinic staff storage areas, where its durable construction stands up to repeated dly use. For procurement, stakeholders should confirm final material gauges directly against the supplier bill of materials, as published structural thickness values represent standard category benchmarks rather than supplier-measured data. Shipping configurations may vary between fully and semi-knocked down formats, so teams should account for on-site assembly requirements when planning installation timelines and loading capacity for bulk orders.
