Automatic mm / inch conversion · Core engineering specifications
| Overall dimensions | 900 x 400 x 1800 mm | |
|---|---|---|
| Upper glass section internal height | 880 mm | |
| Lower solid section internal height | 820 mm | |
| Individual sliding door panel width | 425 mm | |
| Fixed upper glass shelf depth | 360 mm | |
| Door handle length | 100 mm | |
| Adjustable shelf adjustment hole pitch | 32 mm | |
| Base plinth height | 50 mm | |
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
| Product net weight | 65 kg | |
|---|---|---|
| Uniform shelf static load capacity | 50 kg | |
| Recommended storage user count | 15 users | |
| Door sliding cycle durability | 50000 cycles | |
| Surface corrosion resistance rating | Grade 10 | |
| Warranty period | 3 years | |
| Drawer slide (if fitted) cycle durability | 40000 cycles | |
| Hinge (if fitted) open cycle durability | 80000 cycles | |
| Maximum total cabinet static load | 200 kg | |
| Shelf Distributed Load | 30 kg/shelf |
Core acceptance fields · Panels / hardware / frame / upholstery
| Cabinet outer shell | 1.0mm thick 304 stainless steel with brushed #4 finish | |
|---|---|---|
| Upper door infill panels | 5mm thick frosted semi-opaque tempered glass | |
| Internal shelves | 0.8mm thick 304 stainless steel | |
| Door tracks | 1.2mm thick cold-rolled stainless steel | |
| Door handles | Recessed 304 stainless steel pull handles | |
| Lock mechanism | Zinc alloy cam lock with stainless steel cover | |
| Internal shelf support rails | Perforated 1.0mm stainless steel strips | |
| Base plinth | 1.2mm thick stainless steel fully welded construction | |
| Cabinet back panel | 0.7mm thick 304 stainless steel fully welded to carcass | |
| Shelf support clips | Stainless steel L-shaped support brackets | |
| Door sliding buffers | Nylon buffer pads fitted to track ends | |
| Seam sealant | Food-grade silicone sealant on all internal joints |
Adjustment / rotation / tilt / mobility / storage features

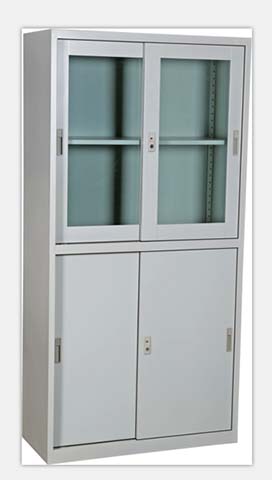

| Upper glass sliding door operation | Two horizontal sliding frosted glass panels, lockable with central key lock | |
|---|---|---|
| Lower solid sliding door operation | Two horizontal sliding solid stainless steel panels, lockable with separate central key lock | |
| Adjustable shelf configuration | 4 shelf positions on 32mm increments via perforated support rails | |
| Dual-zone independent locking | Separate key locks for upper and lower compartments | |
| Sealed edge construction | Continuously welded and polished internal seams | |
| Flush handle design | Recessed pull handles fitted to all four doors | |
| Elevated plinth clearance | 50mm clearance under cabinet base | |
| Central lock stile width | 50 mm | |
| Anti-tip securing capability | 2 pre-drilled 8mm anchor holes on rear panel, compatible with standard wall anchor hardware | |
| Fixed upper shelf function | 1 fixed welded stainless steel shelf in upper glass section, positioned at mid-height of upper compartment | |
| Shelf height adjustment range | 0 to 760 mm of clear vertical spacing between adjustable shelves | |
| Door slide operation force | Less than 15N force required to slide each door |
Verified carton / gross weight / assembly / loading data
| Number of shipping packages | 1 unit | |
|---|---|---|
| Shipping carton dimensions | 980 x 480 x 1880 mm | |
| Gross shipping weight | 78 kg | |
| Shipping volume per unit | 0.89 CBM | |
| On-site assembly time | 10 minutes | |
| 20ft GP container loading quantity | 24 units | |
| 40ft HQ container loading quantity | 60 units | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split |
Recommended spaces / users / usage modes
| Hospital ward supply storage | Suitable for ward treatment rooms to store sterile dressings, medical consumables and equipment | |
|---|---|---|
| Clinic examination room storage | Ideal for general practitioner and dental clinics to store patient supplies and documents | |
| Laboratory equipment storage | Suitable for clean laboratory environments to store glassware and non-corrosive lab supplies | |
| Clean room utility storage | Applicable for ISO Class 8 clean rooms to store garments and cleanroom supplies | |
| Pharmacy non-refrigerated storage | Can be used in pharmacy back-of-house to store over-the-counter supplies and packaging materials | |
| Veterinary clinic supply storage | Suitable for veterinary treatment areas to store animal care supplies and sterilized tools | |
| Commercial kitchen dry storage | Applicable for commercial kitchen back-of-house to store sealed dry goods and service supplies | |
| Workshop PPE storage | Suitable for industrial workshop clean zones to store personal protective equipment and safety supplies |
EU Market Access Requirements* EN Standards
| Applicable medical furniture safety standard | EN 14465:2004 Furniture - Storage furniture for healthcare facilities - Safety and performance requirements | |
|---|---|---|
| Applicable stainless steel surface standard | EN 10088:2014 Stainless steels - Technical delivery conditions for sheet/plate and strip of corrosion resisting steels for general purposes | |
| Applicable storage furniture stability standard | EN 14073:2004 Office furniture - Storage furniture - Part 2: Safety requirements | |
| Applicable furniture surface durability standard | EN 12720:2009 Furniture - Assessment of surface resistance to cold liquids |
Standards applicable to China-market projects
| Applicable structural standard | GB/T 3324General technical requirements for metal furniture | |
|---|---|---|
| Applicable medical furniture hygiene standard | GB 15982Hygienic standard for hospital disinfection | |
| Applicable safety standard for storage furniture | GB 28007Safety of children's furniture and storage furniture for general use | |
| Applicable stainless steel material standard | GB/T 3280Cold rolled stainless steel plate, sheet and strip |
This product must meet the following technical requirements: 1. Applicable structural standard: GB/T 3324General technical requirements for metal furniture; 2. Applicable medical furniture hygiene standard: GB 15982Hygienic standard for hospital disinfection; 3. Applicable safety standard for storage furniture: GB 28007Safety of children's furniture and storage furniture for general use; 4. Applicable stainless steel material standard: GB/T 3280Cold rolled stainless steel plate, sheet and strip; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
